IMV DB-2012 Data Management Software for Cardvibro AIR 2

IMV DB-2012 Data Management Software for Cardvibro AIR 2

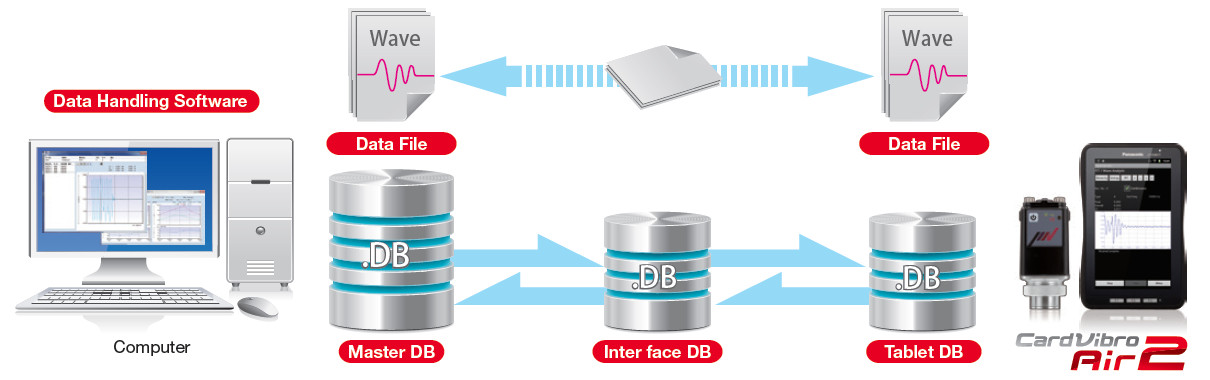

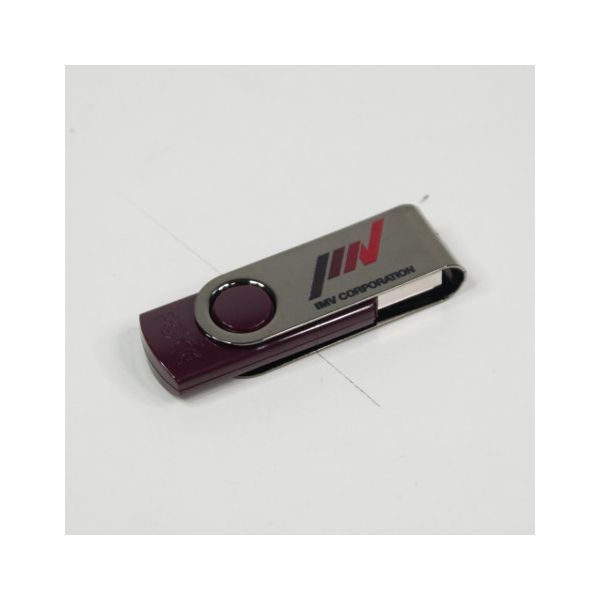

Management Software DB-2012 is a software to manage the measured data practically on the P.C. The Data are transferred through USB to P.C. using SQ Lite as data base. With the data acquired by CardVibro Air 2, it is able to manage and display Trend Plots, FFT Plots and Waveform.

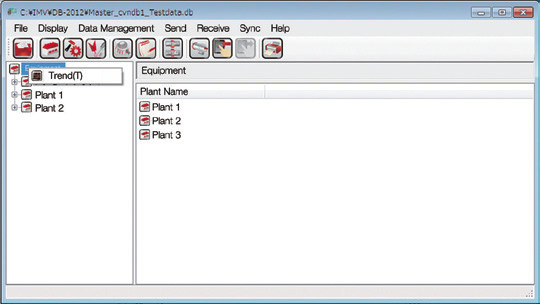

	Measurement Spots Management Data are managed for every machinery as generator or pump separately. Comment on each measurement spot can be input and displayed.

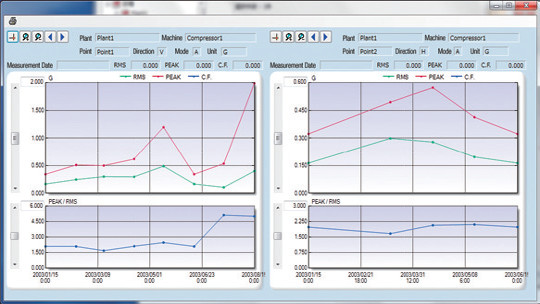

	Trend Graph Trend Plot of Over All Value (OA Value) *Simultaneous display of Maximum 6 screens.

Waveform Display Function

FFT Analysis Function

Requirements

• OS: Windows XP SP3, Windows 7
• Display resolution: More than 800 ×600 dots
• Interface: USB
• Software: Microsoft Excel 2010 is necessary to use printer function.
