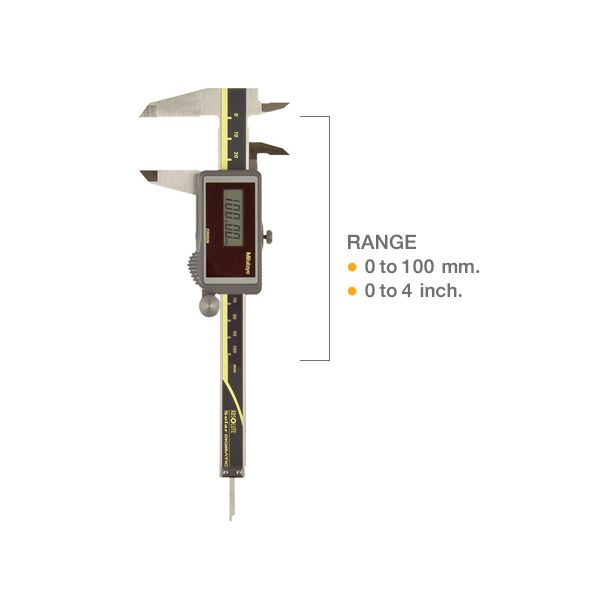

Mitutoyo M-500-443 ABSOLUTE Solar Caliper (0 - 100mm)

SKU
M-500-443
Out of stock

M-500-443 ABSOLUTE Solar Caliper
Range 0 to 100mm
For Outside, Inside Diameter and Depth Measure
Can be used continuously above 60lux ambient illumination
Mitutoyo, Japan

Mitutoyo M-500-443 ABSOLUTE Solar Caliper Series

For Outside, Inside Diameter and Depth Measure
Range 0 to 100mm
Accuracy  ±0.02mm
Resolution 0.01mm
Depth bar ø1.9mm rod
Can be adjust by roller thumb
LCD Display
Can be used continuously above 60lux ambient illumination
ยี่ห้อ Mitutoyo, Japan



Dimention Absolute Solar Caliper Mitutoyo 500 Series

Dimention and mass Range L A B C
DIMENSIONS AND MASS 0 - 100 mm 182 40 21 16.5
0 - 150 mm 233 40 21 16.5
0 - 200 mm 290 50 24.5 20



Specifications Mitutoyo M-500 Absolute Solar Caliper Series (with thumb roller)

Model Range Accuracy Graduation Remarks
Metric
M-500-443 0 - 100mm ±0.02mm 0.01mm Ø1.9mm rod
M-500-453* 0 - 100mm ±0.02mm 0.01mm Ø1.9mm rod
M-500-444 0 - 150mm ±0.02mm 0.01mm Blade
M-500-454* 0 - 150mm ±0.02mm 0.01mm Blade
M-500-445 0 - 200mm ±0.02mm 0.01mm Blade
M-500-455 0 - 200mm ±0.02mm 0.01mm Blade
Inch/Metric
M-500-463 0 - 4 inch ±.001 inch 0.0005 inch Ø3/40 inch rod
M-500-473 0 - 4 inch ±.001 inch 0.0005 inch Ø3/40 inch rod
M-500-464 0 - 6 inch ±.001 inch 0.0005 inch Blade
M-500-474 0 - 6 inch ±.001 inch 0.0005 inch Blade
M-500-465 0 - 8 inch ±.001 inch 0.0005 inch Blade
M-500-475 0 - 8 inch ±.001 inch 0.0005 inch Blade

*without SPC data output

SKUM-500-443
Weight0.000000
Dimension0
ManufacturerMitutoyo
Data loggerNo
Maximum Range100mm
Type of CaliperDigital Caliper
Resolution 0.01mm
Measurement Range0 to 100mm
Other FunctionNo
Power SupplyNo Battery needed, use solar power
Water resistanceNo
Sensor Output InterfaceNo
Accuracy±0.02mm
