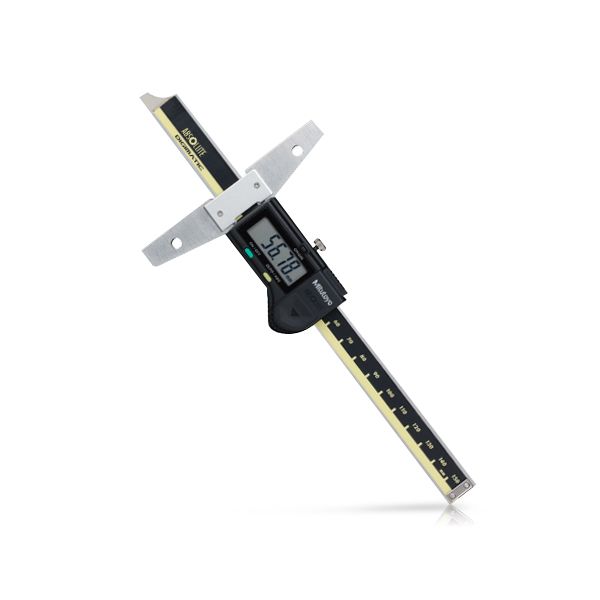

Mitutoyo M-571-202-30 ABSOLUTE Digimatic Depth Gage (0 - 200mm)

SKU
M-571-202-30
Out of stock

Measuring Range: 0 - 200mm
Enables stable depth measurement with a resolution of 0.01mm.
Sliding operation of models are smooth and comfortable.
Battery: SR44 ×1
Mitutoyo, Japan

Mitutoyo M-571-202-30 ABSOLUTE Digimatic Depth Gage

Enables stable depth measurement with a resolution of 0.01mm.
Sliding operation of models are smooth and comfortable.
Function Zero-setting, Auto Power on/off, SPC Data output
Coolant proof models achieve IP67 protection level.
LCD Display
Battery: SR44 ×1
ยี่ห้อ Mitutoyo, Japan

Measuring Range: 0 - 200mm
Resolution: 0.01mm
Accuray: ±0.02mm
Repeatability: 0.01mm
Battery life: 5 years

Dimention Mitutoyo M-571 ABSOLUTE Digimatic Depth Gage Series

M-571 Dimension M-571 Dimension
M-571 Dimension Range L Base Thickness
0 - 150mm / 0 - 6" 237 6
0 - 200mm / 0 - 8" 287 6
0 - 300mm / 0 - 12" 403 (404) 6 (6.3)
0 - 450mm / 0 - 18" 635 10
0 - 600mm / 0 - 24" 785 10
0 - 750mm / 0 - 30" 935 10
0 - 1000mm / 0 - 40" 1200 10



Specifications M-571 ABSOLUTE Digimatic Depth Gage Series

Metric
Model Range Resolution Accuracy Repeatability Base (W × T) Mass(g)
M-571-201-30 0 - 150mm 0.01mm ±0.02mm 0.01mm    100 × 6mm 192
M-571-202-30 0 - 200mm 212
M-571-203-30 0 - 300mm ±0.03mm 310
M-571-204-10 0 - 450mm ±0.05mm 250 × 10mm 1270
M-571-205-10 0 - 600mm 1400
M-571-206-10 0 - 750mm ±0.06mm 1530
M-571-207-10 0 - 1000mm ±0.07mm 1760
M-571-251-10** 0 - 150mm ±0.02mm 100 × 6mm 199
M-571-252-10** 0 - 200mm 219
M-571-253-10** 0 - 300mm ±0.03mm 100 × 6.3mm 320
Inch/Metric
Model Range Resolution Accuracy Repeatability Base (W × T) Mass(g)
M-571-211-30 0 - 6" / 0 - 150mm 0.0005" / 0.01mm ±0.001" 0.0005" / 0.01mm 3.93" × .23" 192
M-571-212-30 0 - 8" / 0 - 200mm 212
M-571-213-10 0 - 12" / 0 - 300mm ±0.0015" 310
M-571-214-10 0 - 18" / 0 - 450mm ±0.002" 9.8" × .39" 1270
M-571-215-10 0 - 24" / 0 - 600mm 1400
M-571-216-10 0 - 30" / 0 - 750mm ±0.0025" 1530
M-571-217-10 0 - 40" / 0 - 1000mm 1760
M-571-261-10** 0 - 6" / 0 - 150mm ±0.001" 3.93" × .23" 199
M-571-262-10** 0 - 8" / 0 - 200mm 219
M-571-263-10** 0 - 12" / 0 - 300mm ±0.0015" 320

**Coolant Proof models

SKUM-571-202-30
Weight212.000000
Dimension0
ManufacturerMitutoyo
Your Rating

อุปกรณ์เสริม (แยกจำหน่าย)

wider extension base .(up to 450mm range models)

SPC data output
