Shimadzu UX Series Electronic Balances

SKU

ATX-ATY Series

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Out of stock

Weighing takes just 0.7–1.2 seconds (S type)
Easy Connection No software needed
Adjust the balance to match the environment via Backlight LCD
UniBloc Technology
Offers Fast, Stable and Accurate Results

Categories: Digital Scales, Shimadzu

Shimadzu UX Series Electronic Balances

UniBloc
Build-in Clock
Window direct communicatin Function
RS232C Interface
Piece Counting Mode
Analog Bar Graph Display
Specific Gravity Measurement
Standard Below-weigh Hook
Interval Timer output
Auto Print
Checkweighting
Backlight
All-metal Housing

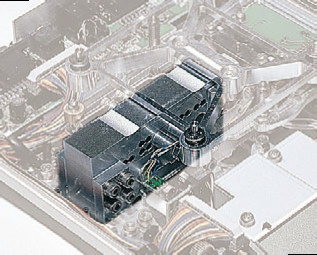

UniBloc

UniBloc Technology

UniBloc one-piece force cell technology replaces the core mechanism of a high-precision balance with a single aluminum alloy block. This provides a number of advantages, introducing fast response, high stability, and a long operational life.

UX Specification

UX Series Model	UX420H	UX620H	UX4200H	UX6200H
Capacity	420g	620g	4200g	6200g
Minimum Display	0.001g		0.01g
Calibration Range with External Weights	100-420g	100-620g	1000-4200g	1000-6200g
Repeatability (σ) (g)	≤0.001		≤0.01
Linearity (g)	±0.002		±0.02
Response Time (s)	1.5-2.5
Ambient Temperature and Humidity	5-40°C 30-85% (No Condensation)
Temperature Coefficient Sensitivity (ppm/°C) (10-30°C)	±3
Pan Size (mm) approx.	108×105		170×180
Main Body Dimensions (mm) approx.	190W×317D×78H
Weight (kg) approx.	2.7		2.9
Display	LCD with backlight
Power Requirements	DC, 10 to 15.5V, 500mA
Data l/O	RS-232C
Features	WindowsDirect GLP/GMP/ISO conformance Analog display, % display, PCS, User unit, Animal weighing, Specific gravity measurement S/W, Checkweighing

More Information

SKU	ATX-ATY Series
Dimension	depend by model
Manufacturer	Shimadzu
Water resistance	No
Function for Scale	Connects to Computer, Counting scale
Resolution	No
Measurement Range	No
Other Function	No
Power Supply	DC, 10 to 15.5V, 500mA
Accuracy	±
