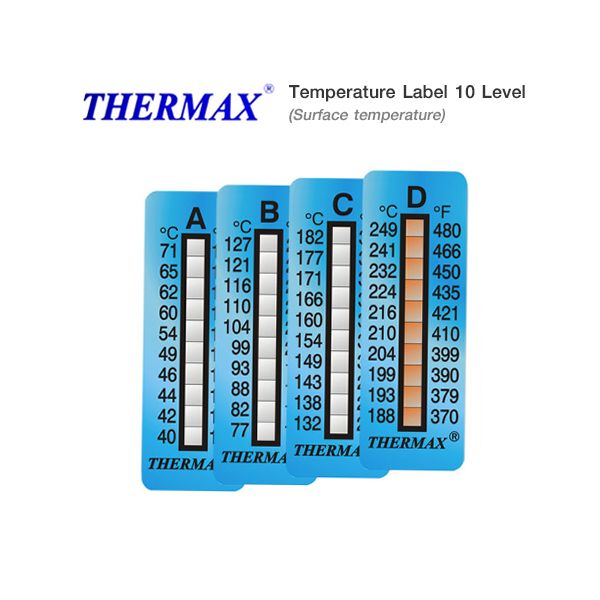

THERMAX 10 Series Temperature Label 10 Level Strips

THERMAX 10 Series Temperature Label 10 Level Strips

 THERMAX 10 Series Temperature Label 10 Level Strips Irreversible Labels, a fast simple temperature monitoring system based on proprietary color change technology. Indicating the maximum temperature achieved. It can be used in numerous applications such as Food, Medical, Automotive, Aerospace and Engineering.

SPECIFICATION

Model
Temperature Range	°C	°F	°C	°F	°C	°F	°C	°F
	40	104	77	171	132	270	188	370
	42	108	82	180	138	280	193	379
	44	111	88	190	143	289	199	390
	46	115	93	199	149	300	204	399
	49	120	99	210	154	309	210	410
	54	129	104	219	160	320	216	421
	60	140	110	230	166	331	224	435
	62	144	116	241	171	340	232	450
	65	149	121	250	177	351	241	466
	71	160	127	261	182	360	249	480
Accuracy	± 1 °C		± 1 °C (< 100 °C), ± 1.5 °C		± 1.5 °C (100 °C to 154 °C), ± 4 °C		± 4 °C
Color Change	Silver to Black		Silver to Black		Silver to Black		Silver to Black
Type	Vertical, Self adhesive		Vertical, Self Adhesive		Vertical, Self Adhesive		Vertical, Self Adhesive
Adhesive	Acrylic		Acrylic		Modified Acrylic		Modified Acrylic
Film Layer	Polyester		Polyester		Kaladex		Polyimide
Dimension	51 x 18mm
