THERMAX 5 Series Temperature Label 5 Level Strips

SKU
THERMAX-5 Series

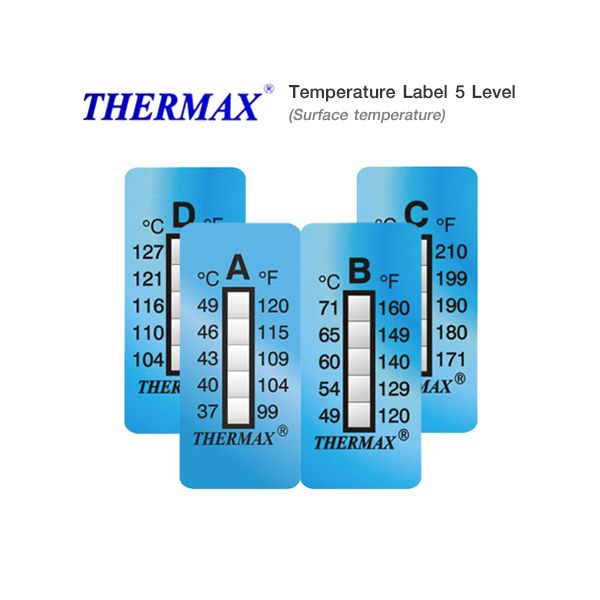

main product photo

Out of stock

Temperature Label 5 Level Strips
Available with a wide range of temperatures
High Accuracy, Immediate Response
Oil and Water Resistant
Indicating the maximum temperature achieved

0
Categories: Thermo Seal & Temperature Label, THERMAX
thermax

THERMAX 5 Series Temperature Label 5 Level Strips

 THERMAX 5 Series Temperature Label 5 Level Strips Irreversible Labels, a fast simple temperature monitoring system based on proprietary color change technology. Indicating the maximum temperature achieved. It can be used in numerous applications such as Food, Medical, Automotive, Aerospace and Engineering.

THERMAX 5 Series Range

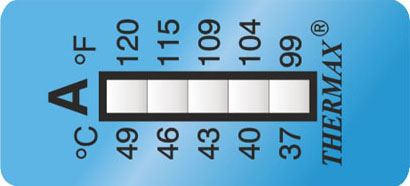

A °C 37 40 43 46 49
°F 99 104 109 115 120

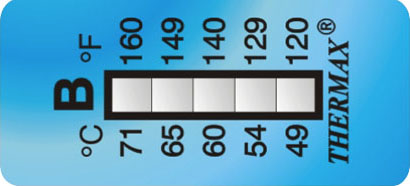

B °C 49 54 60 65 71
°F 120 129 140 149 160

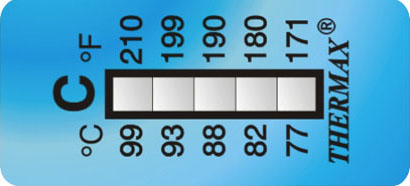

C °C 77 82 88 93 99
°F 171 180 190 199 210

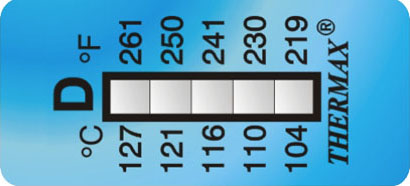

D °C 104 110 116 121 127
°F 219 230 241 250 261

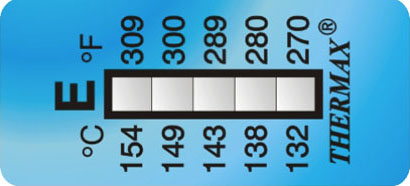

E °C 132 138 143 149 154
°F 270 280 289 300 309

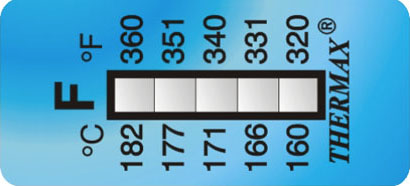

F °C 160 166 171 177 182
°F 320 331 340 351 360

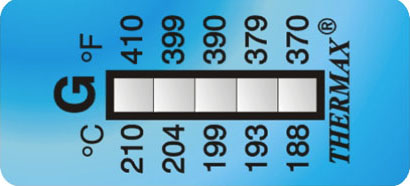

G °C 188 193 199 204 210
°F 370 379 390 399 410

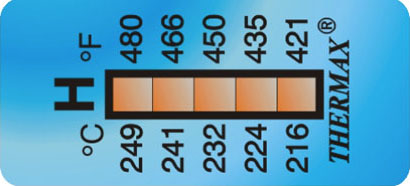

H °C 216 224 232 241 249
°F 421 435 450 466 480

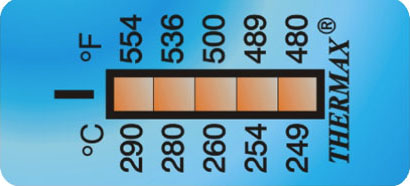

I °C 249 254 260 280 290
°F 480 489 500 536 554

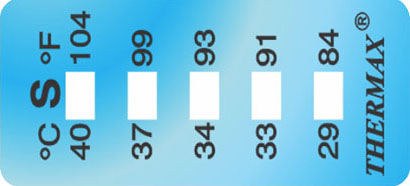

S °C 29 33 34 37 40
°F 84 91 93 99 104

SPECIFICATION

Film Layer Polyester (A, B, C, D, E), Kaladex (F), Polyimide (G, H, I, S)
Adhesive Acrylic (A, B, C, D, E), Modified Acrylic (F, G, H, I, S)
Accuracy ± 1 °C (< 100 °C), ± 1.5 °C (100 to 154 °C), ± 4 °C
Color Change Silver to Black
Type Horizontal, Self Adhesive
Dimension 39 x 18mm
SKUTHERMAX-5 Series
Dimension39 x 18mm
Manufacturerthermax
Measurement objectSurface Temperature
Other FunctionNo
Power SupplyNone
Water resistanceNo
Temperature Range29 to 290 ºC
Accuracy± 1 °C (< 100 °C), ± 1.5 °C (100 °C to 154 °C), ± 4 °C
