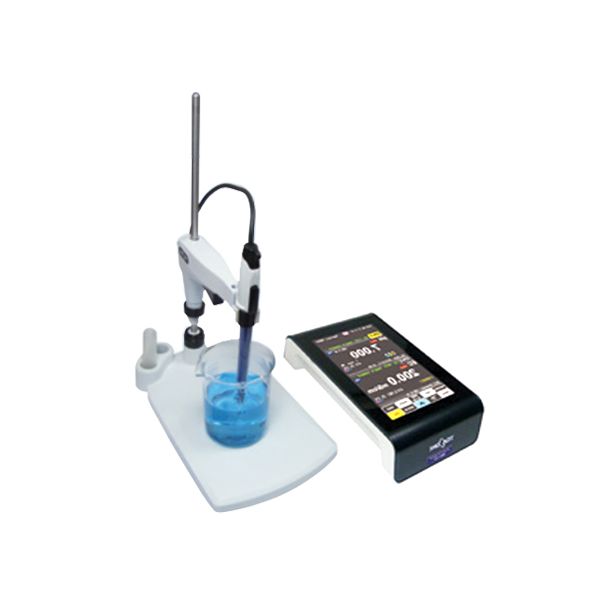

TOA DKK CM-41X Benchtop Multi-function Water Quality Meter

CM-41X is Benchtop Multi-function Water Quality Meter with new model, Large Touchscreen Display Easy-to-read. Various Display Functions can be read value or graphic with Vertical and Horizon screen switch convenient to read in any angle. Measurement: Conductivity | Resistivity | Salinity | TDS

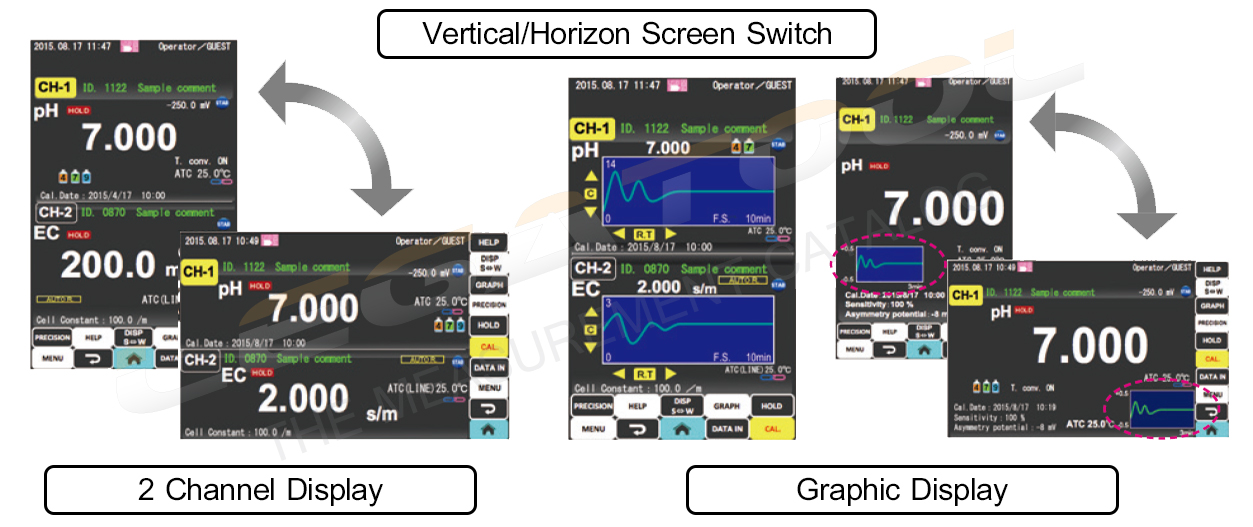

Various Display Functions

SPECIFICATION

Measurement Method		Conductivity : AC 2-Electrode Method Temperature : Thermistor Resistor
Conductivity Measuring Frequency		80Hz/3kHz Auto-selection
Display Unit		Customized LCD
Measurement Item / Range	Conductivity	100 μS/m to 10 S/m
	Resistivity	100 μS/m to 10 S/m
	Salinity	100 μS/m to 10 S/m
	TDS	100 μS/m to 10 S/m
	Temperature	0.0 to 100.0°C
Display Range	Conductivity (Manual/Auto range switching) (Depends on the cell)	0.0 to 200.0 μS/m (0.000 to 2.000 µS/cm) 0.000 to 2.000 mS/m (0.00 to 20.00 µS/cm) 0.00 to 20.00 mS/m (0.0 to 200.0 µS/cm) 0.0 to 200.0 mS/m (0.000 to 2.000 mS/cm) 0.000 to 2.000 S/m (0.00 to 20.00 mS/cm) 0.00 to 20.00 S/m (0.0 to 200.0 mS/cm) 0.0 to 200.0 S/m (0.000 to 2.000 S/cm) SI unit (S/m) and conventional unit (S/cm) selectable
	Resistivity (Manual/Auto range switch) (Depends on the cell)	0.005 to 2.000 Ω･m (0.5 to 200.0 Ω･cm) 0.00 to 20.00 Ω･m (0.000 to 2.000 kΩ･cm) 00.0 to 200.0 Ω･m (0.00 to 20.00 kΩ･cm) 0.000 to 2.000 kΩ･m (0.0 to 200.0 kΩ･cm) 0.00 to 20.00 kΩ･m (0.000 to 2.000 MΩ･cm) 00.0 to 200.0 kΩ･m (0.00 to 20.00 MΩ･cm) 0.000 to 2.000 MΩ･m (0.0 to 200.0 MΩ･cm) 0.00 to 20.00 MΩ･m (0 to 2000 MΩ･cm) SI unit (Ω･m) and conventional unit (Ω･cm) selectable
	Salinity	0.00 to 4.04% (NaCl) 0.00 to 42.40 psu (PSS : Sea water salinity)
	TDS (Manual/Auto range switch)	0 to 99.99 mg/L 0 to 999.9 mg/L 0 to 9.999 g/L 0 to 99.99 g/L 0 to 999.9 g/L
	Temperature	-5.0 to 110.0°C
Repeatability (Main body unit)	Conductivity	± 0.5% FS
	Resistivity	± 0.5% FS
	Salinity	± 0.5% FS
	TDS	± 0.5% FS
	Temperature	within ± 0.2°C
Temperature Compensation	Auto	0 to 100.0°C
Temperature Compensation	Manual	0 to 100.0°C
Data Memory		1000 data
PC Interface		RS-232C (External Printer), USB Peripheral
Power Requirement		Battery AA × 4 or USB power feeding (No charging function).
Dimensions / Weight		130 x 60 x 230mm / 700g
