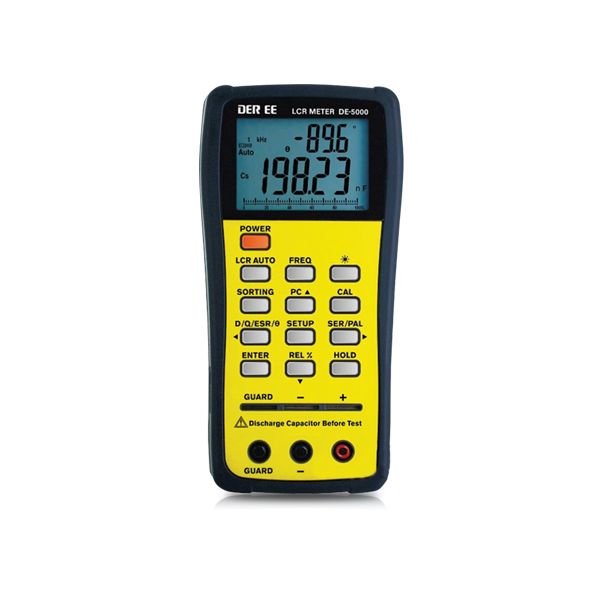

DEREE DE-5000 Smart LCR Meter

Smart LCR Meter model Universal

Measurment range

L - Inductance

• 20.000 uH, 200.00 uH, 2000.00 uH, 20.000 mH, 200.00 mH, 2000.00 mH, 20.00 H, 200.0 H, 2000.0 H
  **uH = Micro Henry, mH = Milli Henry

C - Capacitance

• 200.00 pF, 2000.0 pF, 20.000 nF, 200.00 nF, 2000.0 nF, 20.000 uF, 200.00 uF, 2000.0 uF, 20.00 mF
  **pF = Pico Farad, uF = Micro Farad, nF = nano Farad

R - Resistance

• 20.000Ω, 200.00Ω, 20.000 KΩ, 200.00KΩ, 2.0000 MΩ, 20.000 MΩ, 200.00 MΩ

LCD Backlight (20000/ 2000 counts)
Frequency range 100 Hz/120 Hz/1 KHz/10 KHz/100 KHz test

Function

• L/ C/ R check
• Ls/Lp/Cs/Cp/ Rs/ Rp/ DCR with D/Q/θ /ESR selector
• Relative mode
• Series/ Parallel Modes
• Sorting function

Auto power off
Battery warning system
Dimension 188x95x52 mm

Included Accessories

• Alligator test lead case(TL-21)
• AC/ DC Adaptor
• Guard Line (TL-23)
• Instruction manual
• DC 9V Battery
