GDS-1104B Digital Oscilloscope

SKU
GDS-1104B

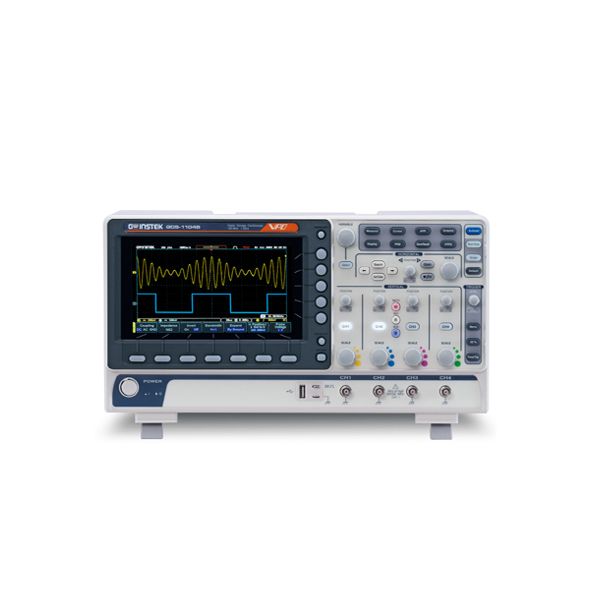

main product photo
Out of stock

100 MHz Bandwidth with 4 Channels
1GSa/s maximum sampling rate
10M maximum memory depth for each channel
7” 800 x 480 WVGA LCD display
256 color gradient display function to strengthen waveform performance
1Mpts FFT frequency domain signal display
Zero Key function for horizontal time, vertical voltage and triggering
Compact and innovative exterior design

สอบถาม
Categories: Oscilloscopes, GW Instek, Type-5 have stock
GW_Instek

GDS-1104B Digital Oscilloscope

100MHz digital storage oscilloscopes with 7” WVGA color LCD display and the 256 color gradient display.
The maximum sampling rate for each single channel is 1GSa/s, and the memory depth is 10Mpts per channel independently. The waveform update rate is 50,000wfms/s
The GDS-1104B oscilloscope also provides OpenWave connection software, which allows users to conduct waveform observation and data storage controlled by remote PC.
Moreover, the innovative exterior design and compact design also bring much convenience to users.

Vertical
Channels
Bandwidth DC
Rise Time
Bandwidth Limit		 4
~ 100MHz (–3dB)
3.5ns
20MHz
Vertical Sensitivity Resolution 8 bit :1mV~10V/div
Input Coupling AC, DC, GND
Input Impedance 1MΩ// 16pF approx
DC Gain Accuracy ±3%
Polarity Normal & Invert
Maximum Input Voltage 300Vrms, CAT I(300Vrms CAT II with GTP‐070B‐ 4/100B‐4 10:1 probe)
Offset Position Range 1mV/div : ±1.25V
2mV/div ~ 100mV/div : ±2.5V
200mV/div ~ 10V/div : ±125V
Waveform Signal Process  Plus, ‐, ×, ÷, FFT, FFTrms, User Defined Expression
FFT: Spectral magnitude. Set FFT Vertical Scale to
Linear RMS or dBV RMS, and FFT Window to
Rectangular, Hamming, Hanning, or Blackman‐
Harris
Trigger
Source CH1, CH2, CH3*, CH4*, Line, EXT
***four channel models only
**two channel models only
Trigger Mode Auto (supports Roll Mode for 100 ms/div and slower), Normal, Single Sequence
Trigger Type Edge, Pulse Width, Video, Pulse Runt, Rise & Fall,
Horizontal
Time base Range
ROLL:
Pre‐trigger
Post‐trigger
Timebase Accuracy
Real Time Sample Rate
Record Length
Acquisition Mode
Peak Detection
Average		 5ns/div ~ 100s/div (1‐2‐5 increments)
100ms/div ~ 100s/div
10 div maximum
2,000,000 div maximum
±50 ppm over any ≥ 1 ms time interval
1GSa/s max.
Max. 10Mpts
Normal, Average, Peak Detect, Single
2nS (typical)
selectable from 2 to 256
Cursors and Measurement
Cursors Amplitude, Time, Gating available; Unit: Seconds(s), Hz(1/s), Phase(degree), Ration(%)
Automatic Measurement 36 sets: Pk‐Pk, Max, Min, Amplitude, High, Low, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Frequency, Period, RiseTime, FallTime,
+Width, ‐Width, Duty Cycle, +Pulses, ‐Pulses, +Edges, ‐Edges, FRR, FRF, FFR, FFF, LRR, LRF,
LFR, LFF, Phase
 Control Panel Function
 Autoset Single‐button, automatic setup of all channels for vertical, horizontal and trigger systems, with undo
Save Setup 20set
 Dimensions/ Weight 380 x 208 x 127.3mm/ 2.8kg
SKUGDS-1104B
Weight2800.000000
Dimension380 x 208 x 127.3 mm
ManufacturerGW_Instek
Data loggerYes
Resolution 50,000 waveforms per second
Measurement Range1mV/div : ±1.25V 2mV/div ~ 100mV/div : ±2.5V 200mV/div ~ 10V/div : ±125V
Other Function
  • 100 MHz Bandwidth with 4 Channels
  • 1GSa/s maximum sampling rate
  • 10M maximum memory depth for each channel
  • 7” 800 x 480 WVGA LCD display
  • 256 color gradient display function to strengthen waveform performance
  • 1Mpts FFT frequency domain signal display
  • Zero Key function for horizontal time, vertical voltage and triggering
  • Compact and innovative exterior design
Power SupplyAC 100V ~ 240V
Water resistanceNo
Sensor Output Interface5V Max/10mA TTL open collector output
AccuracyDC Gain ±3%
Your Rating

PDF Download PDF Download    Manual Download Manual Download

Accessories Include

  • GTP-100B-4 100MHz Passive Probe. Suitable

Optional Accessories

  • GTL-110 Test lead, BNC to BNC heads
  • GTL-246 USB cable, USB2.0 A-B type cable 4P, 1200mm
  • GRA-426 Rack Adapter Panel
