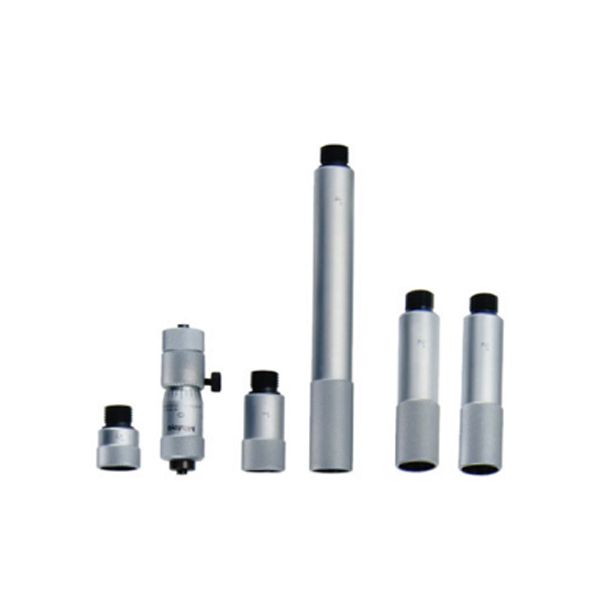

Mitutoyo M-137-205 Tubular Inside Micrometer (50 - 1500mm)

SKU
M-137-205
main product photo
Out of stock

Tubular Inside Micrometer
Range Measuring 50 - 1500mm
The sleeve is rotated to adjust the index line position when setting to a length standard.
Measuring faces without catbide tip.
Wide range of inside measurements possible by combinning extension rods and anvils with the micrometer head.
Mitutoyo, Japan

Category: Mitutoyo
Mitutoyo

Mitutoyo M-137-205 Tubular Inside Micrometer

Range Measuring 50 - 1500mm
Graduation 0.01mm
Accuracy ± (3 + number of rods + maximum measurement length / 50) μm
Measuring faces without catbide tip.
Total of rods 10 pcs.

  • 13mm  ×1
  • 25mm  ×1
  • 50mm  ×2
  • 100mm  ×1
  • 200mm  ×3
  • 300mm  ×2

Mitutoyo, Japan

Dimention Mitutoyo M-137 Tubular Inside Micrometer Series

Mitutoyo-Series 137 Mitutoyo-Series 137



Specifications Mitutoyo M-137 Tubular Inside Micrometer Series

Metric
Model Range Graduation Micrometer head stroke Extension rods
Plain faces Carbide-tipped faces Qty Size
M-137-011 M-137-013 50 - 63mm 0.01mm 13mm - -
M-137-201 M-137-206 50 - 150mm 3 13, 25, 50mm
M-137-202 M-137-207 50 - 300mm 5 13, 25, 50 (2 pcs.), 100mm
M-137-203 M-137-208 50 - 500mm 6 13, 25, 50 (2 pcs.), 100, 200mm
M-137-204 M-137-209 50 - 1000mm 8 13, 25, 50 (2 pcs.), 100, 200 (2 pcs.), 300mm
M-137-205 M-137-210 50 - 1500mm 10 13, 25, 50 (2 pcs.), 100, 200 (3 pcs.), 300mm (2 pcs.)
Inch
Model Range Graduation Micrometer head stroke Extension rods
Plain faces Carbide-tipped faces Qty Size
M-137-012 M-137-014 2 - 2.5" .001" .5" - -
M-137-211 M-137-216 2 - 6" 3 .5", 1", 2"
M-137-212 M-137-217 2 - 12" 5 .5", 1", 2" (2 pcs.), 4"
M-137-213 M-137-218 2 - 20" 6 .5", 1", 2" (2 pcs.), 4", 8"
M-137-214 M-137-219 2 - 40" 8 .5", 1", 2" (2 pcs.), 4", 8" (2 pcs.), 12"
M-137-215 M-137-220 2 - 60" 10 .5", 1", 2", 4" (2 pcs.), 6", 8" (3 pcs.), 12" (2 pcs.)
SKUM-137-205
Weight0.000000
Dimension0
ManufacturerMitutoyo
Data loggerNo
Resolution

Graduation 0.01mm

Measurement Range50 - 1500mm
Other FunctionNo
Power SupplyNo Need
Water resistanceNo
Sensor Output InterfaceNo
Accuracy± (3 + number of rods + maximum measurement / 50) μm
