Mitutoyo M-160-110 Vernier Caliper (0 - 1500mm)

SKU
M-160-110

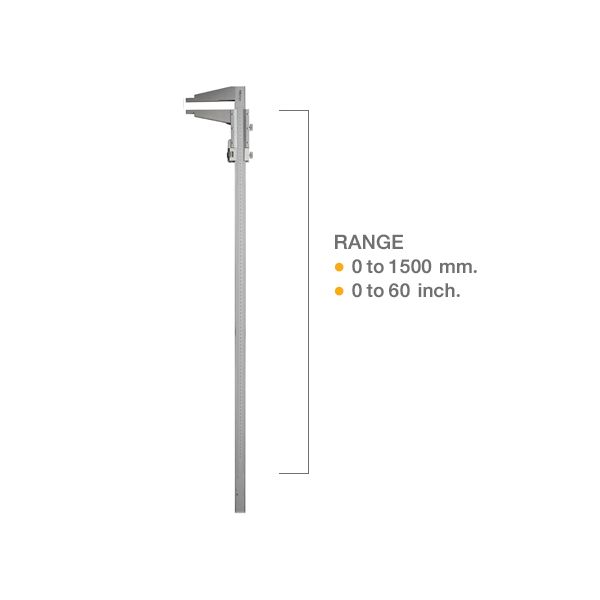

main product photo
Out of stock

M-160-110 Vernier Caliper with Nib Style Jaws
Range 0 - 1500mm
The jaws have radiused measuring faces for accurate ID measurement.
Fine Adjustment
Inside and outside measurement can be read directly from the upper and lower vernier scales
Mitutoyo, Japan

Category: Mitutoyo
Mitutoyo

Mitutoyo M-160-110 Vernier Caliper with Nib Style Jaws

Range 0 - 1500mm
The jaws have radiused measuring faces for accurate ID measurement.
Fine Adjustment
Inside and outside measurement can be read directly from the upper and lower vernier scales
Mitutoyo, Japan

Features Mitutoyo M-160 Vernier Caliper with Nib Style Jaws

ABSOLUTE_Digimetic_and_Vernier_Caliper_550_160 ABSOLUTE_Digimetic_and_Vernier_Caliper_550_160 M-160 Feature
Round surface of jaws Round surface of jaws ตัวอย่างการใช้งาน



Dimention Mitutoyo M-160 Vernier Caliper with Nib Style Jaws

Dimension Mass
M-160 Dimension
Range D E F H L M R S t
0 - 300mm / 0 - 12" 75 103 38 20 445 10 R5 12 3.8
0 - 450mm* 100 89 - 25 630 14.8 R10 18 6
0 - 450mm / 0 - 18" 112 51 R10 6
0 - 600mm* 100 89 - 25 780 14.8 R10 18 6
0 - 600mm / 0 - 24" 112 51 R10 6
0 - 1000mm* 140 111 - 32 1240 17 R10 24 8
0 - 1000mm / 0 - 40" 150 62.5 R10 8
0 - 1500mm* 180 129 - 32 1800 19 R10 30 8
0 - 1500mm / 0 - 60" 170 62.5 R10 8
0 - 2000mm* 180 129 - 40 2300 23 R10 30 12
0 - 2000mm / 0 - 80" 180 78 R10 12



Specifications Mitutoyo M-160 Vernier Caliper with Nib Style Jaws

Model Range* Accuracy Graduations Remarks
Metric  with inside measurement vernier scale
M-160-130 0 (20.1) - 450mm ±0.10mm 0.05mm Without fine adjustment
M-160-131 0 (20.1) - 600mm
M-160-132 0 (20.1) - 1000mm ±0.15mm
M-160-133 0 (20.1) - 1500mm ±0.22mm
M-160-134 0 (20.1) - 2000mm ±0.28mm
Metric  with inside measurement vernier scale
M-160-127 0 (10.1) - 300mm ±0.04mm 0.02mm With fine adjustment
M-160-128 0 (20.1) - 450mm ±0.05mm
M-160-101 0 (20.1) - 600mm ±0.05mm
M-160-104 0 (20.1) - 1000mm ±0.07mm
M-160-110 0 (20.1) - 1500mm ±0.10mm
M-160-113 0 (20.1) - 2000mm ±0.12mm
Metric / Inch  double scale
M-160-150 0 (10.1) - 300mm ±0.04mm  0.02mm / .001" +10mm / .394" to reading in inside measurement
M-160-151 0 (20.1) - 450mm ±0.05mm +20mm / .787" to reading in inside measurement
M-160-153 0 (20.1) - 600mm ±0.05mm
M-160-155 0 (20.1) - 1000mm ±0.07mm
M-160-157 0 (20.1) - 1500mm ±0.10mm
M-160-159 0 (20.1) - 2000mm ±0.12mm
Inch  with inside measurement vernier scale
M-160-124 0 (.304") - 12" ±.0015" .001" -
M-160-116 0 (.504") - 18" ±.002"
M-160-102 0 (.504") - 24"
M-160-105 0 (1.004") - 40" ±.003"
M-160-111 0 (1.004") - 60" ±.004"
M-160-114 0 (1.004") - 80" ±.005"
Inch / Metric double scale
M-160-125 0 (.304") - 12" ±.0015" .001" / 0.02mm +.3" / 7.62mm to reading in inside measurement
M-160-119 0 (.504") - 18" ±.002" +.5" / 12.7mm to reading in inside measurement
M-160-103 0 (.504") - 24"
M-160-106 0 (1.004") - 40" ±.003" +1" / 25.4mm to reading in inside measurement
M-160-112 0 (1.004") - 60" ±.004"
M-160-115 0 (1.004") - 80" ±.005"

*( ): Minimum dimension in ID measurement

SKUM-160-110
Weight0.000000
Dimension1800 x 220 x 6
ManufacturerMitutoyo
Data loggerNo
Maximum Range300mm and more
Type of CaliperVernier Caliper
Resolution 0.02mm
Measurement Range0 - 1500mm
Other Function
  • ตัวเลื่อนแบบรางง่ายในการปรับวัดค่า
  • ตัวหนีบแบบปลายโค้งมนเหมาะสำหรับวัดขนาดภายใน
  • การวัดค่าภายในและภายนอกสามารถอ่านค่าได้โดยตรงจากแถบเลื่อนบนและล่าง
Power Supply-
Water resistanceNo
Sensor Output InterfaceNo
Accuracy±0.10mm
