Mitutoyo M-160-150 Vernier Caliper (0 - 300mm, 0 - 12")

SKU
M-160-150

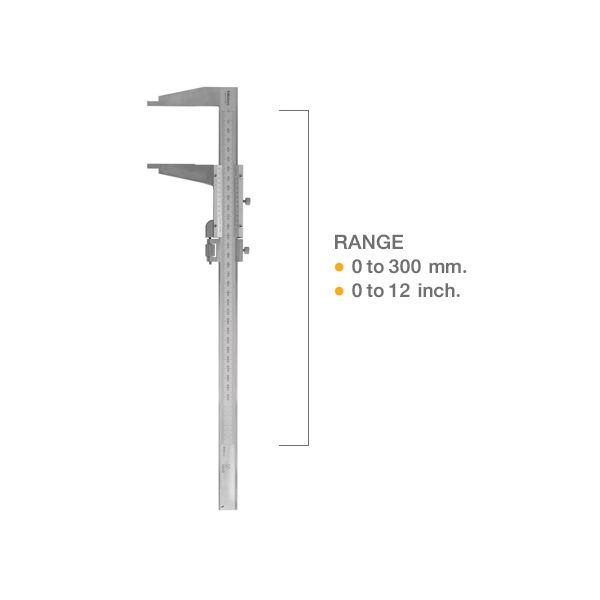

main product photo
Out of stock

M-160-150 Vernier Caliper with Nib Style Jaws
Range 0 - 300mm, 0 - 12"
The jaws have radiused measuring faces for accurate ID measurement.
Fine Adjustment
Inside and outside measurement can be read directly from the upper and lower vernier scales
Mitutoyo, Japan

Category: Mitutoyo
Mitutoyo

Mitutoyo M-160-150 Vernier Caliper with Nib Style Jaws

Range 0 - 300mm, 0 - 12"
The jaws have radiused measuring faces for accurate ID measurement.
Fine Adjustment
+10mm / .394" to reading in inside measurement
Inside and outside measurement can be read directly from the upper and lower vernier scales
Mitutoyo, Japan

Features Mitutoyo M-160 Vernier Caliper with Nib Style Jaws

ABSOLUTE_Digimetic_and_Vernier_Caliper_550_160 ABSOLUTE_Digimetic_and_Vernier_Caliper_550_160 M-160 Feature
Round surface of jaws Round surface of jaws ตัวอย่างการใช้งาน



Dimention Mitutoyo M-160 Vernier Caliper with Nib Style Jaws

Dimension Mass
M-160 Dimension
Range D E F H L M R S t
0 - 300mm / 0 - 12" 75 103 38 20 445 10 R5 12 3.8
0 - 450mm* 100 89 - 25 630 14.8 R10 18 6
0 - 450mm / 0 - 18" 112 51 R10 6
0 - 600mm* 100 89 - 25 780 14.8 R10 18 6
0 - 600mm / 0 - 24" 112 51 R10 6
0 - 1000mm* 140 111 - 32 1240 17 R10 24 8
0 - 1000mm / 0 - 40" 150 62.5 R10 8
0 - 1500mm* 180 129 - 32 1800 19 R10 30 8
0 - 1500mm / 0 - 60" 170 62.5 R10 8
0 - 2000mm* 180 129 - 40 2300 23 R10 30 12
0 - 2000mm / 0 - 80" 180 78 R10 12



Specifications Mitutoyo M-160 Vernier Caliper with Nib Style Jaws

Model Range* Accuracy Graduations Remarks
Metric  with inside measurement vernier scale
M-160-130 0 (20.1) - 450mm ±0.10mm 0.05mm Without fine adjustment
M-160-131 0 (20.1) - 600mm
M-160-132 0 (20.1) - 1000mm ±0.15mm
M-160-133 0 (20.1) - 1500mm ±0.22mm
M-160-134 0 (20.1) - 2000mm ±0.28mm
Metric  with inside measurement vernier scale
M-160-127 0 (10.1) - 300mm ±0.04mm 0.02mm With fine adjustment
M-160-128 0 (20.1) - 450mm ±0.05mm
M-160-101 0 (20.1) - 600mm ±0.05mm
M-160-104 0 (20.1) - 1000mm ±0.07mm
M-160-110 0 (20.1) - 1500mm ±0.10mm
M-160-113 0 (20.1) - 2000mm ±0.12mm
Metric / Inch  double scale
M-160-150 0 (10.1) - 300mm ±0.04mm  0.02mm / .001" +10mm / .394" to reading in inside measurement
M-160-151 0 (20.1) - 450mm ±0.05mm +20mm / .787" to reading in inside measurement
M-160-153 0 (20.1) - 600mm ±0.05mm
M-160-155 0 (20.1) - 1000mm ±0.07mm
M-160-157 0 (20.1) - 1500mm ±0.10mm
M-160-159 0 (20.1) - 2000mm ±0.12mm
Inch  with inside measurement vernier scale
M-160-124 0 (.304") - 12" ±.0015" .001" -
M-160-116 0 (.504") - 18" ±.002"
M-160-102 0 (.504") - 24"
M-160-105 0 (1.004") - 40" ±.003"
M-160-111 0 (1.004") - 60" ±.004"
M-160-114 0 (1.004") - 80" ±.005"
Inch / Metric double scale
M-160-125 0 (.304") - 12" ±.0015" .001" / 0.02mm +.3" / 7.62mm to reading in inside measurement
M-160-119 0 (.504") - 18" ±.002" +.5" / 12.7mm to reading in inside measurement
M-160-103 0 (.504") - 24"
M-160-106 0 (1.004") - 40" ±.003" +1" / 25.4mm to reading in inside measurement
M-160-112 0 (1.004") - 60" ±.004"
M-160-115 0 (1.004") - 80" ±.005"

*( ): Minimum dimension in ID measurement

SKUM-160-150
Weight0.000000
Dimension445 x 105 x 3.8
ManufacturerMitutoyo
Data loggerNo
Maximum Range300mm and more
Type of CaliperVernier Caliper
Resolution 0.02mm / .001"
Measurement Range0 - 300mm, 0 - 12"
Other Function
  • ตัวเลื่อนแบบรางง่ายในการปรับวัดค่า
  • ตัวหนีบแบบปลายโค้งมนเหมาะสำหรับวัดขนาดภายใน
  • การวัดค่าภายในและภายนอกสามารถอ่านค่าได้โดยตรงจากแถบเลื่อนบนและล่าง
Power Supply-
Water resistanceNo
Sensor Output InterfaceNo
Accuracy±0.04mm
