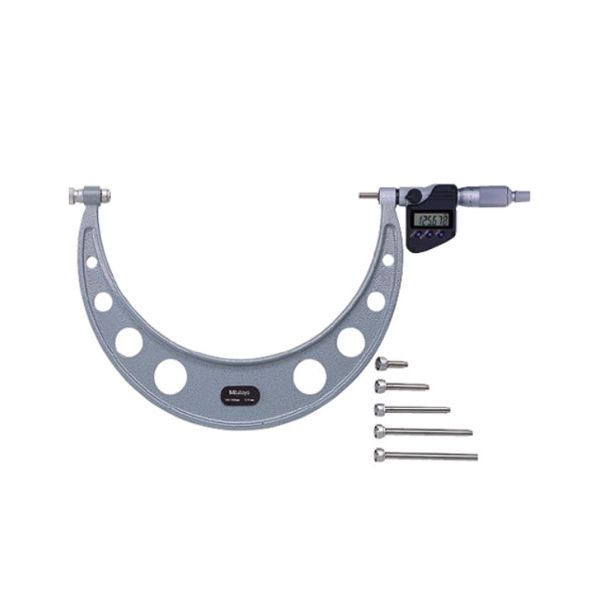

Mitutoyo M-340-521 Outside Micrometer with interchange anvils (400 - 500mm)

SKU
M-340-521
Out of stock

Wide measuring range with interchangeable anvils.
Measuring face of the spindle is carbide tipped.
IP65 water/dust protection
Equipped with Ratchet Stop for constant measuring force.
Mitutoyo, Japan

Mitutoyo M-340-521 Outside Micrometer with interchange anvils

Wide measuring range with interchangeable anvils.
Measuring range: 400 - 500mm
Resolution 0.001mm
Flatness: 1.3μm for models over 300mm
Parallelism: (2 + R/100)μm for models over 150mm , R = max. range (mm) Fraction rounded up
Accuracy: ±(4 + R/75)μm R = max. range (mm)
Measuring face of the spindle is carbide tipped
IP 65 water/dust protection
Equipped with Ratchet Stop for constant measuring force.
Mitutoyo, Japan

Dimensions Mitutoyo M-340 Outside Micrometer Series with interchange anvils

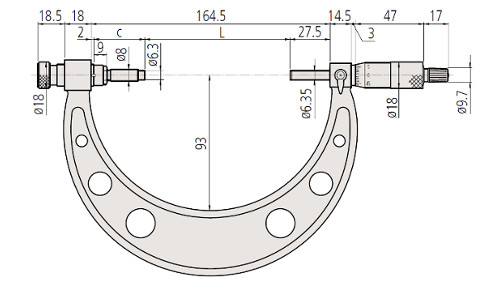

M-340 Dimension 0 - 400
Range L : Range (mm)
0 to 150mm models 0 - 25 25 - 50 50 - 75 75 - 100 100 - 125 125 - 150
150 to 300mm models 150 - 175 175 - 200 200 - 225 225 - 250 250 - 275 275 - 300
M-340 Dimension 400 - 1000
Range L : Range (mm) b d
300 to 400mm models 300 - 325 325 - 350 350 - 375 375 - 400 224 425
400 to 500mm models 400 - 425 425 - 450 450 - 475 475 - 500 273 525
500 to 600mm models 500 - 525 525 - 550 550 - 575 575 - 600 332 625
600 to 700mm models 600 - 625 625 - 650 650 - 675 675 - 700 382 725
700 to 800mm models 700 - 725 725 - 750 750 - 775 775 - 800 430 825
800 to 900mm models 800 - 825 825 - 850 850 - 875 875 - 900 480 925
900 to 1000mm models 900 - 925 925 - 950 950 - 975 975 - 1000 530 1025



Specifications Mitutoyo M-340 Outside Micrometer Series with interchange anvils

Metric
Order No. Range Resolution Interchangeable
anvils
Setting Standard Micrometer
head stroke
Qty Size
340-251-30 0 - 150mm 0.001mm 6pcs. 5 25 - 125mm 25mm
340-252-30 150 - 300mm 6 150 - 275mm
340-520 300 - 400mm 4pcs. 4 300 - 375mm
340-521 400 - 500mm 400 - 475mm
340-522 500 - 600mm 500 - 575mm
340-523 600 - 700mm 600 - 675mm
340-524 700 - 800mm 700 - 775mm
340-525 800 - 900mm 800 - 875mm
340-526 900 - 1000mm 900 - 975mm
Inch/Metric
Order No. Range Resolution Interchangeable
anvils
Setting Standard Micrometer
head stroke
Qty Size
340-251-30 0 - 6" .00005" / 0.001mm 6pcs. 5 1" - 5" 1"
340-252-30 6" - 12" .0001" / 0.001mm 6 6" - 11"
340-720 12" - 18" 12" - 17"
340-721 18" - 24" 18" - 23"
340-722 24" - 30" 24" - 29"
340-723 30" - 36" 30" - 35"
SKUM-340-521
Weight0.000000
Dimension0
ManufacturerMitutoyo
Data loggerNo
Resolution .0001" / 0.001mm
Measurement Range400 - 500mm
Other FunctionNo
Power SupplySR44 x 1
Water resistanceIP65
Sensor Output InterfaceNo
Accuracy±(4 + R/75)μm R = max. range (mm)
