M-505-742-54 Dial Caliper

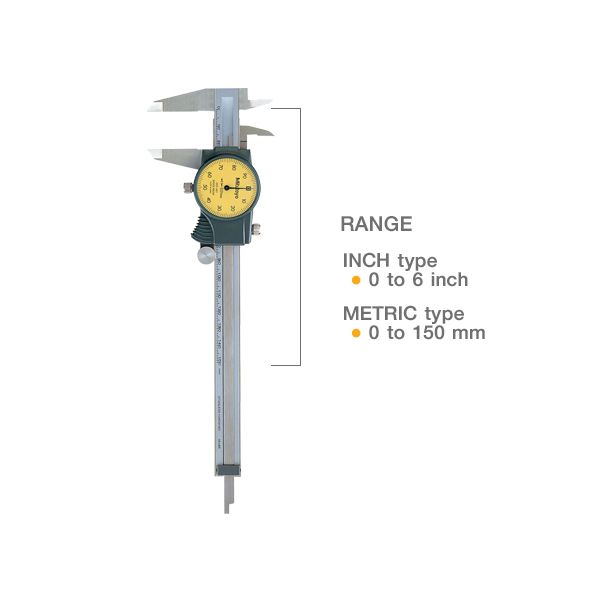

Measuring Range 0 to 6"
Can measure OD, ID, depth and steps.
New designed dial movement for ultra smooth sliding and high shock protection.
Mitutoyo, Japan

Mitutoyo M-505-742-54 Dial Caliper

Measuring Range 0 - 6"
.1" Per One Revolution
Red Dial Face
Can measure OD, ID, depth and steps.
New designed dial movement for ultra smooth sliding and high shock protection.
Lock screw for dial bezel and for holding the sliding jaw position.
Mitutoyo, Japan



4 ways Measurement Mitutoyo M-505 Dial Caliper Series

Outside measurement Inside measurement Step measurement Depth measurement
Dial Caliper 505 Series Dial Caliper 505 Series Dial Caliper 505 Series Dial Caliper 505 Series



Dimention Mitutoyo M-505 Dial Caliper Series

Dimention and mass Range L A B C D Mass (g)
DIMENSIONS AND MASS 0 - 150 mm 231 40 21 16.5 16 175
0 - 200 mm 288 50 24.5 20 16 185
0 - 300 mm 403 64 27.5 22 20 370



Specifications Mitutoyo M-505 Dial Caliper Series

Model Range Accuracy Graduation

Remarks

Metric 1mm Per One Revolution
M-505-732 0 - 150mm ±0.03mm 0.01mm
M-505-733 0 - 200mm ±0.03mm 0.01mm
Metric 2mm Per One Revolution
M-505-730 0 - 150mm ±0.03mm 0.02mm
M-505-734 0 - 150mm ±0.03mm 0.02mm Carbide-tipped jaws for OD measurement
M-505-735 0 - 150mm ±0.03mm 0.02mm Carbide-tipped jaws for OD & ID measurement
M-505-731 0 - 200mm ±0.03mm 0.02mm
M-505-745 0 - 300mm ±0.04mm 0.02mm
Inch 1" Per One Revolution
M-505-742 0 - 6" ±0.001" 0.001"
M-505-742-51 0 - 6" ±0.001" 0.001" Blue Dial Face
M-505-742-52 0 - 6" ±0.001" 0.001" Purple Dial Face
M-505-742-53 0 - 6" ±0.001" 0.001" Green Dial Face
M-505-745-54 0 - 6" ±0.001" 0.001" Red Dial Face
M-505-745-55 0 - 6" ±0.001" 0.001" Orange Dial Face
M-505-745-56 0 - 6" ±0.001" 0.001" Black Dial Face
M-505-736 0 - 6" ±0.001" 0.001" Carbide-tipped jaws for OD measurement
M-505-738 0 - 6" ±0.001" 0.001" Carbide-tipped jaws for OD & ID measurement
M-505-743 0 - 8" ±0.002" 0.001"
M-505-737 0 - 8" ±0.002" 0.001" Carbide-tipped jaws for OD measurement
M-505-739 0 - 8" ±0.002" 0.001" Carbide-tipped jaws for OD & ID measurement
M-505-746 0 - 12" ±0.002" 0.001"
M-505-747 0 - 12" ±0.002" 0.001" Carbide-tipped jaws for OD measurement
M-505-748 0 - 12" ±0.002" 0.001" Carbide-tipped jaws for OD & ID
Inch 2" Per One Revolution
M-505-740 0 - 6" ±0.15mm 0.001"
M-505-744 0 - 6" ±0.15mm 0.001" Carbide-tipped jaws for OD measurement
M-505-741 0 - 8" ±0.15mm 0.001"
M-505-749 0 - 12" ±0.15mm 0.001"
M-505-750 0 - 12" ±0.15mm 0.001" Carbide-tipped jaws for OD measurement
SKUM-505-742-54
Weight0.000000
Dimension0
ManufacturerMitutoyo
Data loggerNo
Maximum Range150mm
Type of CaliperDial Caliper
Resolution 0.001"
Measurement Range0 to 6"
Other FunctionNo
Power SupplyNo Need
Water resistanceNo
Sensor Output InterfaceNo
Accuracy±0.001"
