Mitutoyo M-550-301-10 Absolute Digimatic Caliper (0 - 200mm)

SKU
M-550-301-10

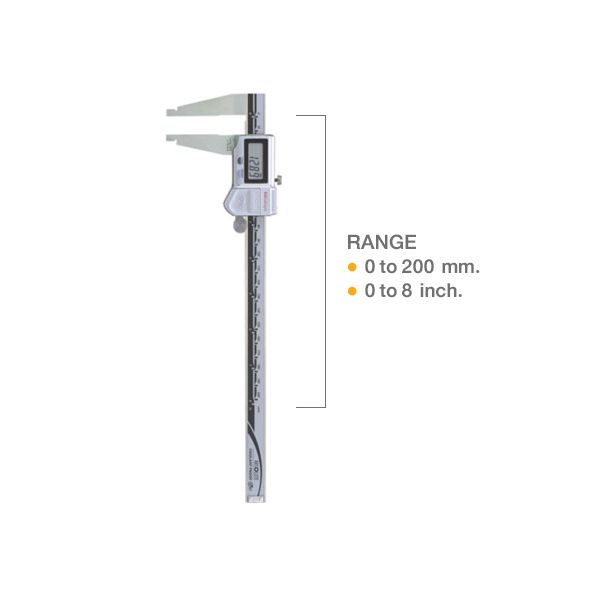

main product photo
Out of stock

M-550-301-10 Digimatic Caliper with Nib Style Jaws
Range Measure 0 to 200mm
The jaws have radiused measuring faces for accurate ID measurement.
LCD Display
Battery SR44 (Battery Life 3.5 years)
Mitutoyo, Japan

Categories: Mitutoyo, Discontinued Products
Mitutoyo

Mitutoyo M-550-301-10 ABSOLUTE Digimatic Caliper

The jaws have radiused measuring faces for accurate ID measurement.
Range 0 - 200mm
Accuracy Excluding quantizing error
LCD Display
Battery SR44 (Battery Life 3.5 years)
Mitutoyo, Japan

Functions

  • Origin-Set
  • Zero-Set
  • power on/off
  • inch/mm conversion (inch/mm type only)
  • SPC data output
  • data hold (optional)
  • offset
  • preset
  • แจ้งเตือนสถานะแบตเตอรี่
  • scale contamination
  • counting value

Dimention Mitutoyo M-550 ABSOLUTE Digimatic Series with Nib Style Jaws

Dimention and mass Range L a b c

M-550_Digimatic_Caliper_Series

 0 - 200 mm 288 60 8 16
0 - 300 mm 403 75 12 20
0 - 450 mm 630 100 18 25
0 - 600 mm 780 100 18 25
0 - 1000 mm 1240 140 24 32



Specifications Mitutoyo M-550 ABSOLUTE Digimatic Series with Nib Style Jaws

Model Range* Resolution Accuracy Remarks
Metric
M-550-301-10 0 - 200mm (10.1 - 210mm) 0.01mm ±0.03mm IP67
M-550-331-10 0 - 300mm (10.1 - 310mm) 0.01mm ±0.03mm IP67, with offset/preset function for easy inside measurement
M-550-203-10 0 - 450mm (20.1 - 470mm) 0.01mm ±0.05mm
M-550-205-10 0 - 600mm (20.1 - 620mm) 0.01mm ±0.05mm
M-550-207-10 0 - 1000mm (20.1 - 1020mm) 0.01mm ±0.07mm
Inch/Metric
M-550-311-10 0 - 8" (.404" - 8.4") .0005"/0.01mm ±.0015" IP67
M-550-341-10 0 - 12" (.404" - 12.4") .0005"/0.01mm ±.002" IP67, with offset/preset function for easy inside measurement
M-550-223-10 0 - 18" (.504" - 18.5") .0005"/0.01mm
M-550-225-10 0 - 24" (.504" - 24.5") .0005"/0.01mm
M-550-227-10 0 - 40" (.504" - 40.2") .0005"/0.01mm ±.003"

*(): Inside measurement
Note: Series 550 is not equipped with a depth bar.

SKUM-550-301-10
Weight0.000000
Dimension0
ManufacturerMitutoyo
Data loggerNo
Maximum Range200mm
Type of CaliperDigital Caliper
Resolution 0.01mm
Measurement Range0 ถึง 200mm
Other Function

Origin-Set

Zero-Set

Data Output

inch/mm conversion (inch/mm Model)

Power SupplySR44
Water resistanceIP67
Sensor Output InterfaceNo
Accuracy±0.03mm
Your Rating
PDF Download Catalog ดาวน์โหลดแคตตาล็อค Mitutoyo

อุปกรณ์เสริม (แยกจำหน่าย)

Product No. Product Name
05CZA624 cable with data switch (1m)*
05CZA625 SPC cable with data switch (2m)*
959143 Data hold unit
959149 SPC cable with data switch (1m)
959150 SPC cable with data switch (2m)

*For IP67 models (up to 300mm)
