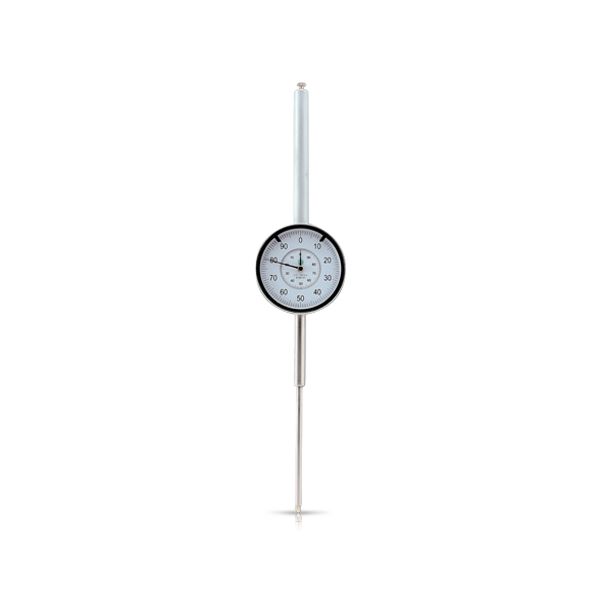

SK Niigataseiki DI-10078 Long Stroke Dial Gauges (0 - 100mm)

SK Niigataseiki DI-10078 Long Stroke Dial Gauges (0 - 100mm)

Range: 0 - 100mm
Graduation 0.01mm
Dial Reading 0 to 100mm
Backlash Error 15µm
Measuring Force less than 4.5N
1 Revolution 1mm
Error over entire range ±50µm
Repeatability 6µm
Long stroke measurement
Body: steel
O-Ring sealed between inner and outer lid to protect from water or oil
Jeweled bearings
White scale plate
Flat type back and Center-lug back

DimensionSK Niigataseiki DI-Long Stroke Dial Gauges Series

	Model No.	A	B	C	D	E	F	G	H	I
	DI-3058	37.5	68.5	58	19	19.5	19.5	38	53.5	8.5
	DI-5058	108.5	126	58	19	19.5	39.5	57.5	53.5	8.5
	DI-8058	138.5	168.5	58	19	19.5	51.5	88	53.5	8.5
	DI-10078	167.5	208	78	20	20.5	61	108	69	10

Specification Long Stroke Dial Gauges
