Mitutoyo M-137-206 Tubular Inside Micrometer (50 - 150mm)

SKU

M-137-206

Skip to the end of the images gallery

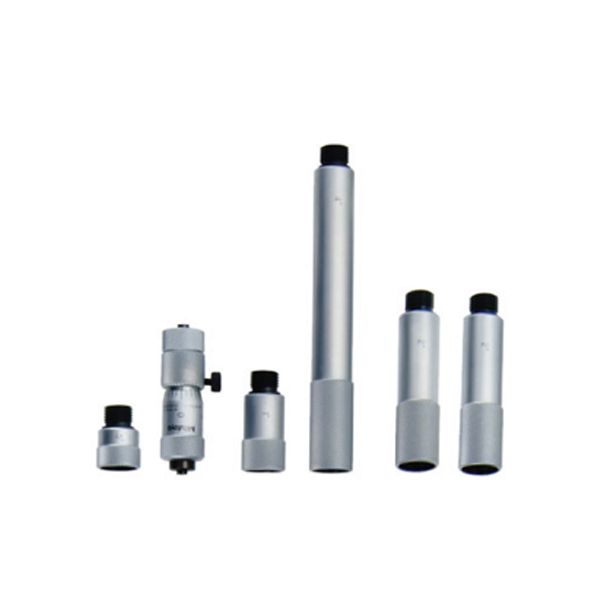

main product photo

Skip to the beginning of the images gallery

Out of stock

Tubular Inside Micrometer
Range Measuring 50 - 150mm
The sleeve is rotated to adjust the index line position when setting to a length standard.
Measuring faces with catbide tip.
Wide range of inside measurements possible by combinning extension rods and anvils with the micrometer head.
Mitutoyo, Japan

Category: Mitutoyo

Mitutoyo M-137-206 Tubular Inside Micrometer

Range Measuring 50 - 150mm
Graduation 0.01mm
Accuracy ± (3 + number of rods + maximum measurement length / 50) μm
Measuring faces with catbide tip.
Total of rods 3 pcs.

13mm ×1
25mm ×1
50mm ×1

Mitutoyo, Japan

Dimention Mitutoyo M-137 Tubular Inside Micrometer Series

Mitutoyo-Series 137

Mitutoyo-Series 137

Specifications Mitutoyo M-137 Tubular Inside Micrometer Series

Metric
Model		Range	Graduation	Micrometer head stroke	Extension rods
Plain faces	Carbide-tipped faces	Range	Graduation	Micrometer head stroke	Qty	Size
M-137-011	M-137-013	50 - 63mm	0.01mm	13mm	-	-
M-137-201	M-137-206	50 - 150mm			3	13, 25, 50mm
M-137-202	M-137-207	50 - 300mm			5	13, 25, 50 (2 pcs.), 100mm
M-137-203	M-137-208	50 - 500mm			6	13, 25, 50 (2 pcs.), 100, 200mm
M-137-204	M-137-209	50 - 1000mm			8	13, 25, 50 (2 pcs.), 100, 200 (2 pcs.), 300mm
M-137-205	M-137-210	50 - 1500mm			10	13, 25, 50 (2 pcs.), 100, 200 (3 pcs.), 300mm (2 pcs.)
Inch
Model		Range	Graduation	Micrometer head stroke	Extension rods
Plain faces	Carbide-tipped faces	Range	Graduation	Micrometer head stroke	Qty	Size
M-137-012	M-137-014	2 - 2.5"	.001"	.5"	-	-
M-137-211	M-137-216	2 - 6"			3	.5", 1", 2"
M-137-212	M-137-217	2 - 12"			5	.5", 1", 2" (2 pcs.), 4"
M-137-213	M-137-218	2 - 20"			6	.5", 1", 2" (2 pcs.), 4", 8"
M-137-214	M-137-219	2 - 40"			8	.5", 1", 2" (2 pcs.), 4", 8" (2 pcs.), 12"
M-137-215	M-137-220	2 - 60"			10	.5", 1", 2", 4" (2 pcs.), 6", 8" (3 pcs.), 12" (2 pcs.)

More Information

SKU	M-137-206
Weight	0.000000
Dimension	0
Manufacturer	Mitutoyo
Data logger	No
Resolution	Graduation 0.01mm
Measurement Range	50 - 150mm
Other Function	No
Power Supply	No Need
Water resistance	No
Sensor Output Interface	No
Accuracy	± (3 + number of rods + maximum measurement / 50) μm
