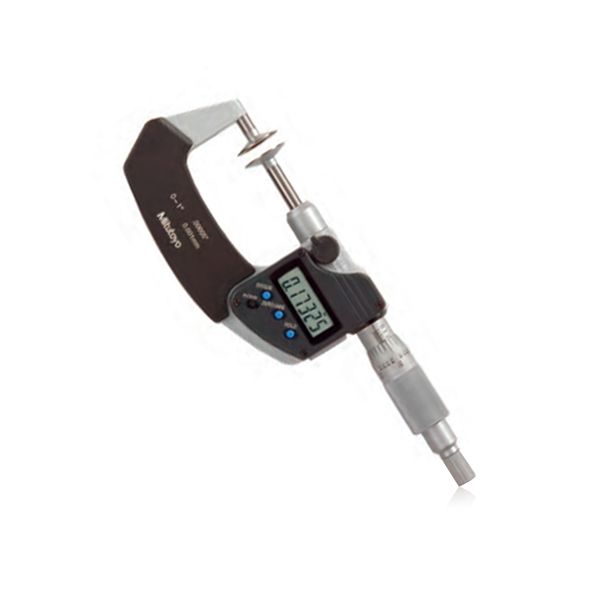

Mitutoyo M-369-352-30 Disk Micrometers (3" - 4")

SKU
M-369-353-30
Out of stock

Measures “root tangent length” of spur gears and helical gears.
Non-rotating spindle type.
Measurable range of gear pitch: 0.5 to 6 module
Equipped with Ratchet Stop for constant measuring force.
Mitutoyo, Japan

Mitutoyo M-369-353-30 Disk Micrometers

Measuring Range: 3" - 4"
Resolution: .00005" / 0.001mm
Accuracy: ±.0003"
Anvil diameter: ø20
Flatness: .00004"
Parallelism: .0003"
Measures “root tangent length” of spur gears and helical gears.
Non-rotating spindle type.
Measurable range of gear pitch: 0.5 to 6 module
Equipped with Ratchet Stop for constant measuring force.
Battery SR44 ×1
Battery Life 2.4 years
Mitutoyo, Japan



M-369 M-369



Dimension Mitutoyo M-369 Disk Micrometers Series

M-369 Dimension M-369 Dimension
Range L a b c
0 - 25mm 0 7 32 12.9
25 - 50mm 25 9.8 47
50 - 75mm 50 11.2 60
75 - 100mm 75 13.5 5.5



Specification Mitutoyo M-369 Disk Micrometers Series

Metric Models Range Resolution Accuracy Anvil dia. Flatness Parallelism
Normal M-369-250-30 0 - 25mm 0.001mm ±4μm ø20 1μm 4μm
M-369-251-30 25 - 50mm
M-369-252-30 50 - 75mm ±6μm 6μm
M-369-253-30 75 - 100mm
Quickmike M-369-411 0 - 30mm ±4μm 4μm
M-369-412 25 - 55mm
 Inch  Models  Range  Resolution Accuracy   Anvil dia. Flatness   Parallelism
Normal M-369-350-30 0 - 1" .00005" /
0.001mm
±.0002" ø20 .00004" .0002"
M-369-351-30 1" - 2"
M-369-352-30 2" - 3" ±.0003" .0003"
M-369-353-30 3" - 4"
Quickmike M-369-421 0 - 1.2" ±.0002" .0002"
M-369-422 1" - 2.2"
SKUM-369-353-30
Weight0.000000
Dimension0
ManufacturerMitutoyo
Data loggerNo
Resolution 0.001mm/ 0.00005"
Measurement Range3" - 4"
Other FunctionNo
Power SupplyBattery SR44 x 1
Water resistanceIP54
Sensor Output InterfaceNo
Accuracy±0.0003"
