Mitutoyo M-169-202 Disk Micrometers Non-Rotating Spindle Type (25 - 50mm)

SKU
M-169-202

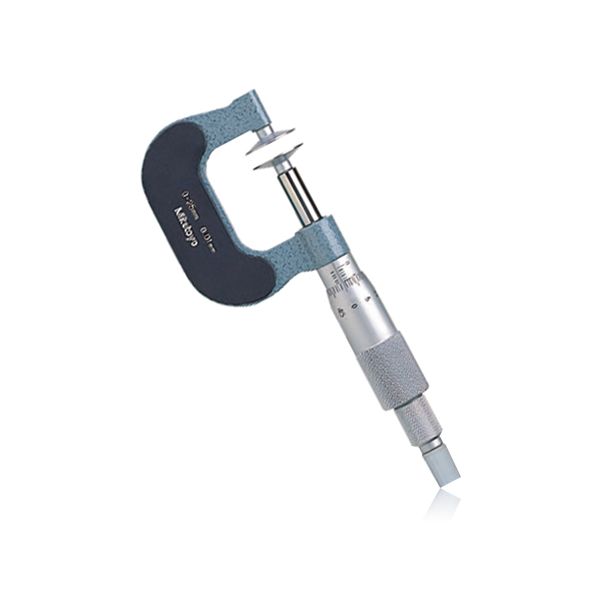

main product photo
Out of stock

Measures “root tangent length” of spur gears and helical gears.
Non-rotating spindle type.
Measurable range of gear pitch: 0.5 to 6 module
Equipped with Ratchet Stop for constant measuring force.
Mitutoyo, Japan

Category: Mitutoyo
Mitutoyo

Mitutoyo M-169-202 Disk Micrometers Non-rotating spindle type.

Measuring Range: 25 - 50mm
Graduation: 0.01mm
Accuracy: ±4μm
Anvil Diameter: ø20
Flatness: 1μm
Parallelism: 4μm

Measures “root tangent length” of spur gears and helical gears.
Non-rotating spindle type.
Measurable range of gear pitch: 0.5 to 6 module
Equipped with Ratchet Stop for constant measuring force.
Battery SR44 ×1
Mitutoyo, Japan



M-369 M-369



Dimension Mitutoyo M-169 Disk Micrometers Series

M-169 Dimension M-169 Dimension
Range L a b c
0 - 25mm 0 13.8 25 5.7
25 - 50mm 25 32
50 - 75mm 50 12 49 5.5
75 - 100mm 75 14 63



Specification Mitutoyo M-169 Disk Micrometers Series

Metric
Models Range Graduation Accuracy Anvil dia. Flatness Parallelism
M-169-201 0 - 25mm 0.01mm ±4μm ø20 1μm 4μm
M-169-202 25 - 50mm
M-169-205 50 - 75mm ±6μm 6μm
M-169-207 75 - 100mm
Inch
Models  Range  Resolution Accuracy   Anvil dia. Flatness   Parallelism
M-169-203 0 - 1" .001" ±.0002" ø20 .00004" .0002"
M-169-204 1" - 2"
M-169-206 2" - 3" ±.0003" .0003"
M-169-208 3" - 4"
SKUM-169-202
Weight0.000000
Dimension0
ManufacturerMitutoyo
Data loggerNo
Resolution 0.01mm
Measurement Range25 - 50mm
Other FunctionNo
Power Supply-
Water resistanceNo
Sensor Output InterfaceNo
Accuracy±4μm
