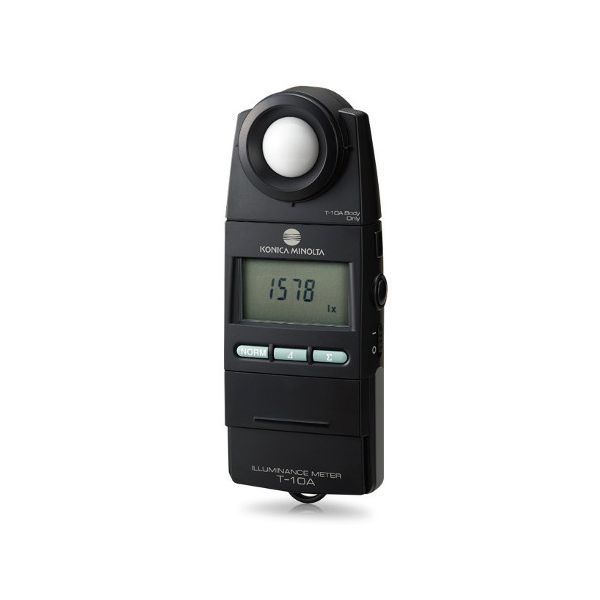

Konica Minolta T-10A Illuminance Meter

SKU
T-10A
฿68,800.00
Pre-Order Item
Out of stock

illuminance measurements
Range 0.01 to 999,000 Lux
Auto Range (Manual 5 ranges of Analog output)
High Accuracy
Multi-point measurement (2 to 30 points).
Konica Minolta, Japan

Add to Compare

Konica Minolta T-10A Illuminance Meter

For simple but accurate illuminance measurements. Makes creating illuminance measurement systems such as multi-point measurement systems easy!

Reliable, worry-free illuminance meters that conform to JIS AA Class and DIN Class B

Illuminance Meters T-10A conform to Class AA of JIS C 1609: 2006 "Illuminance meters Part 1: General Measuring Instruments" และ DIN 5032 Part 7 Class-B "Photometry; classification of illuminance meters and luminance meters" requirements to provide high-accuracy, high-reliability, worry-free measurements.

Illuminance meters conforming to these standards are required for measurements of general illumination light sources, white LED lamps for illumination, etc. in a variety of industrial fields.

Compatibel with PWM-controlled lighting. Enables measurements of next-generation light sources.

Conventional illuminance meters often cannot accurately measure PWM-controlled light sources, but the T-10A series of illuminance meters can be used to accurately measure even such light sources.

Removable receptor

The receptor and main body can be detached from each other and then connected using a LAN cable, making it easy to install as part of an inspection system.

Easy, inexpensive multi-point measurement (2 to 30 points)

Illuminance distribution of a projector etc. can be easily measured with a single instrument and several receptors.

5 Point 9 Point 25 Point

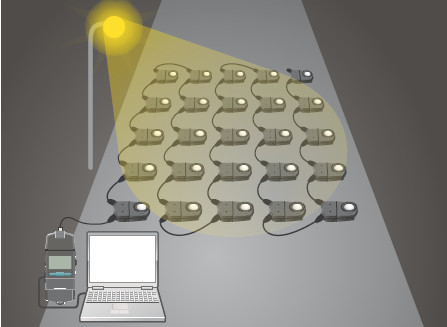

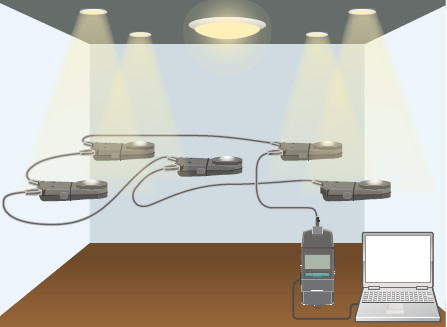

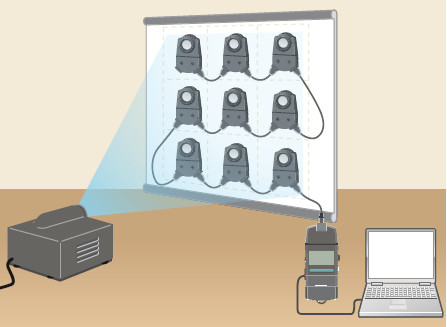

5-point example: Architectural lighting, etc. 9-point example: Projectors, etc. 25-point example: Street lighting, etc.

PWM is the abbreviation of Pulse Width Modulation, and refers to the method of controlling signal intensity by controlling the ratio between the ON period and OFF period of a pulse signal. A pulse signal is a signal which repeatedly alternates between ON and OFF, and the percentage of ON period during a single cycle is referred to as the "duty cycle". PWM-controlled lighting is a method for controlling the brightness of a lamp by controlling the duty cycle (lit time) of light from a pulse-emission source. As the lit time becomes longer, the light becomes brighter, and conversely, as the time becomes shorter the light becomes darker.

System Diagram

Model Illuminance Meter T-10A
Type Multi-function digital illuminance meter with detachable receptor head (Multi-point measurements of 2 to 30 points is possible)
Illuminance meter class Conforms to requirements for Class AA of JIS C 1609-1: 2006 "Illuminance meters Part 1: General measuring instruments"
Conforms to DIN 5032 Part 7 Class B
Receptor Silicon photocell
Relative spectral response Within 6% (f1´) of the CIE spectral luminous efficiency V (λ)
Cosine response (f2) Within 3%
Measuring range Auto range (5 manual ranges at the time of analog output)
Measuring function Illuminance (lx). illuminance difference (lx). illuminance ratio (%).
integrated illuminance (lx·h). integration time (h). average illuminance (lx).
Measuring range Illuminance: 0.01 to 299,900 lx; 0.001 to 29,990 fcd
Integrated illuminance: 0.01 to 999,900 x 103 lx·h 0.001 to 99,990 x 103 fcd·h / 0.001 to 9999 h
User calibration function CCF (Color Correction Factor) setting function: Measurement value x 0.500 to 2.000
Linearity ±2% ±1 digit of displayed value
Temperature / Humidity drift Within ±3%
Digital output USB
Analog output 1 mV/digit, 3 V at maximum reading; Output impedance: 10 KΩ; 90% response time: 28 ms
Display 3 or 4 Significant-digit LCD with backlight illumination (Automatic illumination)
Power source 2 AA-size batteries
AC adapter AC-A308 (optional; for 1 to 10 receptors)
AC adapter AC-A311 (optional; for 1 to 30 receptors)
Battery life 72 hours or longer (when alkaline batteries are used) in continuous measurement
Operating Temperature / Humidity range -10 to 40°C, relative humidity 85% or less (at 35°C) with no condensation
Storage Temperature / Humidity range -20 to 55°C, relative humidity 85% or less (at 35°C) with no condensation
Dimensions 69 x 174 x 35 mm
Weight 200 g
SKUT-10A
Weight200.000000
Dimension69 x 174 x 35 mm
Manufacturerkonica-minolta
Data loggerNo
Solar Power RangeW/cm^2
UV measurementNo
Switching Lx RangeAuto, Manual
UV measurement rangeuW/cm^2
Lux measurement range0.01 to 999,900 lx
Other FunctionNo
Power Supply2 AA-size batteries
Resolution0.1 / 0.01 / 0.001 Lux
Water resistanceNo
Sensor Output InterfaceNo
Accuracy±2% ±1 digit of displayed value
