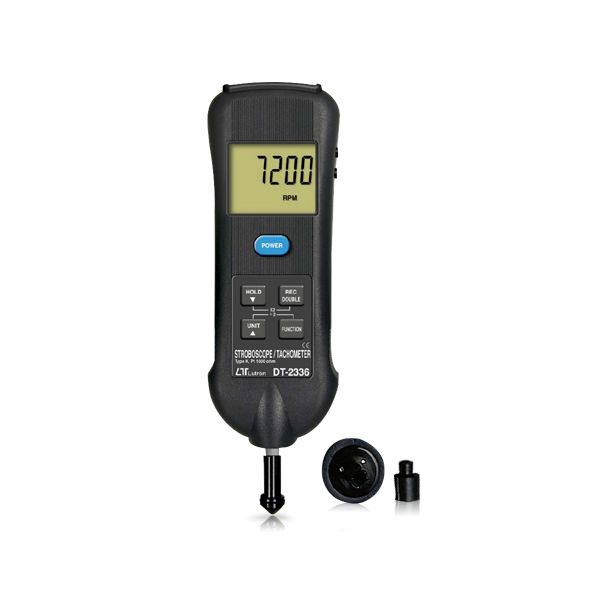

Lutron DT-2336 Tachometer/Stroboscope

SKU

DT-2336

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

฿11,200.00

Pre-Order Item

In stock

Multi-Function in one instrument
- Photo Tachometer (RPM)
- Contact Tachometer (RPM, m/min, ft/min)
- Strobscope
- Thermometer Type-K, Pt 1000

Categories: Tachometers, Lutron , Product Type 2 (Stock Item)

Lutron DT-2336 TACHOMETER/STROBOSCOPE

Multi-functions, one instrument

Non-Contact Tachometer (Photo, Stoboscople)
Contact Tachometer (RPM)
Thermometer (Type-K, Pt 1000)

ELECTRICAL SPECIFICATION

Measurement	Range	Resolution	Accuracy
Photo Tachometer	5 to 99,999 RPM	0.1 RPM ( < 1,000 RPM) 1 RPM ( ≥ 1,000 RPM)	± (0.05% + 1 digit)
Contact Tachometer	0.5 to 19,999 RPM	0.01 m/min. ( < 100 m/min.) 0.1 m/min. ( ≥ 100 m/min.)	± (0.05% + 1 digit)
		0.1 ft/min. ( < 1,000 ft/min.) 1 ft/min. ( ≥ 1,000 ft/min.)
		0.1 in./min. ( < 1,000 in./min.) 1 in./min. ( ≥ 1,000 in./min.)
Stroboscope	60 to 30,000 RPM/FPM	0.1 RPM ( < 1,000 RPM) 1 RPM ( ≥ 1,000 RPM)	± (0.05% + 1 digit)
Type K Thermometer	-50.0 to 1300.0 °C	0.1 °C	± (0.4% + 0.5 °C)
Type K Thermometer	-50.1 to -100.0 °C	0.1 °C	± (0.4% + 1 °C)
Pt 1000 Ω	-10.0 to 70.0 °C	0.1 °C	± 1.2 °C

SPECIFICATIONS

Measurement	Photo Tachometer (RPM) Stroboscope (FPM) Contact Tachometer (RPM, m/min., ft/min.) Type K Thermometer Pt 1000 Thermometer
Time base	Quartz crystal
Circuit	Exclusive one-chip of microcomputer LSI circuit.
Function	Last, Max., Min.
Display	45 x 24mm LCD, 5 digits
Power Requirements	Battery AA x 4, DC 6V
Dimentions / Weight	207 x 67 x 39mm (160g)

More Information

SKU	DT-2336
Weight	160.000000
Dimension	207 x 67 x 39 mm
Manufacturer	Lutron
Data logger	No
Special Specification	No
Resolution	Photo Tachometer : 0.1 RPM ( < 1,000 RPM), 1 RPM ( ≧1,000 RPM) Contact Tachometer : m/min. : 0.01 ( < 100), 0.1 ( ≥ 100) ft/min. : 0.1 ( < 1,000), 1 (≥ 1,000) in./min. : 0.1 ( < 1,000), 1 ( ≥ 1,000) Stroboscope : 0.1 RPM ( < 1,000 RPM), 1 RPM ( ≥ 1,000 RPM) Type K Thermometer: 0.1 ℃ Pt 1000 Ω : 0.1 ℃
Measurement Range	Photo Tachometer: 5 to 99,999 RPM Contact Tachometer: 0.5 to 19,999 RPM Stroboscope: 60 to 30,000 RPM/FPM Type K Thermometer: -50.0 to 1300.0 °C, -50.1 to -100.0 °C Pt 1000 Ω: -10.0 to 70.0 °C
Other Function	Last, Max., Min.
Power Supply	UM3-AA X 4 ( DC 6 V battery ).
Water resistance	No
Sensor Output Interface	No
Accuracy	Photo Tachometer: ± ( 0.05% + 1 digit )., Contact Tachometer: ± ( 0.05% + 1 digit )., Strobescople Tachometer: ± (0.05 % + 1d), Thermometer Type K: ± 0.4 % + 0.5 ℃ (-50.0 to 1300.0 ℃), ± 0.4 % + 1 ℃ (-50.1 to -100.0 ℃) Pt 1000 Ω: ± 1.2 ℃

Accessories Included:

DT-2336
Hard carrying case
Reflecting tape marks (600 mm)
RPM adapter (Cone)
RPM adapter (Funnel)
Surface speed test wheel
Manual
