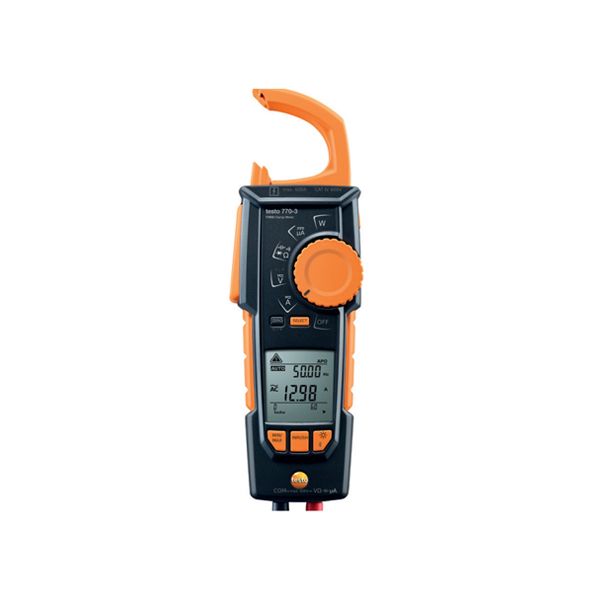

Testo 770-3 Cable-grab Clamp meter with Bluetooth

No. 0590 7703

The testo 770-3, in addition to the features of the other meters in the testo 770 series, includes real-time power measurements (Watts), power factor, and Bluetooth. The Testo app can be used for remote viewing, monitoring, data logging, and creating reports. This powerful app allows you to create custom reports that include photos, data, and graphs that can be saved, or sent via email
Smart Probes App free download on iOS & Android
CAT IV 600 V / CAT III 1000 V
Dimensios 249 x 96 x 43 mm (378g)
Delivery Scope : Testo 770-3 TRMS, including batteries AAA x 3, Manual, quick start guide, and certificate of conformity
Testo , Germany

SPECIFICATION

Technical Data
Measurement parameter	Measuring range	Resolution	Accuracy
Temperature - Type K TC	-4.0 to 932.0 °F -20 to 500 °C	0.2 °F 0.2 °C	±1.8 °F (32.0 to 212.0 °F) ±1 °C (0 to 100 °C)
DC voltage	1 mV to 600 V	1 mV	± (0.8 % of mv + 3 Digit)
AC voltage	1 mV to 600 V	1 mV	± (1.0 % of mv + 3 Digit)
DC current	0.1 μA to 600 A	0.1 μA	± (2 % of mv + 5 Digit)
AC current	0.1 μA to 600 A	0.1 μA	± (2 % of mv + 5 Digit)
Resistance	0.1 Ohm to 60.00 MOhm	0.1 Ohm	± (1.5 % of mv + 3 Digit)
Capcitance	2 nF to 60.00 mF	0.01 nF	± (1.5 % of mv + 5 Digit)
Frequency	0.01 Hz to 9999 kHz	-	± (1.0 % of mv + 1 Digit)
Active Power	0.1 W to 600 kW	0.1 W	± (5 % of mv + 5 Digit)
Reactive Power	0.1 to 600.0 kVA	0.1 var	± (10 % of mv + 5 Digit)
Apparent Power	0.1 VA to 600.0 kVA	0.1 VA	±1 Digit
Direct current DC Voltage	0.1 W to 600.0 kW	0.1 W	± 1 Digit
Power Factor	-1.00 to 1.00	0.01	± (10 % of mv + 5 Digit)

More Information

SKU	Testo-770-3
Weight	378.000000
Dimension	249 x 96 x 43mm
Manufacturer	Testo
Data logger	No
Resolution	AC/DC voltage : 1 mV AC/DC Current : 0.1 μA Resistance : 0.1 Ohm Capcitance : 0.01 nF Active Power : 0.1 W Reactive Power : 0.1 var Power Factor : 0.01 Direct current DC Voltage : 0.1 W
Measurement Range	AC/DC voltage : 1 mV to 600 V AC/DC Current : 0.1 μA to 600 A Resistance : 0.1 Ohm to 60.00 MOhm Capcitance : 0.01 nF Frequency : 0.01 Hz to 9999 kHz Power Factor : -1.00 to 1.00
Other Function	True RMS Diode test µA current rangeWatts / Power factor Continuity Resistance Capacitance Temperature meas. Frequency Hold / Min / Max Bluetooth CAT IV 600 V / CAT III 1000 V
Power Supply	AAA x 3
Water resistance	No
Sensor Output Interface	No
Accuracy	AC/DC voltage : ± (0.8 % of mv + 3 Digit) AC/DC Current : ± (2 % of mv + 5 Digit) Frequency : ± (1.0 % of mv + 1 Digit) Resistance : ± (1.5 % of mv + 3 Digit) Capcitance : ± (1.5 % of mv + 5 Digit) Active Power : ± (5 % of mv + 5 Digit) Reactive Power : ± (10 % of mv + 5 Digit) Power Factor : ± (10 % of mv + 5 Digit) Direct current DC Voltage : ± 1 Digit
