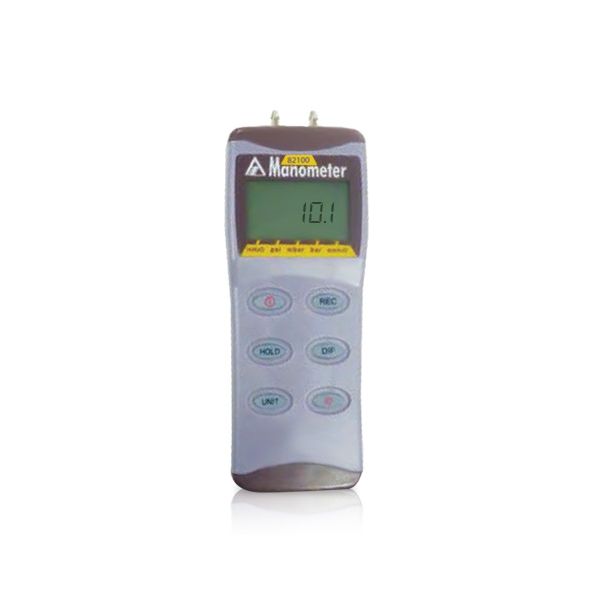

AZ-82100 Manometer เครื่องวัดความดัน (100 psi)

SKU
AZ-82100
Special Price ฿6,570.00 Regular Price ฿7,300.00
Out of stock now
สินค้าหมด

Manometer  เครื่องวัดความดัน
ช่วงการวัดความดัน-แรงดัน 100.0 psi
หน่วยการวัดสูงสุดถึง 11 หน่วย
หน้าจอ LCD พร้อมไฟ Backlight
ฟังก์ชั่นหลากหลาย Hold, Max/Min, Record

สินค้าเข้าช่วงเดือนเมษายน2024
เพิ่มสินค้าเปรียบเทียบ

AZ-82100 Manometer  เครื่องวัดความดัน (100 psi)

Features

  • Hold function freezes current readings
  • Over-range indication with error messages
  • Backlight function for dark area
  • Auto power off disablement
  • Low battery indicator
  • Real time shows in recording mode
Measurement psi kPa mmHg Kg/cm² mbar (hpa) bar inH2O cmH2O inHg ftH2O oz/inch²
Range ±100.0 ±689.5 ±5171 ±7.031 ±6895 ±6.895 ±2768 ±7004 ±203.6 ±230.7 ±1600
Resolution 0.1 0.4 3 0.004 4 0.004 2 4 0.2 0.2 1

Pressure Conversion Table (ตารางแปลงหน่วยความดัน)

Accuracy ±0.3% of full scale at ±25ºC
Repeatability ±0.2% to 0.5% of full scale
Linearity/ Hysteresis ±0.29% to 1% of full scale
Combined accuracy ±1.0% of full scale
Response time 0.5 second
Compensated temp. range 0 to 50ºC
LCD size 29 x 51 mm
Power requirement Battery 9V
Dimensions/ Weight 182 x 72 x 30 mm/ 150 g
SKUAZ-82100
Weight150.000000
ขนาด182 x 72 x 30 mm.
ผู้ผลิตAZ
บันทึกข้อมูลไม่
Type of PressureGauge Pressure
Resolution 0.1 psi
Measurement Range-100.0 to 100.0
ฟังก์ชั่น

ฟังก์ชั่น REC (Min/. Max), Hold ค้างหน้าจอ, Over range indicator, เตือนแบตเตอรี่ใกล้หมด

Power SupplyBattery 9V
ระดับการป้องกันNo
Sensor Output InterfaceNo
Accuracy±0.3%F.S.
คะแนนของคุณ

Included Accessories:

  • ตัวเครื่อง
  • connection hose 4mm dia (ยาว 500mm)
  • กระเป๋า

Optional Accessories:

  • USB Cale+Software Set (USB-AZ)
