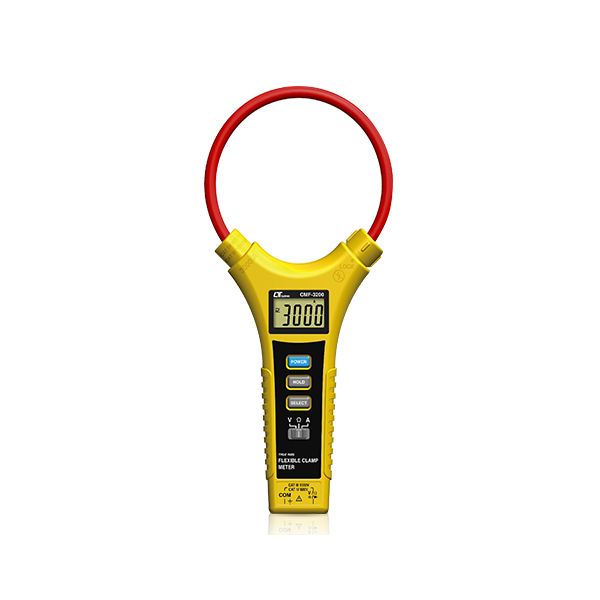

Lutron CMF-3200 แคลมป์มิเตอร์ (AC 3000A)

SKU
CMF-3200
฿3,900.00
Pre-Order Item
สินค้าหมด

Lutron CMF-3200 แคลมป์มิเตอร์
โพรบสามายืดหยุ่นได้ Uses durable
Auto power of or manual power off
A/D counts no : 6000 counts
Flexible cable length : 300 mm
Flexible cable dimension : 8 mm
ยี่ห้อ Lutron, Taiwan

เพิ่มสินค้าเปรียบเทียบ

Lutron CMF-3200 แคลมป์มิเตอร์

โพรบสามายืดหยุ่นได้
Uses durable
Auto power of or manual power off
A/D counts no : 6000 counts
Flexible cable length : 300 mm
Flexible cable dimension : 8 mm

AC Current * true rms (23±5 ℃)

  • ช่วงการวัด : 600 A/3000 A
  • Resolution : 0.1A /1 A

AC Current * true rms

  • ช่วงการวัด : 600 A Range
  • Accuracy : ± ( 1% +8d )
  • ช่วงการวัด : 3000 A Range
  • Accuracy : ± ( 1% +10d )

DC Voltage

  • ช่วงการวัด : 6 V/60 V/600 V /1000 V
  • Resolution : 0.001V /0.01V /0.1V/1 V
  • Accuracy : ± ( 0.8% + 5d )

AC Voltage * true rms

  • ช่วงการวัด : 6 V/60 V/600 V/1000 V
  • Resolution : 0.001V /0.01V /0.1V/1 V
  • Accuracy : ± ( 1% + 8d ) *Spec. are tested under 50/60 Hz

Diode : Short/non conductance, good/defect test

Capacitance

  • ช่วงการวัด : 6 nF/60 nF/600 nF/6 uF/60 uF/600 uF
  • Resolution : 0.001nF/0.01nF/0.1 nF/0.001uF/0.01uF/0.1uF
  • Accuracy : ± ( 3 % + 10d )

Resistance

  • ช่วงการวัด : 600 Ω /6 KΩ /60 KΩ /600 KΩ /6 MΩ /60 MΩ
  • Resolution : 0.1 Ω /0.001 KΩ /0.01 KΩ /0.1 KΩ /0.001 MΩ/0.01MΩ
  • Accuracy : 600 ohm : ± ( 1 % + 5d ),6K/60K/600K/6M/60M : ± ( 1.5 % + 5d )

Continuity Beeper : Beeper will sound if measured resistance less than 20 ohm.

Battery AAA x 2
Dimension : 290 x138.3 x 26.5 mm (197g)
ยี่ห้อ Lutron

SKUCMF-3200
Weight197.000000
ขนาด290 x 138.3 x 26.5 mm
ผู้ผลิตLutron
บันทึกข้อมูลไม่
Resolution Based on the functions of use. (Description)
Measurement RangeBased on the functions of use. (Description)
ฟังก์ชั่นNo
Power SupplyBattery AAA x 2
ระดับการป้องกันNo
Sensor Output InterfaceNo
AccuracyBased on the functions of use. (Description)
คะแนนของคุณ

Included Accessories :

  • Operation manual x 1
  • Test leads ( CATIII 1000 V ) x 1
