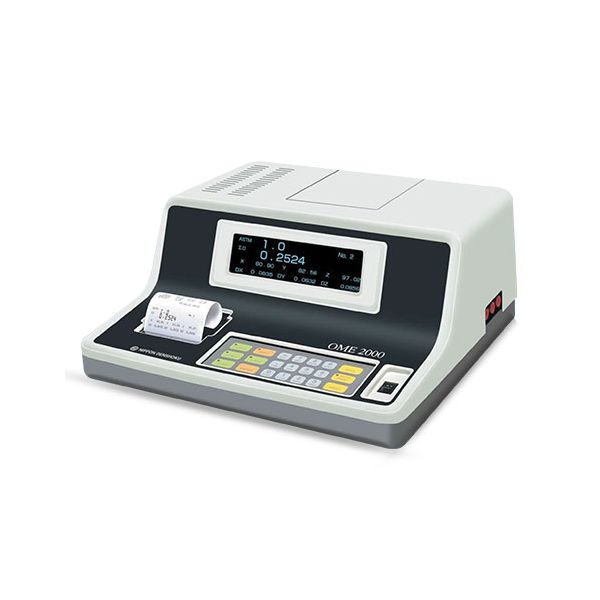

Color Meter for Petroleum Products OME 2000 เครื่องวัดสี

SKU

OME-2000

Skip to the end of the images gallery

Skip to the beginning of the images gallery

฿1,005,000.00

Pre-Order Item

สินค้าหมด

เครื่องวิเคราะห์สี สำหรับผลิตภัณฑ์ปิโตรเลียม
มาพร้อม Printer ในตัว
หน้าจออ่านค่าง่าย
ความแม่นยำสูง

หมวดหมู่: เครื่องวิเคราะห์สี, LEGA

รายละเอียด

Color Meter for Petroleum Products OME 2000 เครื่องวัดสี

Features

High-Accuracy Measurement Capability
Easy-to-See Screen Display
Data Printout
Averging Function
Teaceability
Sample Name Input Function
Clock Functions
Memory Backup
Computer Interface
Test Tube Method (option)

SPECIFICATION

Light Source for Measurement	12V 20W Halogen Lamp
Light-Receiving Element	Fast-response silicon photocell
Tristimulus value filter	Colored glass filter X-Y-Z
Standard Light	Standard color C/2° specified in JIS
Electric Circuit	Built-in stabilized power source amplifying circuit, and microcomputer
Calibration	Automatic standard adjustment at the touch of a button.
Cells Used	Saybolt color 100mm - ASTM color 33mm
Display	Fluorescent display : 256 x 64 dots Display area : 166.15 x 41.35mm Emitted colors : Blue-green
Displayed Data	Saybolt color, Lab, ⊿L, ⊿a, ⊿b, ⊿E*, ASTM color, X, Y, Z, DX, DY, DZ, ∑D, APHA (Pt-Co), Gardner Color and operating comment.
Printer	Printing Method : Heat-sensitive serial dot printer Printing Method : Bi-directional Total number of dots : 256 x 8 dots Printing speed : 1.1 sec / line Paper width : 80mm
Printer Data	Saybolt color, Lab, ⊿L, ⊿a, ⊿b, ⊿E*, ASTM color, X, Y, Z, DX, DY, DZ, ∑D, APHA (Pt-Co), Gardner Color
Sample Name Input Function	Sample name input in upper and lower case alphanumeric characters. Sample names are printed out on the printer and transmitted form the RS-232C interface at the same time.
External Output	RS-232C (Standard) - Transmitted data : Measurement time (YY / MM / DD / HH / MM), Sample numer, Averaged Measurement display, ASTM Saybolt XZY, DX, DY, DZ, ∑D, Lab, ⊿L, ⊿a, ⊿b, ⊿E*, APHA (Pt-Co), Gardner Color sample name of up to 10 characters can be keyed in.
Power requirement	AC Power Supply : 130VA
Dimension / Weight	400 x 400 x 190mm (12.2kg)
