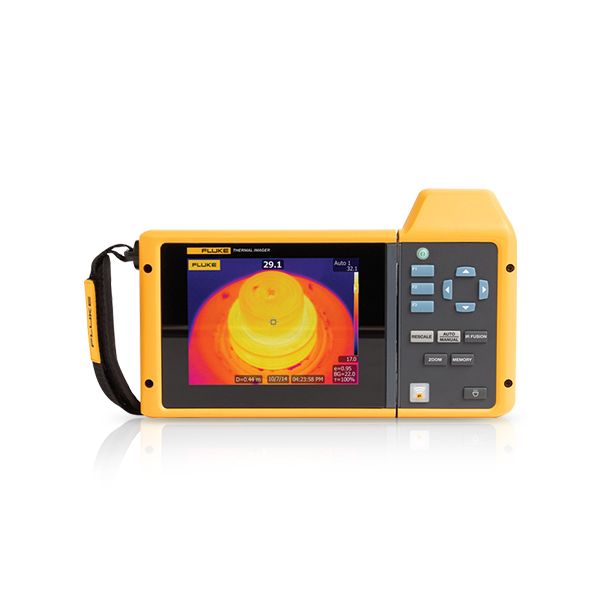

Fluke-TIX500-9Hz กล้องถ่ายภาพความร้อนอินฟราเรด

SKU
Fluke-TIX500-9Hz
฿455,570.00
Pre-Order Item
สินค้าหมด

กล้องถ่ายภาพความร้อนอินฟราเรด
ช่วงการวัดอุณหภูมิ -20 ถึง 650℃
Resolution : 320 x 240 (Super Resolution : 640 x 480)
D:S 753:1 / Field of view : 24°H x 17°V
Focus, Frame rate: 9 Hz
โหมดโฟกัส LaserSharp® Auto Focus | MultiSharp™ Focus
ขนาดหน้าจอ LCD 5.7" Touchscreen หมุนได้ 240°
บันทึกข้อมูลได้ถึง 4GB ผ่าน Micro SD Card, Internal Memory, USB
Fluke Cloud™ เพื่อการสำรองข้อมูลและเรียกใช้งานได้ทุกที่
PC Software Fluke Connect® SmartView®

สินค้ายกเลิกจำหน่าย รุ่นทดแทน Fluke-TIX501-9Hz
เพิ่มสินค้าเปรียบเทียบ

Fluke-TIX500-9Hz กล้องถ่ายภาพความร้อนอินฟราเรด

กล้องถ่ายภาพความร้อนรุ่น Professional ที่ให้รายละเอียดของวัตถุคมชัด หน้าจอ LCD ทัชสกรีนขนาด 5.7 นิ้ว สามารถหมุนได้ถึง 240° เทคโนโลยีเซนเซอร์ IR-Fusion® เทคโนโลยี พร้อมโหมดโฟกัส LaserSharp® Auto Focus, MultiSharp™ Focus สามารถบันทึกข้อมูลได้ถึง 4GB ผ่าน Micro SD Card, Internal Memory, USB drive และ Fluke Cloud™ PC Software Fluke Connect® SmartView®

MultiSharp MultiSharp MultiSharp MultiSharp
▲Manual focus ▲MultiSharp™ Focus ▲Manual focus ▲MultiSharp™ Focus
Passive autofocus systems may only capture the near-field  subject (fence). LaserSharp® Auto Focus captures your designated target. Regular resolution. Regular resolution.
▲Passive autofocus systems may only
capture the near-field  subject (fence).
▲LaserSharp® Auto Focus
captures your designated target.
▲Regular resolution. ▲SuperResolution.
Get 4x the pixel data / 640 x 480 image.
Key features
Detector resolution
  • 320 x 240 (76,800 pixels)
  • 640 x 480 with SuperResolution
SuperResolution Yes, on camera and in software. Captures and combines 4x the data to create a 640 x 480 image
IFOV with standard lens (spatial resolution) 1.31 mRad, D:S 753:1
Field of view 24°H x 17°V
Minimum focus distance 15 cm (approx. 6 in)
IR-Fusion® technology Adds the context of the visible details to your infrared image
MultiSharp™ Focus Focused near and far, throughout the field of view
LaserSharp® Auto Focus For consistently in-focus images. Every. Single. Time.
Laser distance meter Calculates distance to the target for precisely focused images and displays distance on screen
Advanced manual focus Yes
Wireless connectivity
  • PC.
  • iPhone® and iPad® (iOS 4s and later)
  • Android™ 4.3 and up, and WiFi to LAN (where available)
Fluke Connect® app compatible Connect your camera to your smartphone and images taken automatically upload to the Fluke Connect app for saving and sharing
Fluke Connect® Assets optional software Assign images to assets and create work orders. Easily compare measurement types in one location.
Fluke Connect® Instant Upload Connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC
Fluke Connect® tool compatible Connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen
IR-Fusion® technology Adds the context of the visible details to your infrared image
AutoBlend™ mode 100%, 75%, 50%, 25% IR plus full visible on camera
Picture-In-Picture (PIP) 100%, 75%, 50%, 25% IR
Touchscreen display (capacitive) 5.7 inch (landscape) 640 x 480 LCD
Rugged, ergonomic design 240° rotatable (articulating) lens
Thermal sensitivity (NETD)** ≤0.05°C at 30 °C target temp (50 mK)
Level and span Smooth auto and manual scaling
Fast auto toggle between manual and auto modes Yes
Fast auto-rescale in manual mode Yes
Minimum span manual / auto mode 2.0°C / 3.0°C
Built-in digital camera (visible light) 5MP
Frame rate 9 Hz
LED light (torch) Yes
Digital zoom 2x and 4x
Data storage and image capture
Extensive memory options
  • Removable 4 GB micro SD memory card
  • 4 GB internal flash memory
  • Save to USB flash drive capability
  • Upload to Fluke Cloud™ for permanent storage
Image file formats (Fluke Connect®) Bitmap, GIF, JPEG, PNG, TIFF
Temerature Measurement
Range -20 to 650°C
Accuracy ±2°C or 2%
General
Color palettes 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Protection IEC 60529:IP54 (dust & water spray), 1 meter drop test with standard lens
Power requirement Lithium ion smart battery pack with five-segment LED display x 2
Dimension / Weight 273 x 159 x 97mm / 1.54kg
SKUFluke-TIX500-9Hz
Weight1540.000000
ขนาด273 x 159 x 97 mm
ผู้ผลิตFluke
บันทึกข้อมูลได้
Field of View (FOV)24° x 17°
Detector Resolution320 x 240
Resolution 1.31 mRad, D:S 753:1
Measurement Range-20 to 650℃
ฟังก์ชั่นNo
Power SupplyTwo lithium ion smart battery packs with five-segment LED display to show charge level
ระดับการป้องกันIP54
Sensor Output InterfaceUSB
Accuracy± 2 °C
คะแนนของคุณ

Accessories Included:

  • Thermal imager with standard infrared lens
  • AC power supply and battery pack charger (including universal AC adapters)
  • Two rugged lithium ion smart battery packs
  • USB cable
  • HDMI video cable
  • Rugged, hard carrying case
  • Adjustable neck and hand strap
