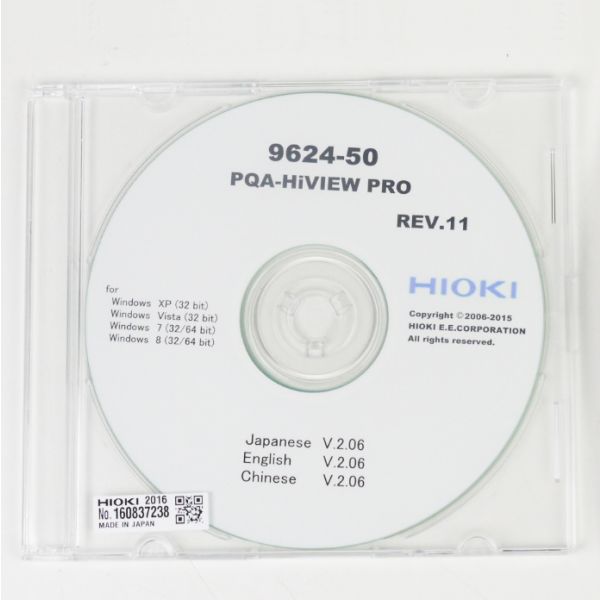

HIOKI 9624-50 PQA-HiVIEW PRO

SKU

HIOKI-9624-50

Skip to the end of the images gallery

Skip to the beginning of the images gallery

฿0.00

Discontinued | ยกเลิกจำหน่าย

สินค้าหมด

โปรแกรมวิเคราะห์ข้อมูลและกราฟ รุ่น PQA-HiVIEW PRO
ระบบปฏิบัติการที่รองรับ Window XP, Vista, 7
สำหรับเครื่องวิเคราะห์ไฟฟ้า PW3198, 3197 และ 3196
HIOKI, Japan

สินค้ายกเลิกจำหน่าย

หมวดหมู่: อุปกรณ์เสริม, HIOKI, เครื่องมือวัดยกเลิกจำหน่าย

รายละเอียด

HIOKI 9624-50 PQA-HiVIEW PRO

Analysis Capabilities

Display		PW3198	PW3197	PW3196
Event list		✓	✓	✓
TIME PLOT screens	RMS (Voltage, Current, others) Voltage	✓	✓	✓
TIME PLOT screens	Harmonic and inter-harmonic fluctuations	✓	—	✓
EVENT screens	Voltage waveforms Current waveforms	✓	✓	✓
	Transient over voltage waveforms	✓	—	✓
	High-order Harmonic Voltage waveforms	✓	—	—
	Vector, DMM, Harmonic Graph, Harmonic List	✓	—	✓
ITIC	Tolerance curve	✓	—	✓
Flicker		✓	—	✓
EVENT RMS value fluctuations		✓	✓	✓
Inrush Current		✓	✓	—
Demand and energy consumption		✓	✓	✓
EN50160	Overview, Harmonic, Measurement Results Category	✓	—	✓
EN50160	Signaling	—	—	✓
Settings screens		✓	✓	✓

Specifications

Compatible devices	POWER QUALITY ANALYZER PW3198, 3197, 3196
Operating environment	Computer running under Windows XP/Vista (32-bit), or Windows 7 (32-bit/64-bit)
Screen display	System, Time plot, Event list, Event data, Cursor function, Fluctuation graph of event voltage, Graph of event inrush currnet (at only PW3198, 3197), Integrated power, Demand
Copy function	Text data, Screen copy to clip-boad
Print function	Screen image, A4/ letter size, preview
CSV convert function	Time plot, Event waveform, Fluctuation of event voltage, Inrush current of event (at only PW3198, 3197), Flicker graph (at only PW3198, 3196), Demand, Integrated power
Report Generation	Auto output: RMS voltage fluctuation graph, Worst case, Maximum/ minimum value list, Voltage total harmonic distortion percentage graph, All event waveforms, Detailed list of all events, other custom output, or detailed output
Only for the PW3198 and PW3196	[Screen display] Voltage, Transient waveform, Vector, DMM, Harmonic, Zero-, positive- and negative-phase calculations, Flicker graph, Cursor, High harmonic analysis orders (PW3198)
	[Integrated Power Calculation] Analysis period: 1 - 35 days (PW3198)/ 31 days (3196), Graph, Consumption/ regeneration value, Cursor measurement, Maximum integrated power
	[Demand Calculation] Demand period: 5 - 30 minutes, 1 - 12 hours, Analysis period: 1 - 35 days (PW3198)/ 31 days (3196), Demand graph of consumption value, Average demand, Peak demand, Load ratio
	[ITIC Window] Event points are plotted on a tolerance curve (event duration versus swell, dip or interruption voltage percentage), Voltage percentage, Violation count display, Tolerance curve selection
	[EN50160 Screen] Classification by overview, harmonic, signaling detail (3196) or measurement results [Data Download] Via LAN
	[Saving settings] User-defined ITIC curves, Classification settings for measurement results, or other

รายละเอียดเพิ่มเติม

SKU	HIOKI-9624-50
Weight	100.000000
ขนาด	0
ผู้ผลิต	Hioki
