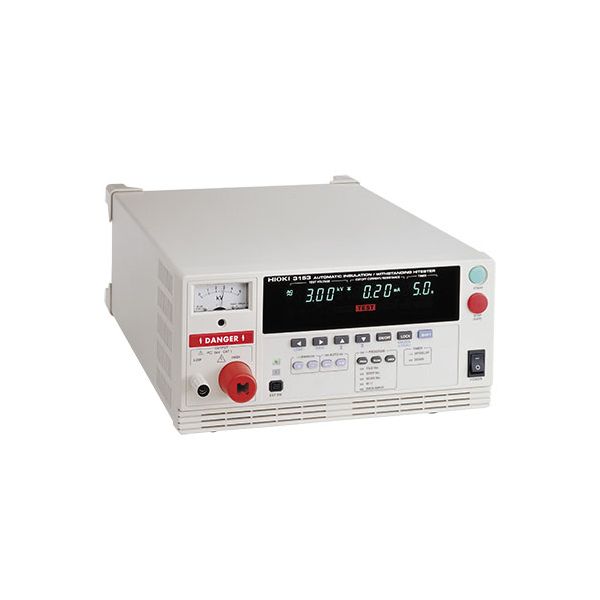

HIOKI เครื่องทดสอบความเป็นฉนวน INSULATION / WITHSTANDING Test series 3153 | 3159-02 | 3174

เครื่องทดสอบความเป็นฉนวนชุดนี้ถูกออกแบบมาสำหรับการวัดค่าความต้านทานของฉนวนและทนทานต่อการทดสอบแรงดันไฟฟ้าจากอุปกรณ์อิเล็คทริคและชิ้นส่วนต่าง ๆ ที่ได้รับมาตรฐานความปลอดภัย โดยตัวเครื่องมีฟังก์ชั่นอัตโนมัติอันหลากหลาย ซึ่งจะช่วยประหยัดเวลาและทุ่นแรงให้กับคุณ จึงมั่นใจได้ในการทดสอบภายใต้เงื่อนไขมากมาย

A Full Line-up of Models to Suit Various Needs
3153 3159-02 3174
Voltage Withstand Testing
AC: 0.20 to 5.00 kV, 500 VA
DC: 0.20 to 5.00 kV, 50 VA
0.01 to 100.0 mA		 Insulation Testing
DC: 50 to 1200 V
0.10 to 9999 MΩ		 Voltage Withstand Testing
AC: 0 to 2.5 kV/5.0 kV, 500 VA
0.01 to 120.0 mA		 Insulation Testing
DC: 500/1000 V
0.5 to 2000 MΩ		 Voltage Withstand Testing
AC: 0.2 V to 5.00 kV
0.01 mA to 20.0 mA
  • Insulation and AC/DC continuous voltage withstand testing
  • Safety standards compliance testing
  • Stores up to 10 sets of test conditions
    (10 each for insulation and voltage withstand)
  • Zero-V Switching (voltage withstand testing)
  • Electrical Discharge function
    (DC voltage withstand, insulation testing)
  • Automated testing support
  • Interlock Protect function
  • Remote controllable
  • Insulation and voltage withstand testing
  • Safety standards compliance testing
  • Stores up to 10 sets of test conditions
    (10 each for insulation and voltage withstand)
  • Voltage comparator functions (voltage withstand testing)
  • Zero-V Switching (voltage withstand testing)
  • Electrical Discharge function (insulation testing)
  • Automated testing support
  • Interlock Protect function
  • Remote controllable
  • Not CE marked
  • Continuous testing of insulation (500/1000 V) and withstand voltage (100 VA transformer capacity)
  • Full remote operation when used in combination with the Safety Test Data Management Software 9267
  • Save up to 8 test settings each for the withstanding and insulation testing modes
  • Precise test voltage without power voltage dependency is generated using the PWM method
Voltage Withstand Testing
Models 3153
AUTOMATIC INSULATION / WITHSTANDING HiTESTER		 3159-02
INSULATION / WITHSTANDING HiTESTER		 3174
AC AUTOMATIC INSULATION / WITHSTANDING HiTESTER
Measurement AC DC AC
Output voltage 0.20 to 5.00 kV 0.20 to 5.00 kV 0.2 V AC to 5.00 kV AC
Voltage Output method PWM switching method
(zero-switching)		 PWM switching method Zero-switching PWM switching method
(zero-switching)
Transformer capacity 500 VA (rated 30 minutes) N/A 500 VA (rated 30 minutes) AC: 100 VA (continuous)
Output capacity N/A 50 VA (continuous) N/A N/A
Voltage adjustment method Digital setting (0.01 kV setting resolution) Manual adjustment Digital setting (0.01 kV setting resolution)
Output voltage accuracy ±1.5% of setting voltage ±2 dgt. N/A ±1.5% of setting voltage ±2 dgt.
Fluctuation rate ±7% or less
(max. 5 kV at 100 mA → no load: Resistance load) *2		 ±16% or less
(max. 5 kV at 10 mA → no load: Resistance load) *2		 N/A 15% or less
(At Maximum rated load → no load converge to set value within 1 second)
Voltage waveform Sine wave
(5% or less distortion, unloaded)		 N/A Power waveform Sine wave
Voltage frequency 50 Hz/60 Hz, ±0.2% N/A Power synchronization 50 Hz/60 Hz, ±0.2%
Output ripple voltage N/A 6% of output voltage or less
(at 5 kV DC, 10 mA, resistive load)		 N/A N/A
Output current 100 mA AC*1 10 mA DC (continuous) N/A 20 mA AC
Voltmeter Average rectified effective value display Average display Average rectified effective value display True RMS
Digital: 0.00 to 5.00 kV (full scale)
Accuracy: ±1.5% f.s.
Analog: 0 to 5 kV (full scale)
Accuracy: ±5% f.s.		 Digital: 0.00 to 5.00 kV (full scale)
Accuracy: ±1.5% f.s.
Analog: 0 to 5 kV (full scale)
Accuracy: ±5% f.s.a		 Accuracy: ±1.5% f.s.
Current measurement
range		 0.01 mA to 100.0 mA AC 0.01 mA to 10.0 mA DC 0.01 mA to 120.0 mA AC 0.01 mA to 20.0 mA AC
Indicated value range 10 or 100 mA 10 mA 2, 8, 32 or 120 mA 10 mA/20 mA
Measurement
resolution		 0.00 to 10.00 or 0.01 mA (10-mA range)
10.1 to 100.0 or 0.1 mA (100-mA range, AC only)		 0.01 mA (2- or 8-mA range), 0.1 mA (32-mA
range), 1 mA (120-mA range)		 0.00 mA to 9.99 mA, 0.01 mA (10-mA range)
0.0 mA to 20.0 mA, 0.1 mA (20-mA range)
Current measurement
accuracy		 ± (2% rdg. + 5 dgt.) common to each range *3 ± (3% f.s. + 20 µA) for all ranges (at 5%
power distortion or less)		 ±2% rdg. ±0.05 mA (10 mA range)
±2% rdg. ±0.5 mA (20 mA range)

*1. Time vs. Output Voltage (at 23˚C ambient)
*2. Unloaded = 40 MΩ load (instrument input impedance)
*3. Plus scanner accuracy, when used.

Insulation Resistance Testing
Model 3153 3159-02 3174
Test voltage Output voltage: Positive polarity 50 to 1200 V DC
Voltage adjustment method: Digital setting (1 V resolution)
Output voltage accuracy: ±1.5% ±2 dgt. of setting level		 Rated voltage: 500 or 1000 V DC
Unloaded voltage: 1 to 1.2 times
rated voltage		 Rated voltage: 500 or 1000 V DC
Unloaded voltage: 1 to 1.2 times
rated voltage
Rated measurement current 1 mA 1 to 1.2 mA 1 to 1.2 mA
Short-circuit current 200 mA or less 4 to 5 mA (500 V)
2 to 3 mA (1000 V)		 4 to 5 mA (500 V)
2 to 3 mA (1000 V)
Voltmeter Average display
Digital: 0 to 1200 V DC (full scale)
Accuracy: ±1.5% rdg. ±2 dgt.
Analog: 0 to 1200 V DC
Accuracy: ±5% f.s. (5 kV full scale)		 Average display
Digital: 0 to 1200 V DC (f.s.)		 Digital meter
0 to 1000 V DC (f.s.)
Accuracy: ±30 V
Analog: N/A Analog: N/A
Measurement range / accuracy 0.100 to 1.049 MΩ
1.05 to 10.49 MΩ*1
10.5 to 104.9 MΩ*1
105 to 9999 MΩ*1
Fundamental accuracy: ±4% rdg.*2		 0.5 to 999 MΩ (500V)/±4% rdg.
1 to 999 MΩ (1000V)/±4% rdg.
1000 to 2000 MΩ /±8% rdg.		 0.5 M to 999 MΩ (500 V),
1 MΩ to 999 MΩ (1000 V): ±4% rdg.
1000 MΩ to 2000 MΩ: ±8% rdg.

*1. Measurement range changes according to test voltage.
*2. Plus scanner accuracy, when used.
* Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year

SKUHioki-3153
Weight18000.000000
ขนาด320 x 155 x 480
ผู้ผลิตHioki
บันทึกข้อมูลไม่
Resolution depend on model
Measurement Range
3153 3159-02 3174
Voltage Withstand Testing
AC: 0.20 to 5.00 kV, 500 VA
DC: 0.20 to 5.00 kV, 50 VA
0.01 to 100.0 mA		 Insulation Testing
DC: 50 to 1200 V
0.10 to 9999 MΩ		 Voltage Withstand Testing
AC: 0 to 2.5 kV/5.0 kV, 500 VA
0.01 to 120.0 mA		 Insulation Testing
DC: 500/1000 V
0.5 to 2000 MΩ		 Voltage Withstand Testing
AC: 0.2 V to 5.00 kV
0.01 mA to 20.0 mA
ฟังก์ชั่น
3153 3159-02 3174
  • ■ Insulation and AC/DC continuous voltage withstand testing
  • ■ Safety standards compliance testing
  • ■ Stores up to 10 sets of test conditions
    (10 each for insulation and voltage withstand)
  • ■ Zero-V Switching (voltage withstand testing)
  • ■ Electrical Discharge function
    (DC voltage withstand, insulation testing)
  • ■ Automated testing support
  • ■ Interlock Protect function
  • ■ Remote controllable
  • ■ Insulation and voltage withstand testing
  • ■ Safety standards compliance testing
  • ■ Stores up to 10 sets of test conditions
    (10 each for insulation and voltage withstand)
  • ■ Voltage comparator functions (voltage withstand testing)
  • ■ Zero-V Switching (voltage withstand testing)
  • ■ Electrical Discharge function (insulation testing)
  • ■ Automated testing support
  • ■ Interlock Protect function
  • ■ Remote controllable
  • ■ Not CE marked
  • ■ Continuous testing of insulation (500/1000 V) and withstand voltage (100 VA transformer capacity)
  • ■ Full remote operation when used in combination with the Safety Test Data Management Software 9267
  • ■ Save up to 8 test settings each for the withstanding and insulation testing modes
  • ■ Precise test voltage without power voltage dependency is generated using the PWM method
Power Supplydepend on model
ระดับการป้องกันNo
Sensor Output InterfaceEXT I/O, EXT SW, RS-232C, GP-IB
Accuracydepend on model
คะแนนของคุณ

PDF Download PDF Download

Accessories Included:

  • H.V. Test lead 9615 (high voltage side and return, 1 each) ×1
  • Power cord ×1
  • Instruction manual ×1
  • Disconnection prevention plate ×1

Options:

  • REMOTE CONTROL BOX (SINGLE) 9613
  • REMOTE CONTROL BOX (DUAL) 9614
  • H.V. TEST LEAD 9615
  • SAFETY TEST DATA MANAGEMENT SOFTWARE 9267
  • RS-232C CABLE 9637
