Hioki PD3129-10 เครื่องวัดลำดับเฟส (Phase Rotation Meters)

SKU
PD3129-10
฿8,530.00
มีสินค้า

เครื่องวัดเฟสแบบ non-contact voltage detection
ช่วงการวัด 70V ถึง 1000V
คลิปหนีบขนาด ø7 ถึง 40 mm
ไฟ LED แสดงลำดับเฟส พร้อมเสียงเตือน
แม่เหล็กด้านหลังใช้งานได้สะดวก
มาตรฐาน CAT III 1000V, CAT IV 600V
ยี่ห้อ Hioki, Japan

บริษัท เลกะ คอร์ปอเรชั่น จำกัด
ตัวแทนจําหน่าย HIOKI ประเทศไทย

เพิ่มสินค้าเปรียบเทียบ

Hioki PD3129-10 เครื่องวัดลำดับเฟส

HIOKI PD3129-10 เครื่องวัดลำดับเฟสแบบไม่สัมผัสกับโลหะ ด้วยเทคโนโลยีการวัดที่มีประสิทธิภาพและการคำนึงถึงความปลอดภัยของผู้ใช้งานเป็นอันดับแรก ซึ่งในการวัดลำดับเฟสนั้นผู้ใช้งานต้องดำเนินการในสถานที่ ๆ มีไฟฟ้าในการขยายโรงงานหรือการปรับปรุงระบบต่าง ๆ โดย PD3129-10 นั้นถูกออกแบบให้เป็นเครื่องวัดลำดับเฟสที่ไม่มีโลหะผสมอยู่ในคลิปหนีบ นอกจากนี้ยังมีการแสดงลำดับของการหมุนด้วยลูกศรสีเขียวสำหรับ normal phase ที่ช่วยให้ง่ายต่อการทำงาน

PHASE DETECTOR
แม่เหล็กด้านหลังเพื่อการทำงานอย่างมีประสิทธิภาพ
ใช้งานง่ายด้วยลูกศรแสดงลำดับ normal phase
ปลอดภัยด้วยคลิปหนีบแบบไร้โลหะผสม
Functions Phase detection (positive and negative)
Voltage detetion method Static induction
Voltage range 70 to 1000 V AC (50/60 Hz) (sine wave, continuous input)
Frequency range 45 Hz to 66 Hz
Object to be connected 7 mm to 40 mm of insulated wiring

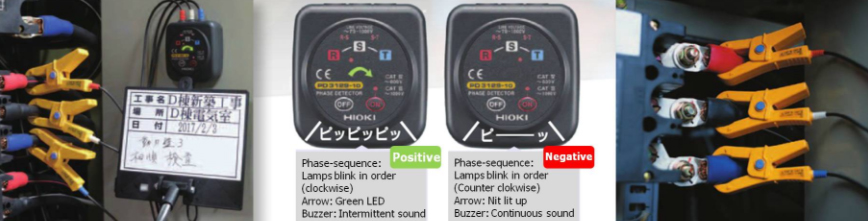

Display Phase detection:
Positive; 4 LEDs lit in clockwise order and the buzzer sounds intermittently, green arrow lights up
Negative; 4 LEDs lit in counterclockwise order and the buzzer sounds continuously
Battery check function Power ON lamp: lights up (Power On), blinks (Battery Low)
Auto power off Auto shut off if no activity is detected after power is turned ON for 15 minutes
Power requirement Battery AA x 2 (continuous use: 70 hr)
Dimensions/ Weight 70 x 75 x 30 mm/ 240 g (Cord length: 0.7 m)
SKUPD3129-10
Weight240.000000
ขนาด70 x 75 x 30mm
ผู้ผลิตHioki
บันทึกข้อมูลไม่
Resolution N/A
Measurement Range70 to 1000 VAC/ 45 to 66Hz
ฟังก์ชั่น
  • Green LED arrow clearly shows phase derection, perfect for visual reports
  • Rotating LED indicator shows the phase sequence for a 3-phase power supply at a glance
  • Intermittent beeps signal positive phase, continuous tone signals reverse phase
  • Magnetic base allows the instrument to be secured on a distribution panel
  • CAT IV 600V, CAT III 1000V
  • Auto power off
  • Battery check
Power SupplyBattery Alkaline AA x 2
ระดับการป้องกันNo
Sensor Output InterfaceNo
AccuracyN/A
คะแนนของคุณ

เครื่องวัดลำดับไฟสามเฟส HIOKI PHASE DETECTOR

ลำดับเฟสในระบบไฟฟ้ากระเเสสลับ มีความสำคัญเเละจำเป็นสำหรับการใช้งานอุปกรณ์เครื่องกลไฟฟ้ากระเเสสลับ โดยเฉพาะมอเตอร์ไฟฟ้ากระเเสสลับสามเฟส หากการเรียงลำดับเฟสไม่ถูกต้อง เช่น มอเตอร์ต้องการลำลับเฟสในทางบวก (ตามเข็มนาฬิกา clockwise) เเต่ป้อนลำดับเฟสในทางลบ

Accessories Included:

  • PD3129-10
  • Carrying case
  • Strap
  • Spiral tube
  • Instruction manual
