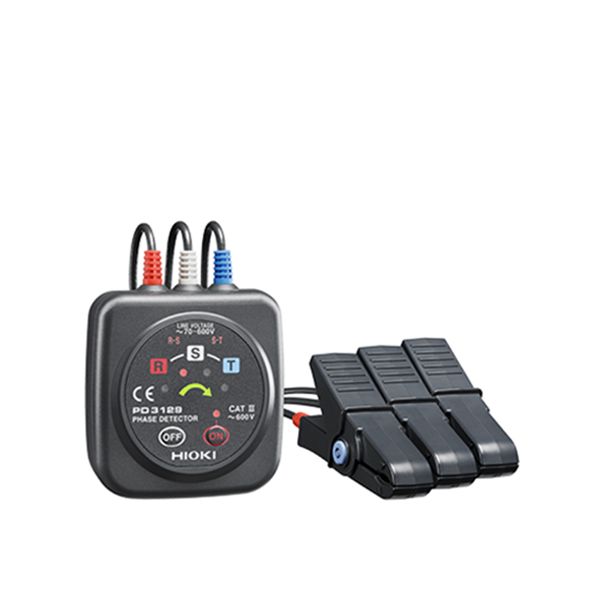

Hioki-PD3129 เครื่องวัดลำดับเฟส (Phase Rotation Meter)

SKU
PD3129
฿7,400.00
มีสินค้า

เครื่องวัดเฟสแบบ non-contact voltage detection
ช่วงการวัด 70V ถึง 600V
คลิปหนีบขนาด ø2.4 ถึง 17 mm
ไฟ LED แสดงลำกับเฟส พร้อมเสียงเตือน
แม่เหล็กด้านหลังใช้งานได้สะดวก
มาตรฐาน CAT III 600V
ยี่ห้อ Hioki, Japan

เพิ่มสินค้าเปรียบเทียบ

Hioki-PD3129 เครื่องวัดลำดับเฟส

HIOKI PD3129 เครื่องวัดลำดับเฟสแบบไม่สัมผัสกับโลหะ ด้วยเทคโนโลยีการวัดที่มีประสิทธิภาพและการคำนึงถึงความปลอดภัยของผู้ใช้งานเป็นอันดับแรก ซึ่งในการวัดลำดับเฟสนั้นผู้ใช้งานต้องดำเนินการในสถานที่ ๆ มีไฟฟ้าในการขยายโรงงานหรือการปรับปรุงระบบต่าง ๆ โดย PD3129 นั้นถูกออกแบบให้เป็นเครื่องวัดลำดับเฟสที่ไม่มีโลหะผสมอยู่ในคลิปหนีบ นอกจากนี้ยังมีการแสดงลำดับของการหมุนด้วยลูกศรสีเขียวสำหรับ normal phase ที่ช่วยให้ง่ายต่อการทำงาน

PHASE DETECTOR
แม่เหล็กด้านหลังเพื่อการทำงานอย่างมีประสิทธิภาพ
ใช้งานง่ายด้วยลูกศรแสดงลำดับ normal phase
ปลอดภัยด้วยคลิปหนีบแบบไร้โลหะผสม
Functions Phase detection (positive and negative)
Voltage detetion method Static induction
Voltage range 70 to 600 V AC (50/60 Hz) (sine wave, continuous input)
Frequency range 45 Hz to 66 Hz
Object to be connected 2.4 mm to 17 mm of insulated wiring
Display Phase detection:
Positive; 4 LEDs lit in clockwise order and the buzzer sounds intermittently, green arrow lights up
Negative; 4 LEDs lit in counterclockwise order and the buzzer sounds continuously
Battery check function Power ON lamp: lights up (Power On), blinks (Battery Low)
Auto power off Auto shut off if no activity is detected after power is turned ON for 15 minutes
Power requirement Battery AA x 2 (continuous use: 70 hr)
Dimensions/ Weight 70 x 75 x 30 mm/ 200 g (Cord length: 0.7 m)

SKUPD3129
Weight200.000000
ขนาด70 x 75 x 30mm
ผู้ผลิตHioki
บันทึกข้อมูลไม่
Resolution N/A
Measurement Range70 to 600 VAC/ 45 to 66Hz
ฟังก์ชั่น

Auto power off
Battery check

Power Supplyแบตเตอรี่ Alkaline AA x 2
ระดับการป้องกันNo
Sensor Output InterfaceNo
AccuracyN/A
คะแนนของคุณ

อุปกรณ์มาตรฐาน

  • ตัวเครื่อง
  • Carrying case
  • Strap
  • Spiral tube
  • คู่มือ
