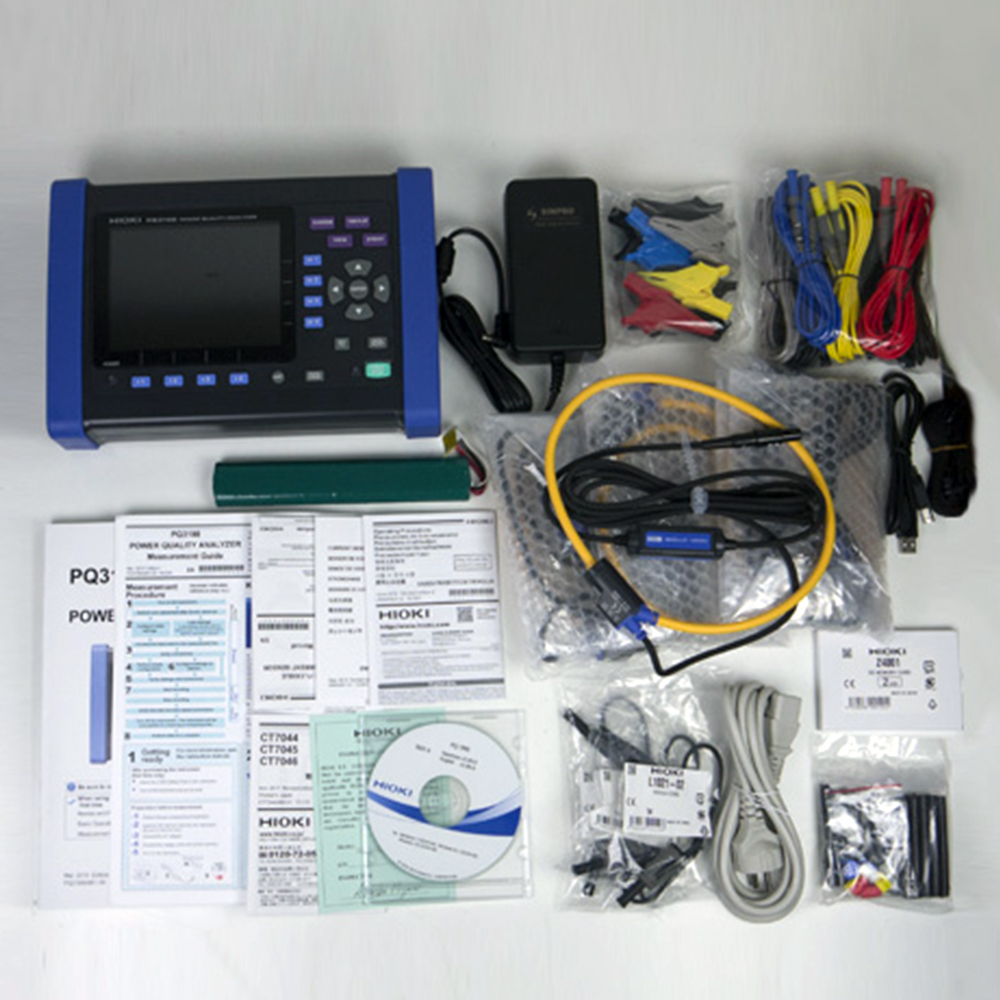

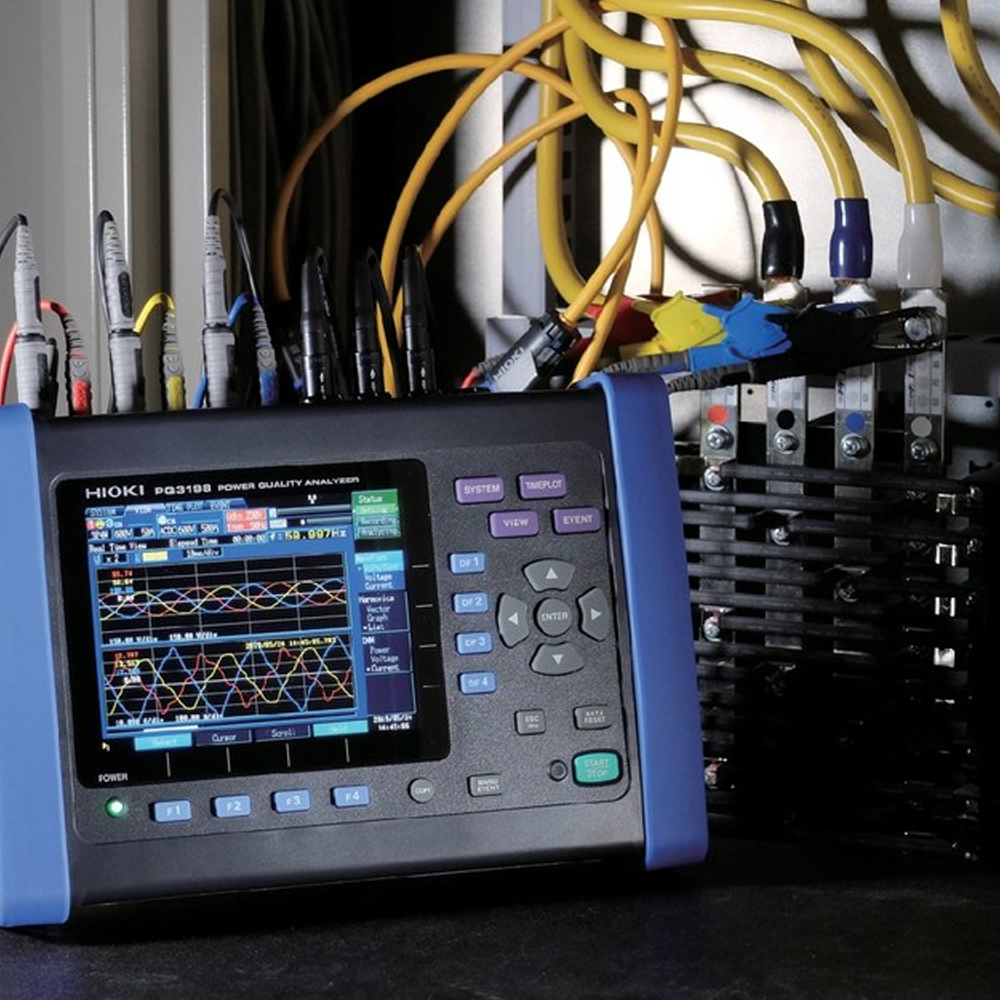

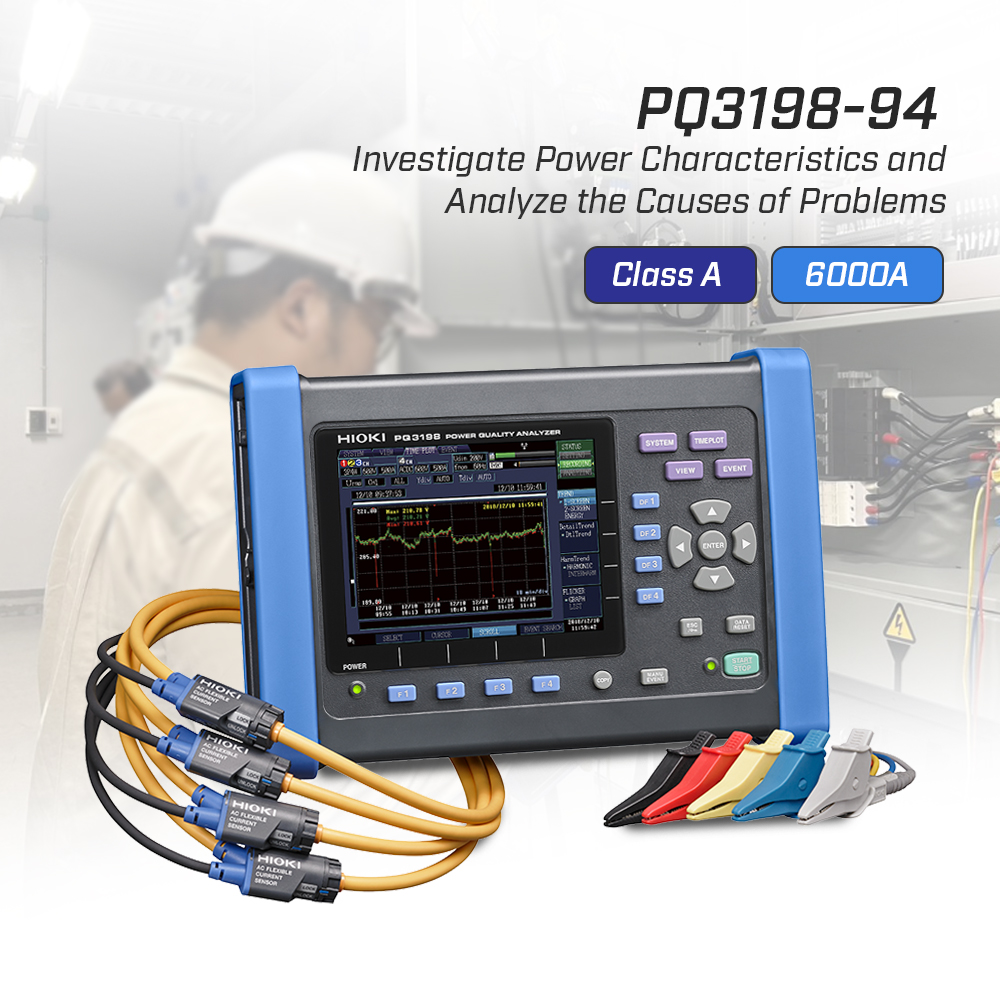

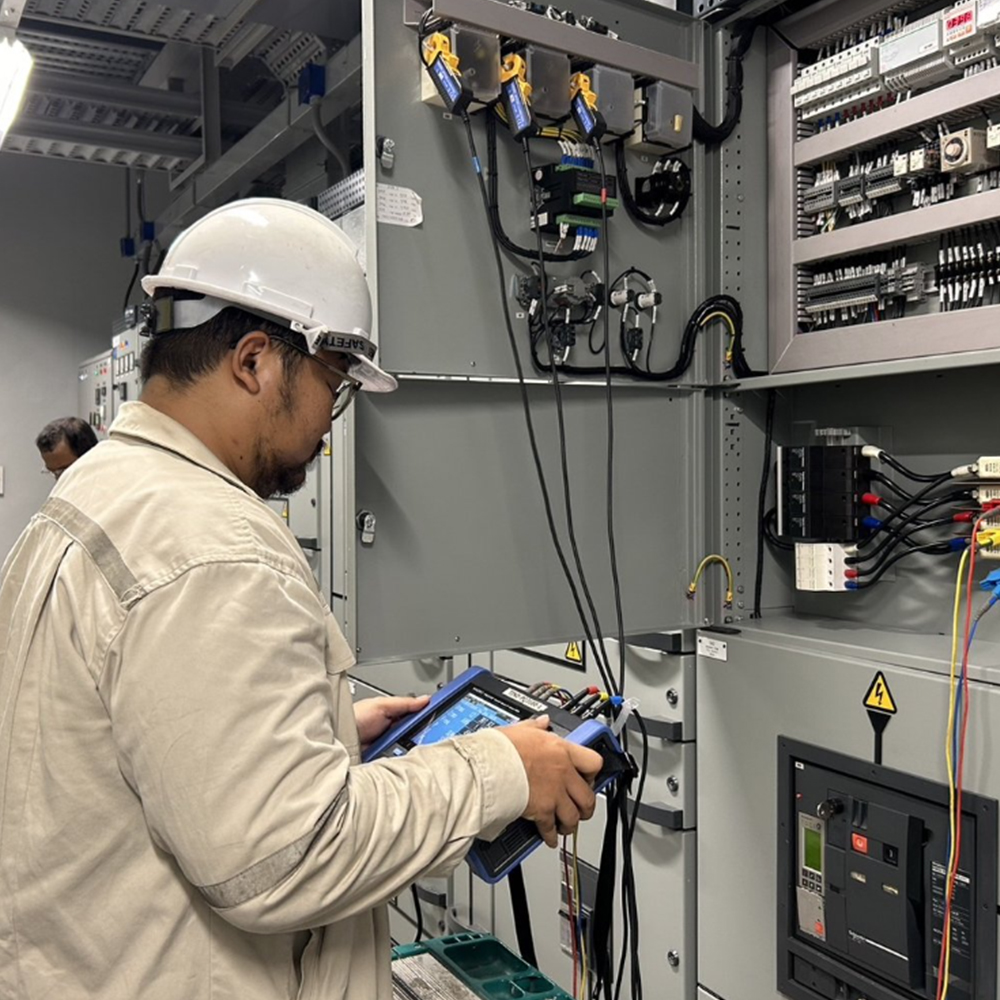

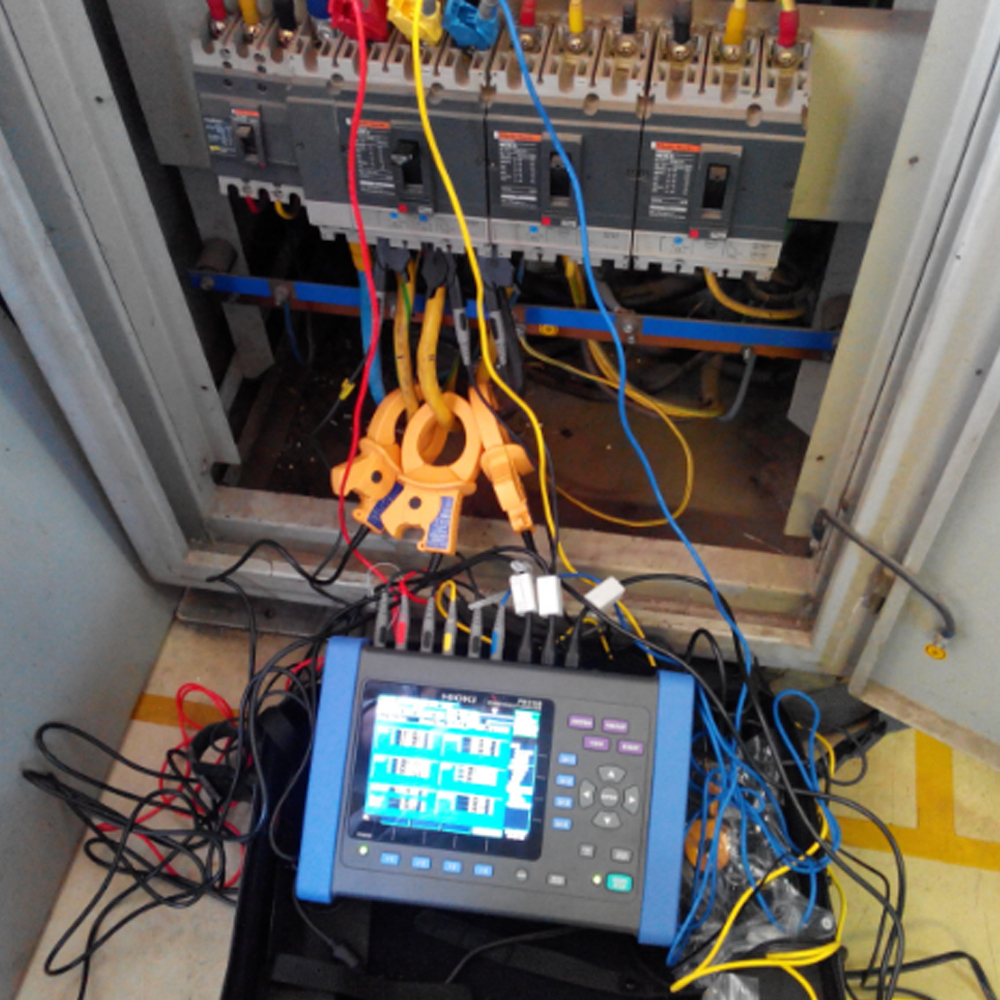

สินค้าเช่า | HIOKI PQ3198-94 Power Quality Analyzer เครื่องวิเคราะห์คุณภาพไฟฟ้า มาตรฐาน Class A

• 0°C to 30°C (32°F to 86°F) 95% RH or less (no condensation)
  When charging battery: 10°C to 30°C (50°F to 86°F)
• 30°C to 50°C (86°F to 122°F) 80% RH or less (no condensation)
  When charging battery: 30°C to 35°C (86°F to 95°F)

• -20°C to 30°C (-4°F to 86°F) 95% RH or less (no condensation)
• 30°C to 50°C (86°F to 122°F) 80% RH or less (no condensation)

(If the instrument will not be used for an extended period of time, remove the battery pack and store in a cool location [from -20°C to 30°C (-4°F to 86°F)].)

• Safety EN61010
• EMC EN61326 Class A

• Z1002 AC Adapter
  Rated supply voltage : 100 V AC to 240 V AC (Voltage fluctuations of ±10% from the rated supply voltage are taken into account.)
• Rated power supply frequency : 50 Hz/60 Hz
  Anticipated transient overvoltage: 2500 V
  Maximum rated power : 80 VA (When charging, including the AC adapter)
  35 VA (When charging, main unit only)
• Z1003 Battery Pack
  Rated supply voltage : 7.2 V DC
  Maximum rated power : 8 VA

• Charges the battery regardless of whether the instrument is on or off.
• Charging time 5 hours 30 minutes at a maximum (at 23°C, as a referential)

• Repeat recording function, 1 week: 55 weeks
• Repeat recording function, 1 day: 366 days
• Repeat recording function, off: 35 days

• ±0.3 s per day (instrument on, 23°C±5°C [73°F±9°F])
• ±1 s per day (instrument on, within operating temperature and humidity range)
• ±3 s per day (instrument off) (at 23°C, as a referential

• Voltage: 4 channels
• Current: 4 channels

• Voltage: Plug-in terminals (Safety terminals)
• Current: Dedicated connectors (Hioki PL14)

• Single-phase 2-wire: 1P2W
• Single-phase 3-wire: 1P3W
• 3-phase 3-wire 2-watt meter measurement: 3P3W2M
• 3-phase 3-wire 3-watt meter measurement: 3P3W3M
• 3-phase 4-wire: 3P4W
• 3-phase 4-wire 2.5 element: 3P4W2.5E
  In addition to one of the above, input CH4.
  (must be synchronized to reference channel during AC/DC measurement)

• Voltage input section: Isolated and differential inputs
• (Between U1,U2 and U3: channels not isolated, Between U1,U2 and U3 to U4: channels isolated)
• Current input section: Isolated input through a current sensor

• Voltage input section: 4 MΩ ±2%
• Current input section: 100 kΩ ±10%

• Voltage input section: 1000 V AC, ±600 V DC, 6000 V peak
• Current input section: 1.7 V AC/DC, 2.4 V peak

• Voltage input section: 600 V AC (Measurement categories IV), anticipated transient overvoltage 8000 V
• Current input section: Depends upon the current sensor being used

• Voltage and current, active power, etc. : 200 kHz
• Transient voltage measurement : 2 MHz

• RMS voltage and current: 16bit
• Transient voltage measurement: 12bit

• Voltage: 0.48 V to 780 V
• Current: 0.5% to 130% of range
• Power: 0.0% to 130% of range
• Measurement items other than the above: 0% to 130% of range

• Voltage: Less than 0.48 V; when the voltage RMS value is 0, the power value is set to 0.
• Current: Less than 0.5% f.s.; when the voltage RMS value is 0, the power value is set to 0.

• Voltage: 10 V AC to 780 V AC, 1 V DC to 600 V DC
• Current: 1% to 120% of range
• Power: 0.15% to 130% of range (with both voltage and current within effective measuring range)
  See separate specifications for harmonic measurement

• Voltage measurement: ±1200 V
• Transient voltage measurement: ±6.0000 kV
• Current measurement: ±400% of range
