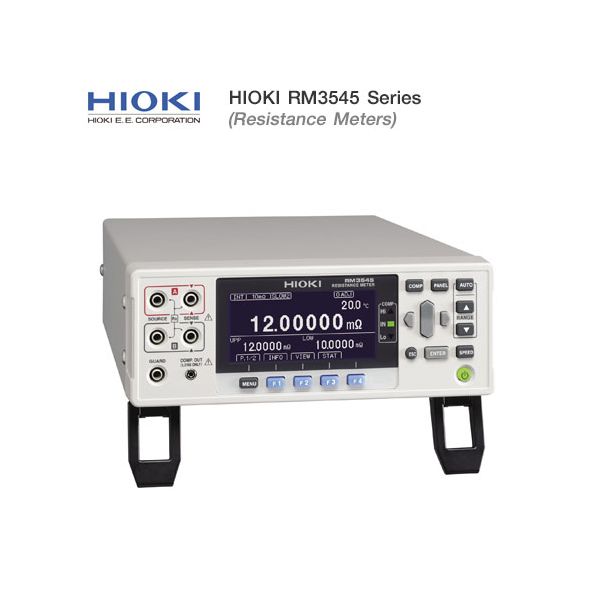

HIOKI-RM3545 Series เครื่องวัดมิลลิโอห์ม

SKU
RM3545 Series
มีสินค้า

HIOKI RM3545 Series เครื่องวัดมิลลิโอห์มแบบตั้งโต๊ะ
ช่วงการวัดกว้างตั้งแต่ 0.00µΩ ถึง 1200MΩ
ความแม่นยำสูง 0.006%
HIOKI, Japan

สินค้าลงทะเบียนโปรดติดต่อฝ่ายขาย

ชื่อสินค้า จำนวน
HIOKI RM3545-01 เครื่องวัดมิลลิโอห์ม Pre-Order Item
HIOKI RM3545-02 เครื่องวัดมิลลิโอห์ม

HIOKI RM3545 Series เครื่องวัดมิลลิโอห์ม

HIOKI RM3545 Series เป็นเครื่องวัดที่ให้ความแม่นยำสูง ที่จะช่วยให้คุณก้าวสู่การวัดในอีกระดับ ไม่ว่าจะเป็น การค้นคว้าและการผลิตเพื่อทดสอบความต้านทานของมอเตอร์และหม้อแปลง, ความต้านทานของพาวเวอร์รีเรย์, สวิตช์และตัวเชื่อมต่อ, ความต้านทานของสัญญาณรีเรย์และอุปกรณ์แม่เหล็ก

Model RM3545-01 RM3545-02
Measurement Range 10 mΩ to 1200 MΩ (12 Steps)
Function
  • With GP-IB interface
  • Low-power (LP) resistance measurement
  • D/A output
  • High/ Low current selection by range
  • Temperature input (temperature sensor terminal)
  • Extensive contact check functionality
  • Temperature conversion function: Useful in temperature-rise testing
  • Support Multiplexer
  • Auto-scanning and step scanning
  • Comparator judgments based on measurement results
  • Flexible pin assignments
  • Configuration using a computer
  • Acquiring Total judgment results from EXT. I/O
  • Low-power (LP) resistance measurement
  • D/A output
  • High/ Low current selection by range
  • Temperature input (temperature sensor terminal)
  • Extensive contact check functionality
  • Temperature conversion function: Useful in temperature-rise testing
Measurement speed FAST/ MED/ SLOW1/ SLOW2
Usage location Indoor use, pollution degree 2, up to a height of 2000 m
Withstand voltage 1.62 kV AC for 1 min. (with 10 mA cutoff current),
between all mains supply terminals and protective ground, interfaces, and measurement terminals
Compliant Standards Safety: EN61010, EMC: EN61326, EN61000-3-2, EN61000-3-3
Rated power supply voltage 100 V AC to 240 V ±10%
Dimensions/ Weight 215 x 80 x 306.5mm (2.5kg) 215 x 80 x 306.5mm (3.2kg)
SKURM3545 Series
ขนาด215 x 80 x 306.5mm
ผู้ผลิตHioki
บันทึกข้อมูลไม่
Resolution No
Measurement Range10 mΩ to 1000 MΩ (12 Steps)
ฟังก์ชั่น
  • Support Multiplexer
  • Auto-scanning and step scanning
  • Comparator judgments based on measurement results
  • Flexible pin assignments
  • Configuration using a computer
  • Acquiring Total judgment results from EXT. I/O
  • Low-power (LP) resistance measurement
  • D/A output
  • High/ Low current selection by range
  • Temperature input (temperature sensor terminal)
  • Extensive contact check functionality
  • Temperature conversion function: Useful in temperature-rise testing
Power Supply100 to 240 V AC, 50/60 Hz,
ระดับการป้องกันNo
Sensor Output InterfaceRS-232C, USB, External I/O, Support Multiplexer
Accuracy±
คะแนนของคุณ

Accessories Included:

  • Power cord ×1
  • Clip type lead L2101 ×1
  • temperature sensor Z2001 ×1
  • Male EXT I/O connector ×1
  • Instruction manual ×1
  • Application disc ×1
  • USB cable (A-to-B type) ×1
  • Spare fuse ×1
Measurement Leads / Input scanner
  • CLIP TYPE LEAD L2101
  • LED COMPARATOR ATTACHMENT L2105
  • PIN TYPE LEAD L2102
  • TEMPERATURE SENSOR Z2001
  • PIN TYPE LEAD L2103
  • MULTIPLEXER UNIT Z3003
  • 4-TERMINAL LEAD L2104
PC Communication
  • GP-IB CONNECTOR CABLE 9151-02
  • RS-232C CABLE 9637
