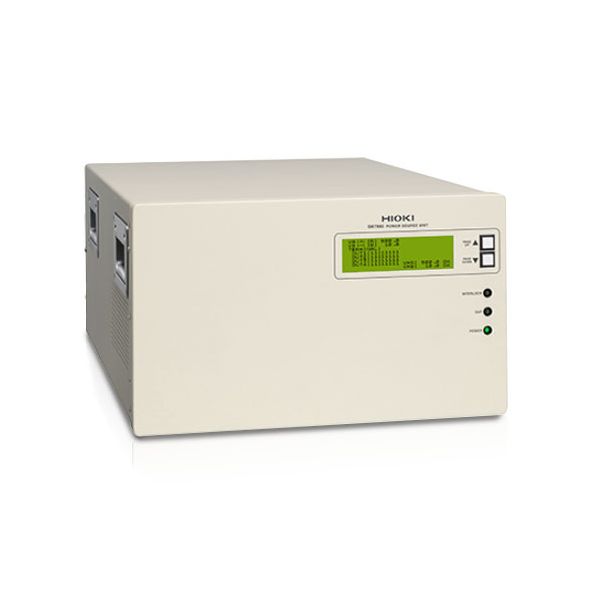

HIOKI SM7860 เครื่องจ่ายไฟสำหรับ SM7810 POWER SOURCE UNIT

SM7860 Series สามารถตั้งค่า output voltage แบบ dual-line ได้ตั้งแต่ 8 channels หรือ 16 channels ซึ่งทำให้สามารถรองรับได้สูงสุดถึง 32 channels โดยสามารถจ่ายแรงดันได้ 500 V / 1000 V สำหรับ SM7810 เมื่อใช้งานร่วมกันจะเป็นระบบที่เหมาะสำหรับการวัดค่า MLCC เป็นอย่างยิ่ง

SM7860-51	100V AC power supply	SM7860-61	220V AC power supply
SM7860-52	100V AC power supply	SM7860-62	220V AC power supply
SM7860-53	100V AC power supply	SM7860-63	220V AC power supply
SM7860-54	100V AC power supply	SM7860-64	220V AC power supply
SM7860-55	100V AC power supply	SM7860-65	220V AC power supply
SM7860-56	100V AC power supply	SM7860-66	220V AC power supply
SM7860-57	100V AC power supply	SM7860-67	220V AC power supply
SM7860-58	100V AC power supply	SM7860-68	220V AC power supply

SM7860 output channel configuration

SM7860	-51 / -61	-52 / -62	-53 / -63	-54 / -64	-55 / -65	-56 / -66	-57 / -67	-58 / -68
OUT1	+500V	+1000V	+500V	+1000V	+500V	+1000V	+10V	+500V
OUT2	+500V	+1000V	+500V	+1000V	discharge	discharge	+10V	+500V
OUT3	+500V	+1000V	-500V	-1000V	-500V	-1000V	+10V	+500V
OUT4	+500V	+1000V	-500V	-1000V	discharge	discharge	discharge	discharge
Overview	32 ch +500V	32 ch +1000V	32 ch ±500V	32 ch ±1000V	32 ch ±500V discharge	32 ch ±1000V discharge	32 ch +10V discharge	32 ch +500V
Line A
OUT1 Channels	8 ch	8 ch	8 ch	8 ch	8 ch	8 ch	8 ch	8 ch
OUT1 voltage range	+1.0 V to +500.0 V	+250.0 V to +1000.0 V	+1.0 V to +500.0 V	+250.0 V to +1000.0 V	+1.0 V to +500.0 V	+250.0 V to +1000 V	+1.0 V to +10.0 V	+1.0 V to +500.0 V
OUT2 Channels	8 ch	8 ch	8 ch	8 ch	8 ch	8 ch	8 ch	8 ch
OUT2 voltage range	+1.0 V to +500.0 V	+250.0 V to +1000.0 V	+1.0 V to +500.0 V	+250.0 V to +1000.0 V	discharge	discharge	+1.0 V to +10.0 V	+1.0 V to +500.0 V
Current limitation	±50 mA/ch	±10 mA/ch	±50 mA/ch	±10 mA/ch	±50 mA/ch	±10 mA/ch	±50 mA/ch	±50 mA/ch
Max output current	430 mA (200 VA)	100 mA (100 VA)	430 mA (200 VA)	100 mA (100 VA)	430 mA (200 VA)	100 mA (100 VA)	430 mA (4 VA)	430 mA (200 VA)
Line B
OUT1 Channels	8 ch	8 ch	8 ch	8 ch	8 ch	8 ch	8 ch	8 ch
OUT1 voltage range	+1.0 V to +500.0 V	+250.0 V to +1000.0 V	-1.0 V to -500.0 V	-250.0 V to -1000.0 V	-1.0 V to -500.0 V	-250.0 V to -1000 V	+1.0 V to +10.0 V	+1.0 V to +500.0 V
OUT2 Channels	8 ch	8 ch	8 ch	8 ch	8 ch	8 ch	8 ch	8 ch
OUT2 voltage range	+1.0 V to +500.0 V	+250.0 V to +1000.0 V	-1.0 V to -500.0 V	-250.0 V to -1000.0 V	discharge	discharge	discharge	discharge
Current limitation	±50 mA/ch	±10 mA/ch	±50 mA/ch	±10 mA/ch	±50 mA/ch	±10 mA/ch	±50 mA/ch	±50 mA/ch
Max output current	430 mA (200 VA)	100 mA (100 VA)	430 mA (200 VA)	100 mA (100 VA)	430 mA (200 VA)	100 mA (100 VA)	430 mA (4 VA)	430 mA (200 VA)

SPECIFICATIONS

Supported device	Super MΩ HiTester SM7810 Object to which voltage is applied: MLCC (the Multilayer Ceramic Capacitor)
Generation accuracy	Output voltage accuracy: ±2% of set value ± 0.5 V (with no load) Inter-channel error: ± 0.01 V or less (between outputs on the same line with no load)
Interfaces	GP-IB, RS-232C, EXT I/O
Power supply	SM7860-51 to -58: 100 V AC, SM7860-61 to -68: 220 V AC, 50/60 Hz, 860 VA
Dimensions and mass	425 mm (16.73 in) W × 249 mm (9.80 in) H × 581 mm (22.87 in) D, 47 kg (1657.9 oz) [SM7860-57 / -67] : 34 kg (1199.3 oz)
