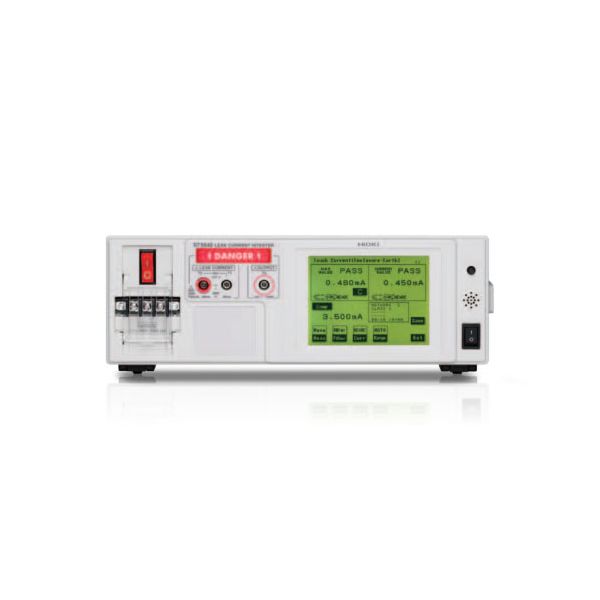

HIOKI ST5541 LEAK CURRENT HiTESTER

SKU
ST5541
฿0.00
Pre-Order Item
สินค้าหมด

เครื่องวัดกระแสไฟฟ้ารั่ว LEAK CURRENT HiTESTER
มีให้เลือก 2 รุ่น รองรับการใช้งาน ดังนี้
ST5540 มาตรฐาน Medical-use และการใช้งานทั่วไป
ST5541 มาตรฐานสำหรับการใช้งานทั่วไป
Built-in USB, RS-232C และ EXT I/O interface
HIOKI, JAPAN

สินค้าลงทะเบียนโปรดติดต่อฝ่ายขาย

HIOKI ST5541 LEAK CURRENT HiTESTER

ST5540, ST5541 เครื่องวัดกระแสไฟฟ้ารั่ว เพื่อความปลอดภัยจากเครื่องใช้ไฟฟ้าหรืออุปกรณ์อิเล็คทริค ไม่ว่าจะเป็นการวัดค่าความต้านทาน, การทนต่อแรงดันไฟ, ความต้านทานในดิน หรือกระแสไฟฟ้ารั่ว ก็สามารถตรวจจับได้

เครื่องทดสอบกระแสไฟรั่วของ Hioki ได้ผ่านมาตรฐานตามกฎหมายและมาตรฐานที่เกี่ยวข้องกับอุปกรณ์ไฟฟ้าทางการแพทย์รวมถึงอุปกรณ์ไฟฟ้าที่ไม่ใช้สำหรับการแพทย์ และสามารถใช้วัดกระแสไฟฟ้ารั่วในผลิตภัณฑ์ไฟฟ้าทุกประเภทตั้งแต่คอมพิวเตอร์ไปจนถึงอุปกรณ์ทางการแพทย์

Functionality of ST5540

Measurement mode

  • Patient leak current (between parts of device that come into contact with patient and ground)
  • Patient leak current (external SIP/SOP voltage)
  • Patient leak current (external voltage at specific F-type applied part)
  • Patient leak current (current resulting from external voltage at parts of device that come into contact with patients)
  • Patient measurement current
  • Total patient leak current (between parts of device that come into contact with patient and ground)
  • Total patient leak current (external SIP/SOP voltage)
  • Total patient leak current (external voltage at specific F-type applied part)
  • Total patient leak current (current resulting from external voltage at parts of device that come into contact with patient)

Category

  • Medical industry (Japan Association for Clinical Engineering Technologists, etc.)
  • Medical device manufacturers and dealers
  • Medical device repair and maintenance businesses
  • Hospitals

Standard compliance

  • IEC60601-1 (Ed 3.1)
  • IEC60990
  • IEC62353
Functionality of ST5540, ST5541

Measurement mode

  • Contact current (between device enclosure and lines)
  • Contact current (between device enclosure and ground)
  • Contact current (between device enclosure and device enclosure)
  • Ground leak current
  • Free current measurement

Category

  • Public agencies
  • Electric vehicle manufacturers
  • Manufacturers of general electrical devices
  • Household appliance industry
  • Information device industry

Standard compliance

  • Electrical vehicle standards UL 2231-1 and UL 2231-2
  • Electrical Appliances and Materials Safety Act
  • IEC, JIS, and UL standards
Measurement methods Measurement of voltage drop across body simulated resistance points, Calculation and display of current values, True rms measurement, Measurement unit floats relative to instrument ground.
Measurement modes Leak current measurement, voltage measurement, safety conductor current measurement
Leak current measurement Ground leak current, 3 types of contact current, 7 types of patient leak current, patient measurement current, 4 types of total patient leak current, free current measurement, 3 types of enclosure leak current
Measurement current DC, AC (true rms, 0.1 Hz to 1 MHz), AC+DC (true rms, 0.1 Hz to 1 MHz), AC peak (15 Hz to 1 MHz)
Measurement ranges DC / AC / AC+DC mode: 50.00 mA/ 5.000 mA/ 500.0 μA/ 50.00 μA
AC peak mode: 75.0 mA/ 10.00 mA/ 1.000 mA/ 500.0 μA
Measurement accuracy (current measurement) DC measurement: ±2.0% rdg. ±6 dgt. (typ.)
AC / AC+DC measurement: ±2.0% rdg. ±6 dgt. (15 Hz to 100 kHz, typ.)
AC peak measurement: ±2.0% rdg. ±6 dgt. (15 Hz to 10 kHz, typ.)
Interfaces External I/O, medical device relay output, USB 1.1 (communications), RS-232C
Functionality 110% voltage application, automatic test, data storage for 100 target devices, clock, data backup, printed output (optional), etc.
Power supply 100/120/220/240 V AC (specify at time of order), 50/60 Hz, 30 VA rated power
Target device power supply input 100 to 250 V AC, 50/60 Hz Rated current input from terminal block: 20 A
Target device power supply output Output from terminal block: 20 A Output from outlet: 15 A
Dimensions and mass 320 mm (12.60 in)W × 110 mm (4.33 in)H × 253 mm (9.96 in)D, 4.5 kg (158.7 oz)
SKUST5541
Weight4500.000000
ขนาด320 × 110 × 253mm
ผู้ผลิตHioki
บันทึกข้อมูลไม่
Resolution No
Measurement RangeDC / AC / AC+DC mode: 50.00 mA/ 5.000 mA/ 500.0 μA/ 50.00 μA
AC peak mode: 75.0 mA/ 10.00 mA/ 1.000 mA/ 500.0 μA
ฟังก์ชั่น110% voltage application, automatic test, data storage for 100 target devices, clock, data backup, printed output (optional), etc.
Power Supply100/120/220/240 V AC (specify at time of order), 50/60 Hz, 30 VA rated power
ระดับการป้องกันNo
Sensor Output InterfaceNo
AccuracyNo
คะแนนของคุณ

Accessories Included:

  • Test lead L2200 (for ST5540, Red ×2, Black ×1) ×1 set
  • Enclosure probe 9195 ×1
  • Power cord ×3
  • Spare fuse for measurement line ×1
  • Instruction manual ×1
  • User guide ×1
  • CD-ROM ×1

Options:

  • ENCLOSURE PROBE 9195
  • TEST LEAD L2200
  • AC ADAPTER 9443-02
  • CONNECTION CABLE 9444
  • PRINTER 9442
  • RECORDING PAPER 1196
  • RS-232C CABLE 9637
