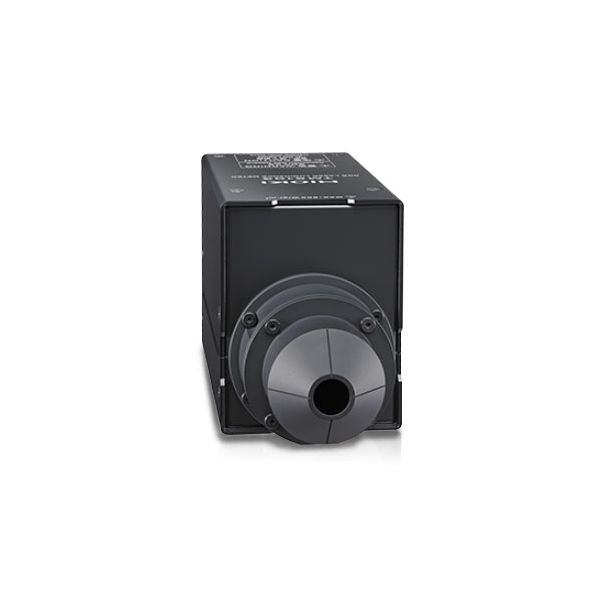

HIOKI TM6103 เครื่องวัดแสงเลเซอร์ RGB LASER LUMINANCE

SKU
TM6103
สินค้าหมด

เครื่องวัดแสงเลเซอร์ RGB LASER LUMINANCE METER
มีให้เลือกทั้งหมดสามรุ่น รองรับการใช้งานดังนี้
TM6102 Illuminance: 0.2 to 110 000 [lx]
TM6103 Luminance: 2 to 300 000 [cd/m² ]
TM6104 Luminous flux: 10 μlm to 60 lm
รองรับการวัดค่าแบบ 9 จุดได้พร้อมกัน
HIOKI, JAPAN

สินค้าลงทะเบียนโปรดติดต่อฝ่ายขาย

HIOKI TM6103 เครื่องวัดแสงเลเซอร์ RGB LASER LUMINANCE

TM6103RGB LASER LUMINANCE METER เครื่องวัดแสงเลเซอร์ที่จะประเมินความสมดุลแสงสีขาวของจอแสดงผลที่ใช้เลเซอร์ โดยการวัดความยาวคลื่น centroid และพลังงานแสงซึ่งเป็นลักษณะสำคัญในการประเมินแหล่งกำเนิดแสงเลเซอร์ โดยใช้วิธี Discrete Centroid Wavelength ซึ่งเป็นเทคนิคใหม่สำหรับการวัด Centroid wavelength และแหล่งกำเนิดของพลังงานแสงของแสงเลเซอร์โดยตรง แอพพลิเคชั่นรวมถึงกระบวนการที่ออกแบบมาเพื่อปรับและตรวจสอบเลเซอร์ RGB ที่ใช้ในหน้าจอแสดงผลแบบติดตั้งบนยานยนต์และหน้าจอแบบติดตั้งหัวด้วยการวัดความสว่างของแสง, ความยาวคลื่นเซ็นทรอยด์

RGB Laser Measuring Instruments TM6103
RGB LASER LUMINANCE METER
Accuracy guarantee temperature and humidity range Temperature: 23°C ±5°C (73°F ±9°F), Humidity: 80% RH or less (Warm-up: 30 minutes or longer)
Accuracy
Radiometric quantity Relative accuracy ±4.6% rdg. (473 nm, 40 μW)
Standard (532 nm, 60 μW)
±4.6% rdg. (633 nm, 80 μW)
Accuracy ±8% rdg. (532 nm, 3 W/sr m²)
Centroid wavelength Blue ±0.5 nm (435.8 nm mercury lamp)
Green ±0.5 nm (546.1 nm mercury lamp)
Red ±0.5 nm (632.8 nm, 0.1 mW)
Basic Specifications
Radiometric quantity Measurement parameter Radiance
Measurement range 0.002 to 600 [W/sr m²]
Centroid wavelength measurement range Blue 435 nm to 477 nm
Green 505 nm to 550 nm
Red 615 nm to 665 nm
Photometric quantity Measurement parameter Luminance
Measurement range 2 to 300,000 cd/m²
Specified conditions Centroid wavelength: 473 nm, 532 nm, 632.8 nm/RGB radiometric quantity output ratio: Ratio based on D65 chromaticity
If the radiometric quantity is less than 10% of the range full scale, use of centroid wavelength input mode (fixed) is recommended.
Measured field diameter Close contact: Approx. ø12 mm
5 mm: Approx. ø14 mm
10 mm: Approx. ø16 mm
Measured field angle Approx. 22°
Oblique incident light properties
Light receiving diameter
Measurement time 15 ms to 460 ms
Correction function Centroid wavelength input mode, centroid wavelength offset, rediometric quantity gain, chromaticity value xy offset, photometric quantity gain
Dark measurement Judgment of dark measurement result, averaging, dark estimation
Other Measurement parameters Tristimulus values XYZ, chromaticity (xy, u'v'), correlated color temperature, Delta uv, dominat wavelength, NTSC ratio, white balance target value of radiometric quantity
White balance adjustment support functions Parameters: Target value of photometric quantity, tolerance of photometric quantity, target value of chromaticity (x, y), tolerance of chromaticity (x, y)
Modulated light function Modulation frequency setting range: 10 Hz to 300 Hz, Modulation frequency measurement range: 10 Hz to 300 Hz
Interface LAN (TCP/IP)
Compliance standards Safety EN61010 / EMC EN61326
Power requirement AC ADAPTER: Z1008 (100 V AC to 240 V AC, 9.5 VA)
Dimensions / Weight 65 × 83 × 175.7mm / 790g
SKUTM6103
Weight790.000000
ขนาด65 × 83 × 175.7mm
ผู้ผลิตHioki
บันทึกข้อมูลไม่
Solar Power Range0.0002 to 200
UV measurementSolar Power (W/m²)
Switching Lx RangeNo
UV measurement rangeuW/cm^2
Lux measurement range0.2 to 110,000 lx
ฟังก์ชั่นCentroid wavelength input mode, centroid wavelength offset, radiometric quantity gain, chromaticity value xy offset, photometric quantity gain
Power Supply AC ADAPTER: Z1008 (100 V AC to 240 V AC, 9.5 VA)
ความละเอียดการแสดงผล0.01 nm
ระดับการป้องกันNo
Sensor Output InterfaceNo
ค่าความแม่นยำ±6.5% rdg. (532 nm, 9 mW/m²)
คะแนนของคุณ

Accessories Included:

  • AC ADAPTER: Z1008 ×1
  • Power cord ×1
  • Light shielding cap ×1
  • LAN cable (3 m, 9.84 ft length)
  • Instruction manual ×1
  • Application disk CD-R (RGB Laser Utility application program) ×1
