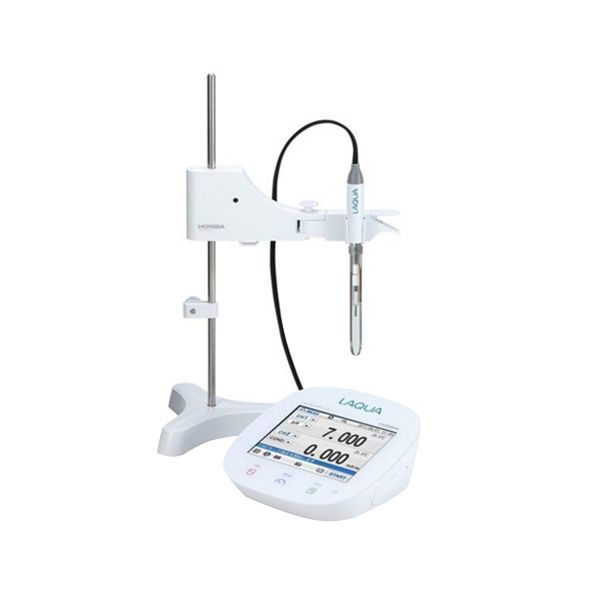

Horiba EC1100 เครื่องวัดค่านำไฟฟ้าแบบตั้งโต๊ะ

Intuitive and easy to use

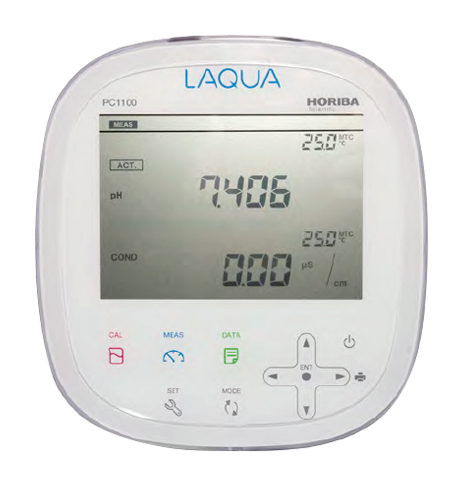

•Soft-touch operation panel

•Scratchproof and chemical-

resistant glasspanel

•Large display – 5.5”

•Small footprint 170x174x73mm

•Protection cover included

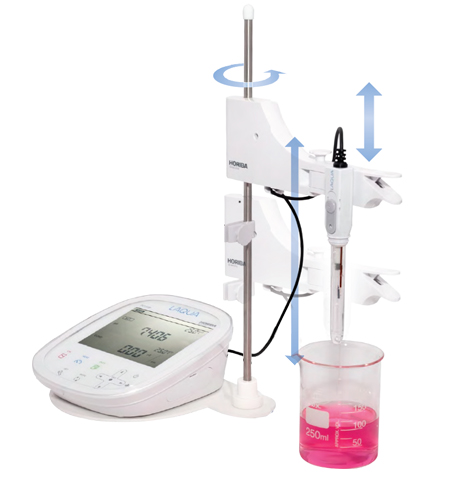

360º Manoeuvrability

•Light-weight electrode stand

can be integrated with meter

or placed separately

•Base of electrode stand can

be used as a convenient

platform for placing beakers

•Arm of electrode stand freely

rotates 360º

•Height-adjust stopper controls

vertical slide of electrode

stand arm

Data management

•Internal memory with

indexed data

•Automatically log measured

values to memory with Auto

Log function

•Input sample ID for easier

sample referencing

(selected models)

•Date/time stamping with

real-time clock

(selected models)

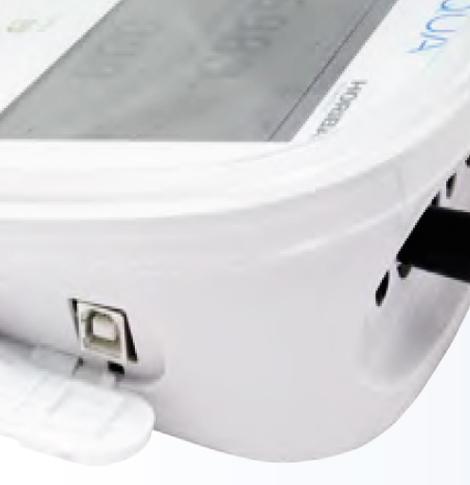

•Output to printer, PC or USB

memory-stick (selected models)

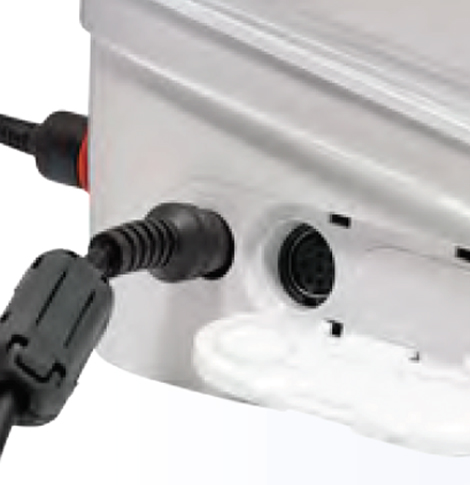

•RS232C or USB

(selecte models) for data

out put

GLP / GMP

•Important information such as

model number, serial number,

calibration data, electrode

condition and

parameters can be printed out

(selected models)

•Date / time stamping of

calibration performed

•Number of calibration points

done and value of calibration

solutions recorded

•Electrode parameters are

captured and printed

(selected modesl)

Horiba-EC1100

EC/ TDS/ Res/ Sal/ Temp (°C)

.. µS/cm to 19.99 µS/cm

.. µS/cm to 1999.0 µS/cm

.. µS/cm to 20.00 mS/cm

.. µS/cm to 200.0 mS/cm

0.01 ppm to 9.99 ppm

0.1 ppm to 999.9 ppm

1 ppm to 10.00 ppt

10 ppm to 100.0 ppt

0.000 Ω/cm to 20.000 Ω/cm

0.00 Ω/cm to 200.0 MΩ/cm

0.00 to 10.00 %

Resolution

Yes (programmable: 1 to 30 mins)
