Lutron CWF-3300 AC แคลมป์เพาเวอร์มิเตอร์ (3000A) | True RMS

SKU
CWF-3300
฿9,700.00
Pre-Order Item
สินค้าหมด

Lutron CWF-3300 แคลมป์มิเตอร์ 3000 Amp Current
Double insulation coil
รองรับช่วงการวัด : 999.9A/ 3000A
มาตรฐาน IEC 1010, CAT IV 600V.
ระยะแคลมป์กว้างสุด 300mm
ยี่ห้อ Lutron, Taiwan

เพิ่มสินค้าเปรียบเทียบ

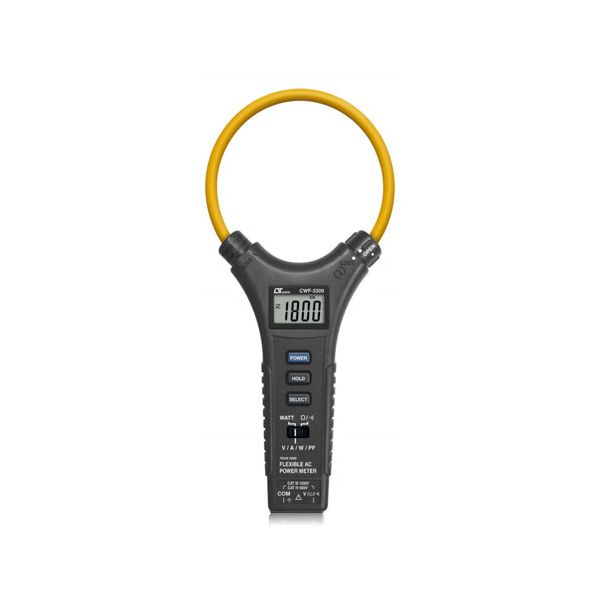

Lutron CWF-3300 Flexible 3000 AC Power Meter | True RMS

AC แคลมป์เพาเวอร์มิเตอร์ วัดค่าไฟ้า AC Current สูงสุดถึง 3000A ระบบ True RMS ให้ผลการวัดที่แม่นยำ ตัวสายคล้องของเซนเซอร์นั้นจะมีขนาดเล็ก เพื่อที่ง่ายต่อการสอดหรือคล้องในที่แคบ รองรับการวัดค่า ACV, ACA, KW , KVA , KVAR , PF, Resistance, Continuity beeper
ยี่ห้อ Lutron

AC Current (True rms)
Range 999.9A/ 3000A
Resolution 0.1A/ 1A
Accuracy ±(1% +8d)   at 1000 A Range
±(1% +10d) at 3000 A Range
AC Voltage (True rms)
Range 10 to 600 V
Resolution 0.1V
Accuracy ±(0.5% +5d) Spec. are tested under 50/60 Hz
Power factor
Range 0.00 to 1.00
Resolution 0.01
Accuracy ±0.04
Active / Apparent / Reactive (W/VA/VAR)
Range 999.9/9.999K/99.99K/999.9K/1800K (W / VA / VAR)
Resolution 0.1 / 0.001K / 0.01K / 0.1K / 1K (W / VA / VAR)
Accuracy ±(1.5% +20d)
* Spec. are tested under 50/60 Hz.
* Spec. are specified under following condition: PF 0.1 to 1.0 , PT = 1, ACV >10V, ACA > 5A
OHMS
Range 20 KΩ
Resolution 0.01 KΩ
Accuracy ±(1.5 % + 5d)
GENERAL SPECIFICATIONS
Display 33.5 mm x18.7 mm LCD display.
A/D counts no. 6000 counts.
Selection Select (ACV, ACA, KW , KVA , KVAR , PF) Function
Data hold To freeze the display reading on the LCD display.
Flexible Cable length 300 mm
Flexible Cable Diameter 8 mm
Power supply DC 1.5 V battery ( UM-4, AAA ) x 2
Power consumption Approx. DC 25 mA.
Dimension/ Weight 290 x135 x 27.8 mm (208g)
SKUCWF-3300
Weight183.000000
ขนาด290 x 138.3 x 26.5mm
ผู้ผลิตLutron
บันทึกข้อมูลไม่
Resolution AC Current (True rms): 0.1A/ 1A
Measurement RangeAC Current (True rms): 999.9A/ 3000A
ฟังก์ชั่น

WATT function can select (ACV, ACA, KW , KVA , KVAR , PF)
Ω function can select (Resistance, Continuity beeper)
Flexible probe length: 300 mm
Data hold
Auto shut off is available to save battery life.

Power SupplyAlkaline Battery AAA x 2
ระดับการป้องกันNo
Sensor Output InterfaceNo
AccuracyAC Current (True rms):
±(1% +8d) at 1000 A Range
±(1% +10d) at 3000 A Range
คะแนนของคุณ

Accessory included

  • Operating Manual x 1
