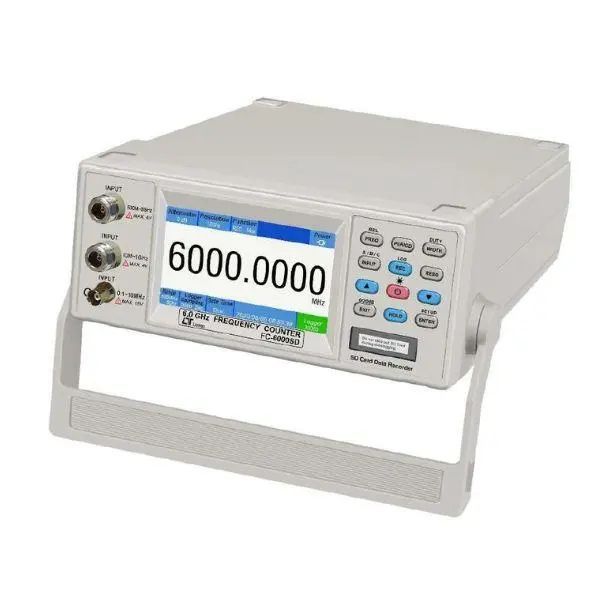

LUTRON FC-6000SD เครื่องวัดความถี่ดิจิตอล

เครื่องวัดความถี่สำหรับ VHF และ UHF เหมาะสำหรับการวัด CB และวิทยุ และมีความละเอียดสำหรับ0.1 Hz สำหรับ 10 MHz, ความละเอียด 10 Hz สำหรับ 1 GHz, ความละเอียด 100 Hz สำหรับ 6 GHz

SPECIFICATIONS

TABLE FOR RESOLUTION & SAMPLE TIME
6000 MHz (6.0 GHz) Range	Gate Time Select : 0.5 SEC,6.5 SEC,4 SEC,2 SEC Resolution : 1000 Hz,100 Hz,200 Hz,500 Hz
1000 MHz (1 GHz) Range	Gate Time Select : 1 SEC,9 SEC,8 SEC,3 SEC Resolution :100 Hz,10 Hz,20 Hz,50 Hz
10 MHz Range	Gate Time Select : 10 Hz,1 Hz,0.2 Hz,0.1 Hz
General & Electrical Specifications
Circuit	4.3 " TFT LCD (480 x 272 Dots)
Measurement	Frequency, Data hold, Relative, Memory (max., minaverage ), Period, Clock Width & Duty
Range	6.0 GHz : 950 MHz to 6000 MHz (INPUT A) 1 GHz : 10 MHz to 1 GHz.(INPUT B) 10 MHz & Period : 10 Hz to 10 MHz(INPUT C) Clock width&Duty : 10 Hz to 100 KHz(INPUT C)
Resolution Sampling Time	Ref. the following "Table for Resolution &Sample Time".
Sensitivity (0 dB Function)	6 GHz : ≦30 mVrms(950 MHz to 6 GHz). 1 GHz : ≦30 mVrms(10 MHz to 1 GHz). 10 MHz & Period : ≦15 mV rms.( 10 Hz to 10 MHz )
Max. functional signal input (Sensitivity set to -20 dBposition)	6 GHz : ≦1 Vrms(950 MHz to 1.5 GHz),≦4 Vrms(1.6 GHz to 6 GHz) 1 GHz : ≦4 V rms 10 MHz ,Period : ≦15 Vrms Clock width & Duty : 3Vpp ~ 5 Vpp
Over-input(Max. signal will not hurt the circuit)	6.0 GHz & 1 GHz range : Max.4 V rms. 10 MHz & Period,Max. 15 Vrms
Time Base Stability vs. Temp.	1 PPM (- 20 to 70℃)
Frequency Accuracy	± (2 PPM reading + 1 d) at 23± 5℃
Width/Duty Accuracy	± (3 % reading + 20d) at 23± 5℃
Time Base circuit	20 MHz, TCXO (temperature compensated crystal oscillator)
Input Connector	6 GHz range : N coaxial connector 1 GHz range : N coaxial connector 10 MHz & Period range : BNC connector
Case	Durable & strong ABS-plastic housing with handle.
Datalogger Sampling Time Setting range	Auto : 1 to 3600 sec @ Sampling time can set to 1 second,but memory data may loss.
Data error no	≦ 0.1 % no. Of total saved data typically.
Memory Card	SD memory card. 1 GB to 256 GB.
Advanced setting	Set clock time (Year/Month/Date,Hour/Minute/ Second ) Set sampling time Auto power OFF management Set beep Sound ON/OFF Decimal point of SD card setting SD memory card Format
Data Hold	Freeze the display reading.
Memory Recall	Maximum & Minimum value.
Sampling Time of Display	Approx. 1 second.
Sampling Time of Display	Approx. 1 second.
Data Output	RS 232/USB PC computer interface. * Connect the optional RS232 cable RS 232 PC serial interface. UPCB-02 will get the RS232 plug. *Connect the optional USB cable USB-01 will get the USB plug.
Operating Temp.	0 to 50 ℃ (32 to 122℉)
Operating Humidity	Less than 80%.
Power Supply	6x 1.5 V AA ( UM-3 ) battery (Alkaline or Heavy Duty) or AC to DC 9V Linear power adapter.
Power Consumption (-20 dB position)	6 GHz : Approx. DC 310 mA 1 GHz : Approx.DC 220 mA. 10 MHz & Period range Approx. DC 150 mA.
AC Adapter Power Input	Optional, Linear AC to 9V DC , 800 mA rating,central positive for socket.
Dimension	295 x 236 x 98 mm (11.6 x 9.3 x 3.9 inch)
Weight	1465 g/3.23 LB (without battery)
Standard Accessories	Instruction Manual
Optional Accessories	PB-21 : Direct probe with BNC connector & alligator clip pairs, available for 10 MHz range BB-22 : Direct probe with double BNC connector, available for 100 MHz & 10 MHz range NN-23 : Direct probe with double N coaxial connector, available for 1000, 6000 MHz range. NB-24 : N coaxial connector to BNC connector adapter. UPCB-02 : Isolated RS232 cable. AC-AA110V9 : Linear AC to 9V DC , 800 mA rating AC-AG220V9 : Linear AC to 9V DC , 800 mA rating
