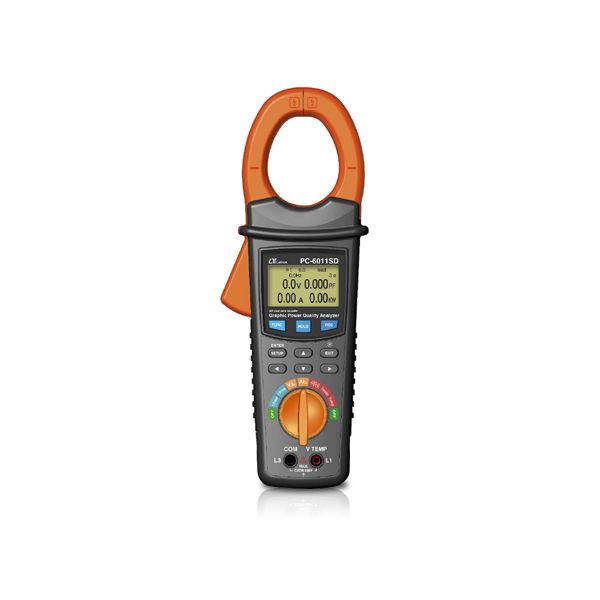

Lutron PC-6011SD เครื่องวัดกระแสไฟฟ้า

Features

ELECTRICAL SPECIFICATION

Measurement	Range	Resolution	Accuracy
ACV	10 to 600 V (RMS)	0.1 V	± (0.5% + 3 d)
ACV	Peak to Peak	0.1 V	± (5% + 30 d)
ACA	10.00 to 2000 A	0.01 A (10.00 to 99.99 A) 0.1 A (100 to 999 A) 1 A (1000 to 2000 A)	± (1% + 0.5 A) ≤ 200 A
	10.00 to 2000 A		± (5% + 5 A) > 200 A
	Peak to Peak		± (5% + 30 d)
Power factor	0.00 to 1.00	0.01	±0.04
Phase angle (Φ)	-180º to 180º	0.1º	±1º ACOS (PF)
Frequency	45 to 65 Hz	0.1 Hz	± 0.1 Hz
Active / Apparent / Reactive Power	0.0 to 1.8 M (W, VA, VAR)	0.001 K to 0.001 M (M, VA, VAR)	± (1.5% + 20 d)
Active / Apparent / Reactive Power Hour: (WH, SH, QH)	0.000 K to 9.9999 M (WH, SH, QH)	0.001 K to 0.001 M (WH, SH, QH)	± (1.5% + 20 d)
Harmonics Magnitude ACV	1 to 20 th	0.1 V	± (2% + 5 d)
Harmonics Magnitude ACV	21 to 50 th	0.1 V	± (4% + 5 d)
Harmonics Magnitude ACA	1 to 20 th	0.1 to 1 A	± (2% + 5 d)
Harmonics Magnitude ACA	21 to 50 th	0.1 to 1 A	± (4% + 5 d)
Harmonics Percentage ACV	1 to 20 th	0.1%	± (2% + 10 d)
Harmonics Percentage ACV	21 to 50 th	0.1%	± (4% + 20 d)
Harmonics Percentage ACA	1 to 20 th	0.1%	± (2% + 10 d)
Harmonics Percentage ACA	21 to 50 th	0.1%	± (4% + 20 d)
Total Harmonic Distortion	0 to 20%	0.1%	± (2% + 5 d)
Total Harmonic Distortion	20.1 to 100%	0.1%	± (6% + 10 d)
Type K Temperature	-100.0 to 199.9ºC	0.1ºC	± (1% + 1ºC)
Type K Temperature	200 to 1300ºC	1ºC	± (1% + 2ºC)

SPECIFICATION

Circuit	Custom single-chip microprocessor LSI circuit
Display	LCD Size: 60 x 44.4 mm (128 x 64 pixels)
Interface	USB, RS232 PC Interface
Data Storage	Micro SD Card 32 GB Maximum supported
Clamp Jaw Dimension	90 mm (Conductor: 57 mm)
Power requirement	Battery AA x 2 or DC 9V adapter
Dimension / Weight	280 x 106 x 47 mm / 620 g

SKU	PC-6011SD
Weight	620.000000
ขนาด	280 x 106 x 47 mm
ผู้ผลิต	Lutron
บันทึกข้อมูล	ไม่
Resolution	Resolution depends on measurement function.
Measurement Range	ACV : 10 - 600 V ACA : 10.00A - 2000A KW / KVA/ KVAR/ PF : 0.0 - 1.8M (W/VA/VAR) KWH/KVAH/KVARH/PFH : 0.0W - 1.8M (W/VA/VAR) Power factor : 0.00 - 1.00 Phase angle : -180° - 180° Frequency : 45 - 65 Hz Harmonics : 1 - 50th Temperature : -100 to 1300°C
ฟังก์ชั่น	No
Power Supply	Battery AA x 2
ระดับการป้องกัน	No
Sensor Output Interface	No
Accuracy	Accuracy depends on measurement function.

Included Accessories:
