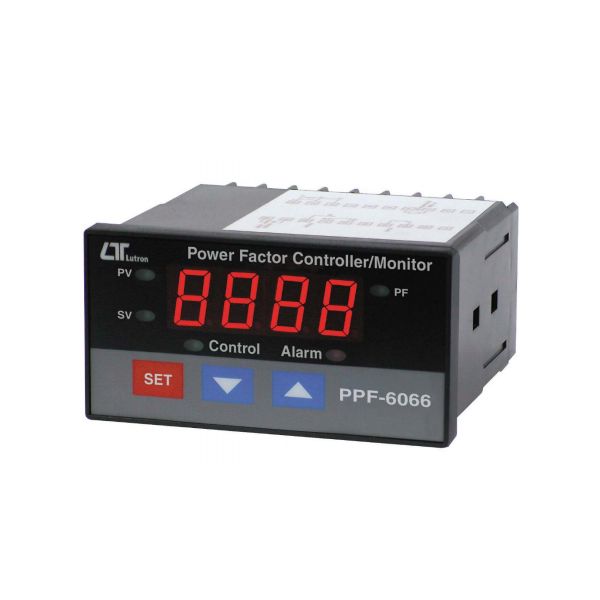

Lutron PPF-6066 เครื่องควบคุม Power Factor แบบตั้งโต๊ะ

Lutron PPF-6066  เครื่องควบคุม Power Factor แบบตั้งโต๊ะ

Display 4 digits red LED ขนาด 14 mm, 5 indicator : PV (process calue) indicator,SV (Set value) indicator,Control out indicator,Alarm out indicator,PF indicator
Professinal power factor meter with standard DIN case (Size : 96 x 48 mm) and Control/ Alarm function.

Measurement range

• Power factor Range : 0.10 to 1.00 PF
• Resolution : 0.01 PF
• Accuracy : ±(1.5% + 2 d) reading

Input signal *w/o PT. CT.

• ACV : 0 to 600 ACV, 40 to 400 Hz
• ACA : 0 to 10 A, 40 to 400 Hz

2 Relays Output

• Relay 1 : Control relay
• Relay 2 : Hight/ Low alarm relay

Zero adustment : Automatic
Data output : RS232/ USB computer interface
Power : 90 ACV to 264 ACV, 50/ 60 Hz
Dimension :  DIN Size 92 x 46 mm (Depth 110 mm)/ Weight : 261 g

Accessories Included :

• Instruction manual x 1
• Case holder with screw x 2

Optional Accessories :

• USB cable, USB-01
• RS232 cable, UPCB-02
• Data Acquisition software, SW-U801-WIN
