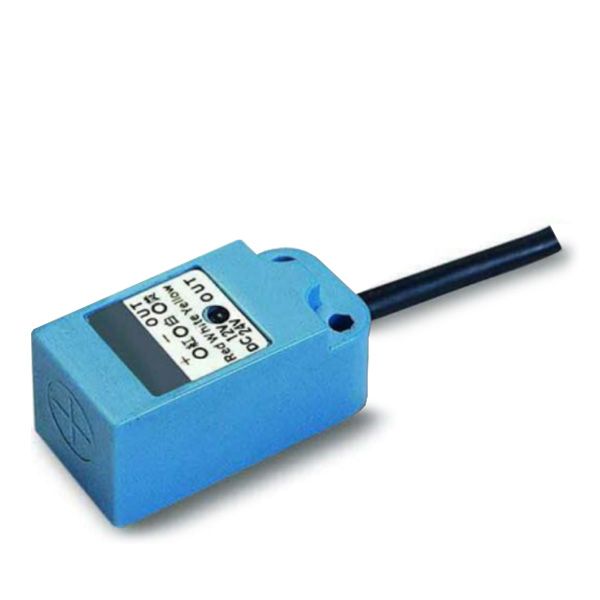

Lutron PX-01 RPM transmitter

SKU

PX-01

฿1,400.00

Out of Stock Now

สินค้าหมด

■ Lutron PX-01 RPM transmitter
อุปกรณ์เสริมสำหรับเครื่องควบคุม Panel Tachometer (DT-2240D)
ยี่ห้อ Lutron, Taiwan

Lutron PX-01 RPM Transmitter

อุปกรณ์สำหรับวัด DT-2240D เครื่องควบคุม Panel Tachometer

Specifications

Output Method	PNP, NO (normal open)
Sensing Direction	Vertical
Sensing Distance	4 mm
Operating Voltage	10-30 VDC
Standard Sensing Object	Iron 18 x 18 x 1 mm
Current Consumption	8 mA, no load
Response Frequency	600 Hz
Output Current	max. 250 mA
Leakage Current	1.1 mA
Residual Voltage	0.9 VDC
Operating Temp.	-20℃ to 70℃
Operating Humidity	35 to 95%RH
Wire Dimension	4.7 mm Dia. x 2 m x 3 cores
Application	• Sensor for DT-2240D Panel Tachometer • Position Detector
