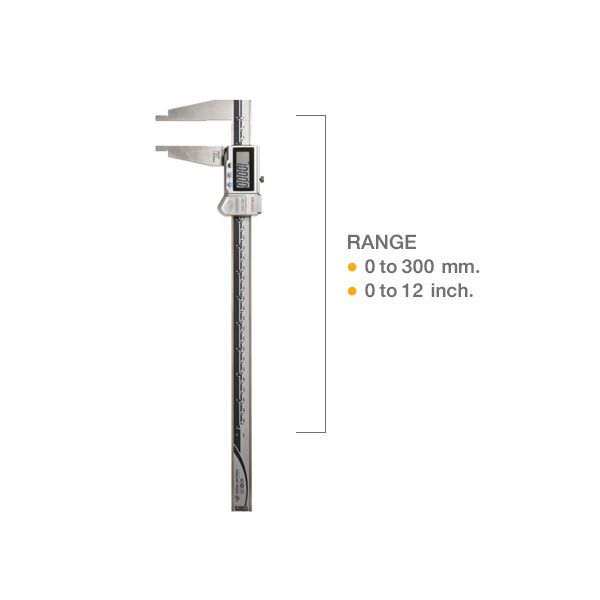

Mitutoyo M-550-331-10 ABSOLUTE Digimatic Caliper เครื่องวัดคาลิเปอร์แบบดิจิตอล (0 - 300mm)

SKU
M-550-331-10
สินค้าหมด

M-550-331-10 Digimatic Caliper with Nib Style Jaws
ช่วงการวัด 0 ถึง 300mm
IP67
ตัวหนีบหน้าแบบปลายโค้งมนเหมาะสำหรับวัดขนาดภายใน
หน้าจอ LCD
แบตเตอรี่ SR44 (อายุการใช้งานแบตเตอรี่ 3.5 ปี)
ยี่ห้อ Mitutoyo, Japan

Mitutoyo M-550-331-10 ABSOLUTE Digimatic Caliper เครื่องวัดคาลิเปอร์แบบดิจิตอล

ตัวหนีบหน้าแบบปลายโค้งมนเหมาะสำหรับวัดขนาดภายใน
ช่วงการวัด 0 ถึง 300mm
IP67
Accuracy Excluding quantizing error
หน้าจอ LCD
แบตเตอรี่ SR44 (อายุการใช้งานแบตเตอรี่ 3.5 ปี)
ยี่ห้อ Mitutoyo, Japan

ฟังก์ชั่น

  • Origin-Set
  • Zero-Set
  • power on/off
  • inch/mm conversion (inch/mm type only)
  • SPC data output
  • data hold (optional)
  • offset
  • preset
  • แจ้งเตือนสถานะแบตเตอรี่
  • scale contamination
  • counting value

Dimention Mitutoyo M-550 ABSOLUTE Digimatic Series with Nib Style Jaws

Dimention and mass Range L a b c

M-550_Digimatic_Caliper_Series

0 - 200 mm 288 60 8 16
0 - 300 mm 403 75 12 20
0 - 450 mm 630 100 18 25
0 - 600 mm 780 100 18 25
0 - 1000 mm 1240 140 24 32



Specifications Mitutoyo M-550 ABSOLUTE Digimatic Series with Nib Style Jaws

Model Range* Resolution Accuracy Remarks
Metric
M-550-301-10 0 - 200mm (10.1 - 210mm) 0.01mm ±0.03mm IP67
M-550-331-10 0 - 300mm (10.1 - 310mm) 0.01mm ±0.03mm IP67, with offset/preset function for easy inside measurement
M-550-203-10 0 - 450mm (20.1 - 470mm) 0.01mm ±0.05mm
M-550-205-10 0 - 600mm (20.1 - 620mm) 0.01mm ±0.05mm
M-550-207-10 0 - 1000mm (20.1 - 1020mm) 0.01mm ±0.07mm
Inch/Metric
M-550-311-10 0 - 8" (.404" - 8.4") .0005"/0.01mm ±.0015" IP67
M-550-341-10 0 - 12" (.404" - 12.4") .0005"/0.01mm ±.002" IP67, with offset/preset function for easy inside measurement
M-550-223-10 0 - 18" (.504" - 18.5") .0005"/0.01mm
M-550-225-10 0 - 24" (.504" - 24.5") .0005"/0.01mm
M-550-227-10 0 - 40" (.504" - 40.2") .0005"/0.01mm ±.003"

*(): Inside measurement
Note: Series 550 is not equipped with a depth bar.

SKUM-550-331-10
Weight0.000000
ขนาด0
ผู้ผลิตMitutoyo
บันทึกข้อมูลไม่
Maximum Range300mm and more
Type of CaliperDigital Caliper
Resolution 0.01mm
Measurement Range0 ถึง 300mm
ฟังก์ชั่น

Origin-Set

Zero-Set

Data Output

inch/mm conversion (inch/mm Model)

Power SupplySR44
ระดับการป้องกันIP67
Sensor Output InterfaceNo
Accuracy±0.04mm
คะแนนของคุณ

อุปกรณ์เสริม (แยกจำหน่าย)

Product No. Product Name
05CZA624 cable with data switch (1m)*
05CZA625 SPC cable with data switch (2m)*
959143 Data hold unit
959149 SPC cable with data switch (1m)
959150 SPC cable with data switch (2m)

*For IP67 models (up to 300mm)
