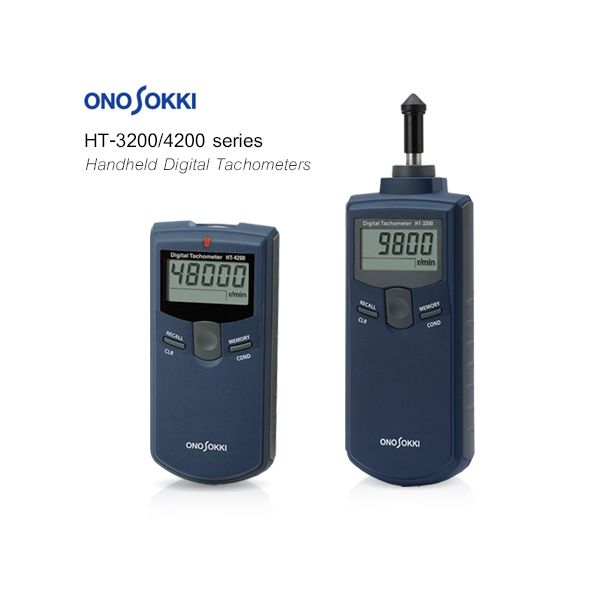

Onosokki HT-3200/4200 Series เครื่องวัดความเร็วรอบแบบพกพา

Rotation speed

• 0.5 to 10,000 r/min
• 0.5 to 2,000.0 r/min (Low)
• 5 to 10,000 r/min (High)

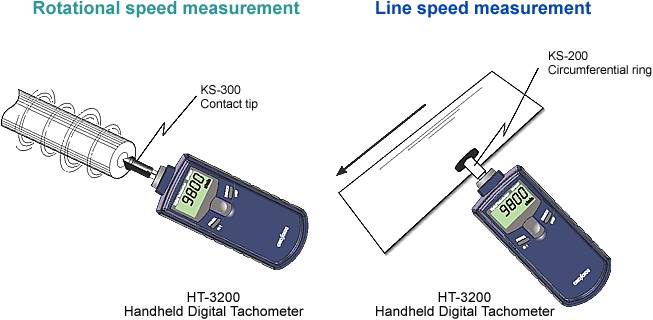

Circumferential speed

• 0.05 to 1,000.0 m/min (KS-200)
• 0.5 to 10,000 mm/s (KS-100)

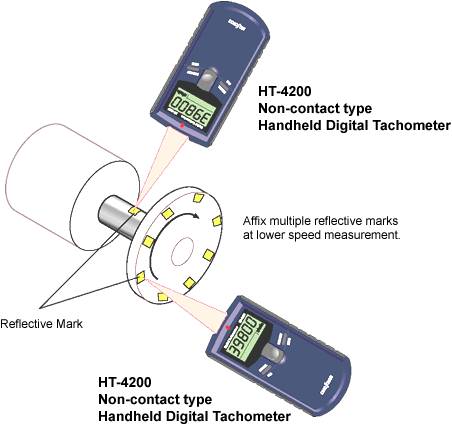

Multiple reflective marks enables measurement of lower rotation speeds.

• 30 to 50,000 r/min (1 reflective mark)
• 15 to 25,000 r/min (2 reflective marks)
• 10 to 16,667 r/min (3 reflective marks)
• 8 to 12,500 r/min (4 reflective marks)
• 5 to 8,333 r/min (6 reflective marks)
• 4 to 6,250 r/min (8 reflective marks)

• ±0.1 r/min (0.5 to 1,249.9 r/min (Low))
• ±0.2 r/min (1,250.0 to 2,000.0 r/min (Low))
• ±1 r/min (5 to 10,000 r/min (High))

• ±1 r/min (30 to 12,499 r/min)
• ±2 r/min (12,500 to 24,999 r/min)
• ±4 r/min (25,000 to 50,000 r/min)
