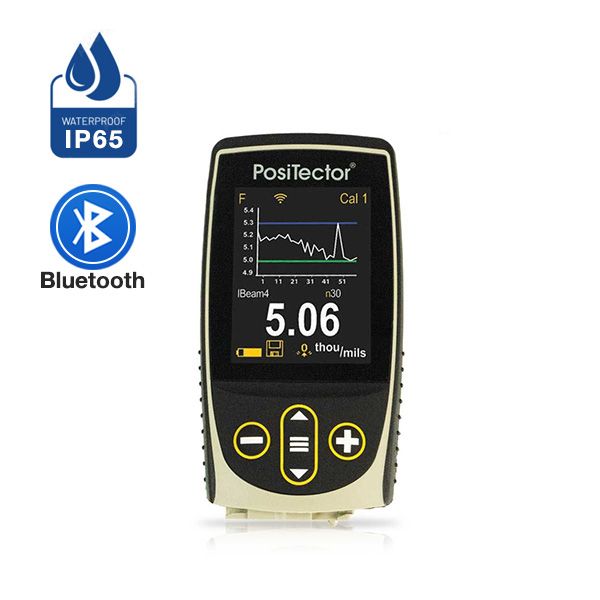

Defelsko PosiTector PT-ADV เครื่องวัดความหนา Advanced | Bluetooth®
หน่วยความจำ 100,000 ข้อมูล รองรับการเชื่อมต่อ Wifi/ Bluetooth wireless ฟังก์ชั่น A-Scan/ B-Scan
Model | PT-STD | PT-ADV |
Picture Body | ![]() |
![]() |
General Features | ||
All features shown on | ✔ | ✔ |

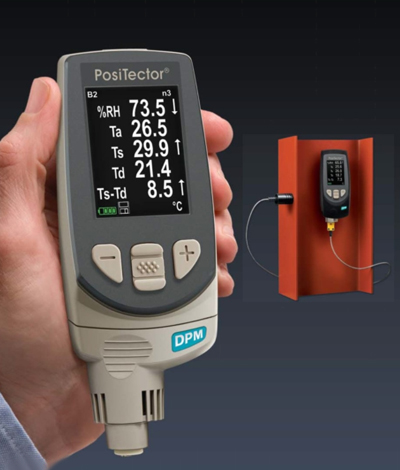

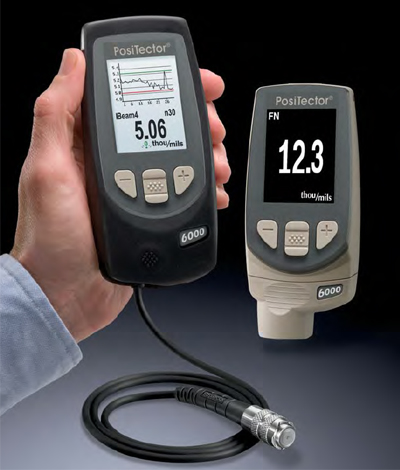

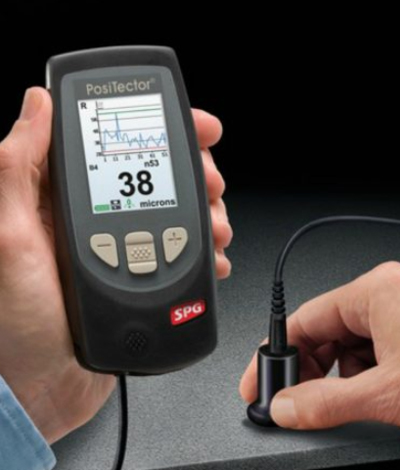

Accepts all coating thickness (6000/200/PC), environmental (DPM), surface profile (RTR/SPG), and ultrasonic wall thickness (UTG) probes. | ✔ | ✔ |
Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits | ✔ | ✔ |
Statistics - Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring | ✔ | ✔ |
Multiple stored calibration adjustments for measuring on a variety of substrate conditions | ✖ | ✔ |
FAST mode - faster measurement speed for quick inspection | ✔ | ✔ |
SCAN mode - take continuous readings without lifting the probe | ✖ | ✔ |
Memory Features & Capacity | ||
Reading Storage Capacity | 250 in one group | 100,000 in up to 1000 groups |
Batch Annotation - Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard. | ✖ | ✔ |
SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels | ✖ | ✔ |
PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings | ✖ | ✔ |

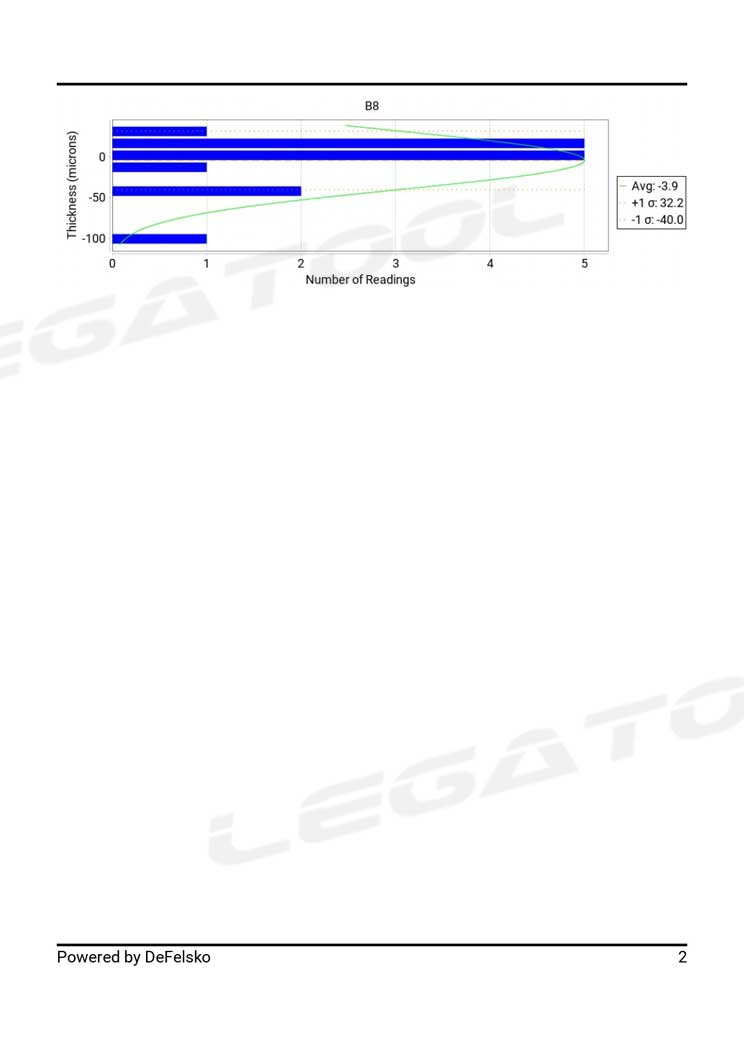

Real time graphing, picture prompting and batch notes | ✖ | ✔ |
PosiSoft Solutions - 4 ways to view and report your data | ||

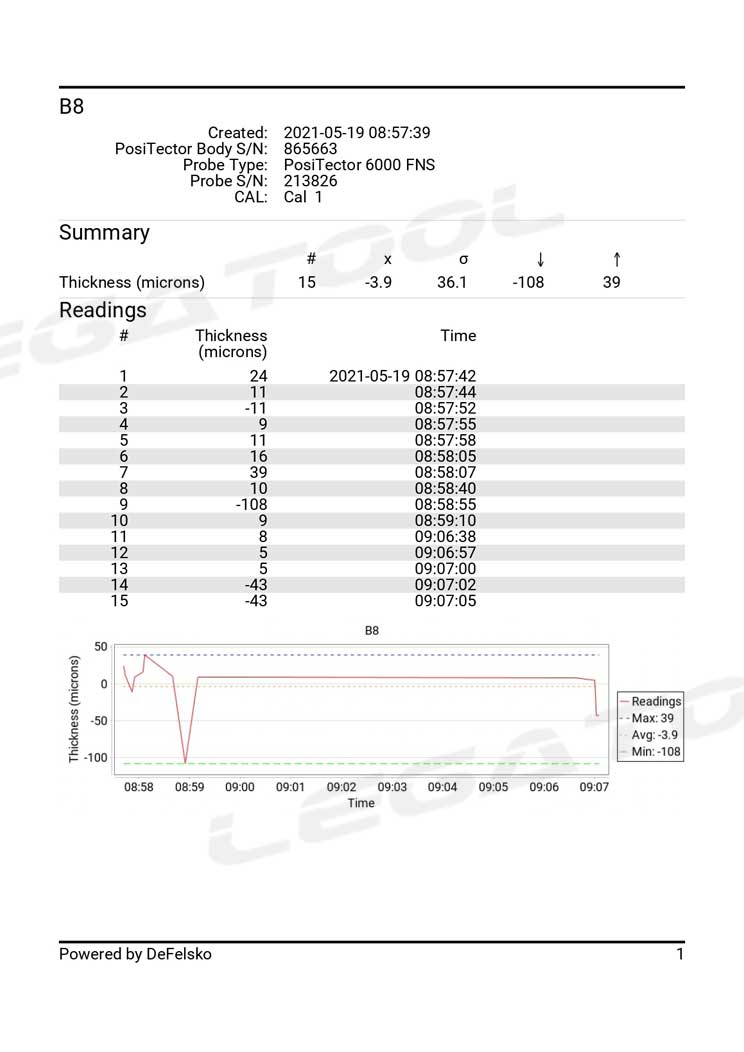

PosiSoft USB Drive - stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required | ✔ | ✔ |
PosiSoft 3.0 - desktop software (PC/Mac) for downloading, viewing, printing and storing measurement data from DeFelsko inspection instruments. No internet connection required. | ✔ | ✔ |
PosiSoft.net - a free web-based application offering secure storage of thickness readings | ✔ | ✔ |

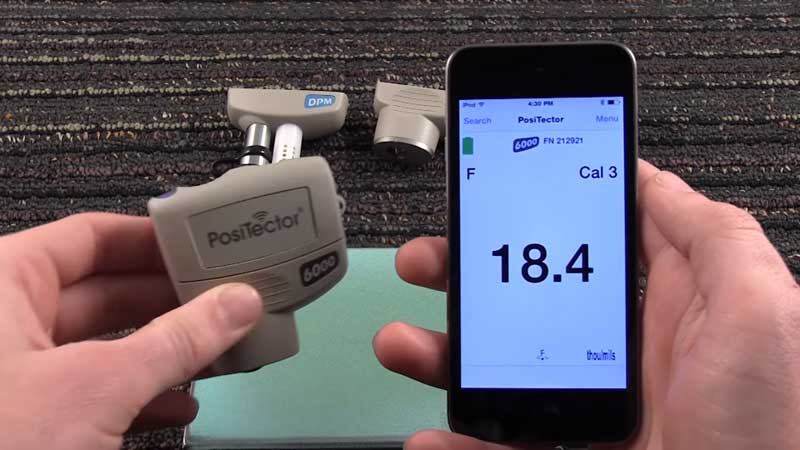

PosiSoft Mobile - gage-based software application allows access to readings, graphs, capture photos and update notations through WiFi enabled devices such as tablets, smart phones and computers | ✖ | ✔ |
Connection Options | ||
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included | ✔ | ✔ |
WiFi technology - allows the PosiTector to connect to a WiFi network to wirelessly synchronizes with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality | ✖ | ✔ |
Wireless Access Point - directly connect your smart device (phone/tablet) or WiFi-enabled computer to a PosiTector Advanced body without the need for WiFi network access or a Mobile Hotspot.Ideal for... ■ importation of stored measurements into PosiSoft 3.0 Desktop software (PC & Mac) wirelessly ■ access to PosiSoft Mobile anywhere wirelessly |
✖ | ✔ |
Bluetooth Wireless Technology for data transfer to a PC or optional portable printer | ✖ | ✔ |



ข้อมูลจำเพาะ
ข้อมูลจำเพาะ
รหัสสินค้า | PT-ADV |
---|---|
ขนาด | 0 |
Weight | 2200.0000 |
ผู้ผลิต | Defelsko |
ดาวน์โหลด
ข้อมูล
วิดีโอ
วิดีโอ
Defelsko PosiTector PT-ADV เครื่องวัดความหนา Advanced (หน้าจอสี) | Bluetooth Product's Video
บทความ
บทความ
แนะนำและอธิบายการสั่งวิธีการ Positector 6000 แบบชุด Set
โพรบและเครื่องวัดความหนาผิวเคลือบ Positector 6000 นั้นโดยปกติส่วนใหญ่แล้ว ตัวเครื่องและโพรบลูกค้าจะนิยมสั่งแยกกัน เพื่อให้ตรงกับความต้องการและวัตถุประสงค์การนำไปใช้งาน หรือขึ้นอยู่ปัจจัยด้านงบประมาณของลูกค้า

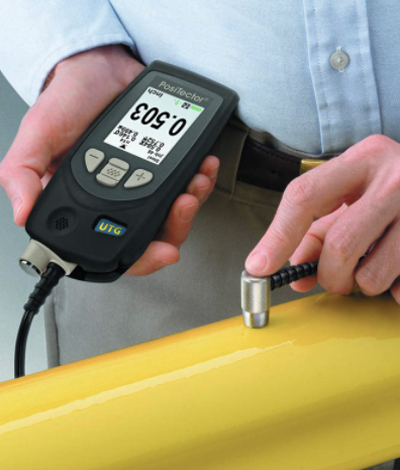

หลักการทำงานของโพรบ Positector UTG M และ UTG C
