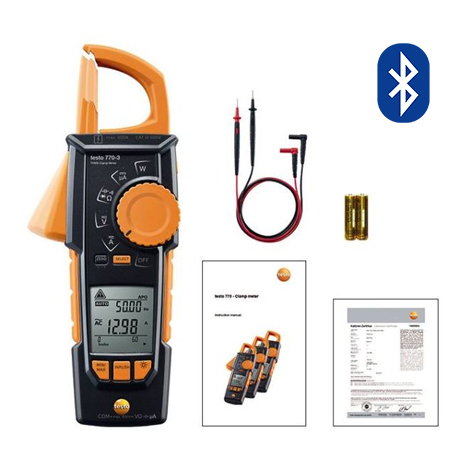

Testo-770 Series แคลมป์มิเตอร์ (TRUE-RMS Cable-Grab)

AC/DC voltage : 1 mV
AC/DC Current : 0.1 μA
Resistance : 0.1 Ohm
Capcitance : 0.01 nF
Active Power : 0.1 W
Reactive Power : 0.1 var
Power Factor : 0.01
Direct current DC Voltage : 0.1 W

Spac For Model : Testo-770-3 only
AC/DC voltage : 1 mV to 600 V
AC/DC Current : 0.1 μA to 600 A
Resistance : 0.1 Ohm to 60.00 MOhm
Capcitance : 0.01 nF
Frequency : 0.01 Hz to 9999 kHz
Power Factor : -1.00 to 1.00

True RMS
Diode test
µA current rangeWatts / Power factor
Continuity
Resistance
Capacitance
Temperature meas.
Frequency
Hold / Min / Max
Bluetooth
CAT IV 600 V / CAT III 1000 V

AC/DC voltage : ± (0.8 % of mv + 3 Digit)
AC/DC Current : ± (2 % of mv + 5 Digit)
Frequency : ± (1.0 % of mv + 1 Digit)
Resistance : ± (1.5 % of mv + 3 Digit)
Capcitance : ± (1.5 % of mv + 5 Digit)
Active Power : ± (5 % of mv + 5 Digit)
Reactive Power : ± (10 % of mv + 5 Digit)
Power Factor : ± (10 % of mv + 5 Digit)
Direct current DC Voltage : ± 1 Digit
