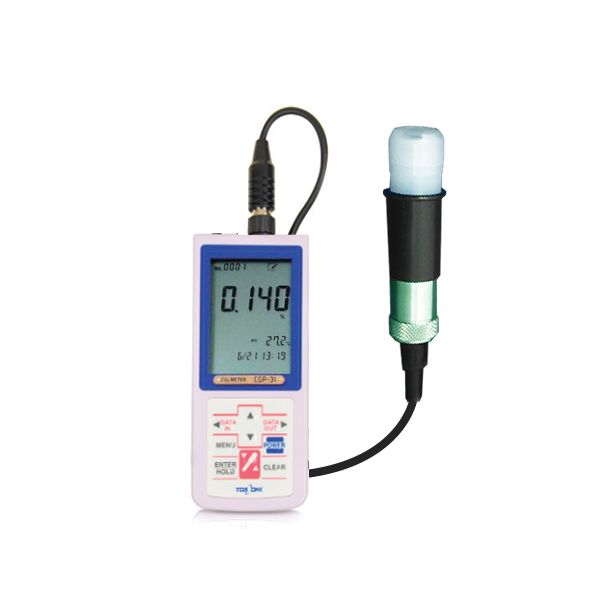

TOA DKK CGP-31 เครื่องวัดก๊าซคาร์บอนไดออกไซด์แบบพกพา

SKU
CGP-31
฿48,000.00
Pre-Order 45-60 days
สินค้าหมด

เครื่องวัดก๊าซคาร์บอนไดออกไซด์แบบพกพา
สามารถวัดค่าได้ทั้งในอากาศและในของเหลว
ช่วงการวัดกว้างตั้งแต่ 0.1 ถึง 100%
บันทึกข้อมูลได้สูงสุดถึง 1000 ข้อมูล
ตัวเครื่องมาตรฐาน IP67 | โพรบ CO2 รวมในชุด

เพิ่มสินค้าเปรียบเทียบ

TOA DKK CGP-31 เครื่องวัดก๊าซคาร์บอนไดออกไซด์แบบพกพา

  • Excellent selectivity : ด้วยหลักการวัดค่า The diaphragm-type glass electrode method ที่จะคอยกรองผลกระทบจากก๊าซอื่น ๆ ที่รวมตัวกัน (ยกเว้น acid gases และ basic gases) ที่สามารถวัดค่าได้ทั้งในของเหลวหรือในอากาศด้วยเซนเซอร์ชนิดพิเศษที่ไม่ได้รับผลจากความชื้นสัมพัทธ์
  • Concentration conversion function : ทำให้สามารถเลือกใช้งานระหว่างค่าความเข้มข้นของก๊าซ (% (v/v)) และ ความเข้นข้นในรูปแบบของเหลว (mg/L)
  • Memory function capable of saving up to 1,000 data items
  • Interface for external devices
Measurement method Diaphragm-type glass electrode method
Measurement range CO2 Liquid phase: 1.49 to 1490 mg/L
Gas phase: 0.1 to 100%
Temperature 5.0 to 50.0ºC
Display range CO2 Liquid phase: 0.000 to 2.020 mg/L, 0.00 to 20.20 mg/L, 0.0 to 202.0 mg/L, 0 to 2020 mg/L
Gas phase: 0.000 to 0.202%, 0.00 to 2.02%, 0.0 to 20.2%, 0 to 202%
Range selection: Automatic, Manual
Temperature -5.0 to 110.0ºC
Repeatability CO2 ± 5% FS or less
Temperature ± 0.5ºC or less
Response time 90% response: Approx 2 minute
Calibration method Two-point calibration using a standard CO2 solutions or standard gases
External output ports RS-232C (non-isolated): Personal computer or external printer EPS-P30 (optional)
Analog output (non-insulated): Three output ports for concentration, temperature, and range
Waterproof construction (meter part) IP67 (enabled when the sensor is connected and on the external I/O ports are masked)
*The meter part can be submerged at a depth of 1 m for up to 30 minutes
Power requirement Battery AA x 2 or AC adapter (optional)
Dimensions/ Weight 68 x 35 x 173 mm/ 280 g
SKUCGP-31
Weight280.000000
ขนาด68 x 35 x 173 mm
ผู้ผลิตTOA DKK
บันทึกข้อมูลได้
ตรวจจับก๊าซคาร์บอนไดออกไซด์
Resolution No
Measurement RangeNo
ฟังก์ชั่นNo
Power SupplyBattery AA x 2
ระดับการป้องกันIP67
Sensor Output InterfaceRS-232
Accuracy± 5% FS
คะแนนของคุณ

Accessories Included:

  • CO2 electrode (ELX-008) length: 1 m
  • Calibration cell (CGC-202L) x 3
  • Powder of CO2 calibration solution (143D044)
  • Ion strength adjuster (143D045)
  • Protection cover with shoulder belt
  • Electrode stand
  • Electrode holder
  • Battery AA x 2
  • Instruction manual
