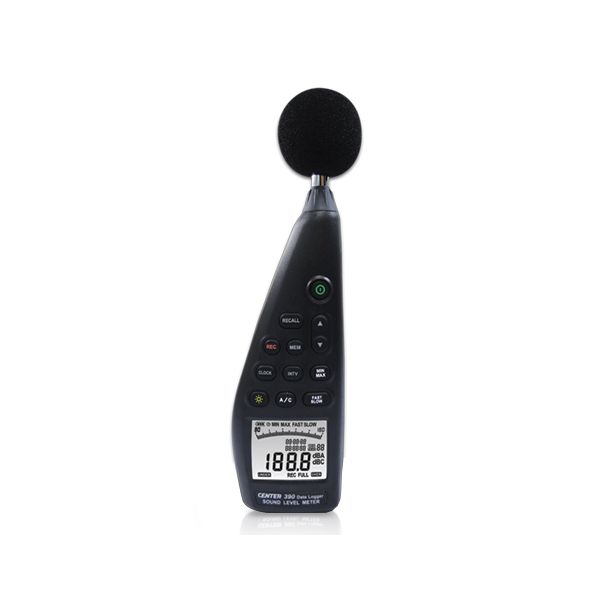

CENTER-390 เครื่องวัดเสียง Sound Level Meter | Class 2

SKU
CENTER-390
฿20,700.00
มีสินค้า

เครื่องวัดเสียง สำหรับวัดระดับความดังของเสียง (Class 2)
ช่วงการวัด 30 ถึง 130 dB | รองรับช่วงความถี่ 20Hz to 8KHz
บันทึกข้อมูล 32,000 ค่า (ดาวน์โหลดข้อมูลด้วยโปรแกรม)
โอนถ่ายข้อมูลไปยังคอมพิวเตอร์ด้วย PC interface
ส่งสัญญาณ Output AC/DC ได้
มาตรฐาน IEC 61672-1 class 2

ยี่ห้อ Center

เพิ่มสินค้าเปรียบเทียบ

CENTER-390 เครื่องวัดเสียง Sound Level Meter | Class 2

เครื่องวัดเสียง สำหรับวัดระดับความดังของเสียง ที่เหมาะสำหรับการใช้งานประจำวัน เช่น การวัดระดับเสียงในสถานบันเทิง, เสียงเครื่องจักร, เสียงจากระบบการเผาไหม้ในโรงงานอุตสาหกรรม หรือแม้แต่เสียงสภาพแวดล้อมต่างๆ หน้าจอเป็น Backlight LCD พร้อม Bar graph display ขนาดใหญ่อ่านค่างายชัดเจน ตัว Microphone ขของตัวเครื่องเป็นแบบ Electret condenser microphone ขนาด 1/2 inch มาตรฐาน IEC 61672-1 class 2
ยี่ห้อ Center

Function

  • 32,000 Records Data Logger
  • Manual Reading Recording Memory (99 points).
  • LCD Recording Readout (99 memory recording).
  • PC Interface. With Windows Software.
  • AC/DC Signal Output.
Measurement Range 30 to 130 dB
Resolution 0.1 dB
Accuracy ±1.4dB (ref 94 dB @ 1KHz)
Frequency Range 20 Hz to 8KHz
Frequency Weighting A/C
Sampling Rate 2 times/sec
Microphone 1/2 inch Electret condenser microphone
Storage Condition -10 to 60℃ (<70%RH)
Battery 1.5V AA size battery x 4 (30 hours)
Dimensions/Weight 272 X 83 X 42 mm./390g
SKUCENTER-390
Weight390.000000
ขนาด272 x 83 x 42 mm
ผู้ผลิตCENTER
บันทึกข้อมูลไม่
Leq Sound LevelNo
Microphone ClassClass 2
Sound Level measurement range30 to 130 dB
ฟังก์ชั่น
  • 32,000 Records Data Logger
  • Manual Reading Recording Memory (99 points).
  • LCD Recording Readout (99 memory recording).
  • PC Interface. With Windows Software.
  • AC/DC Signal Output.
Power SupplyBattery 9V
ความละเอียดการแสดงผล0.1 dB
ระดับการป้องกันNo
Sensor Output InterfaceNo
ค่าความแม่นยำ

±1.4dB (ref 94dB at 1kHz)

คะแนนของคุณ

Included Accessories:

  • Batteries
  • Manual
  • Adjusting screwdriver
  • Windscreen
  • windows software
  • USB Cable
  • ø3.5 plug
  • Carrying Case
