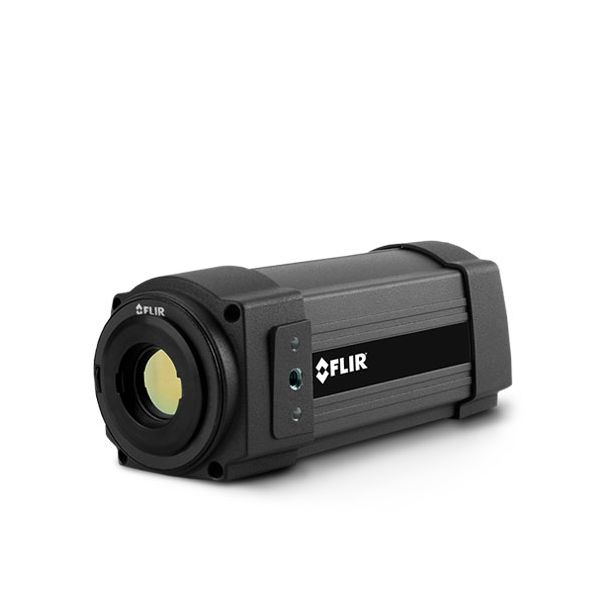

FLIR A315-25 กล้องถ่ายภาพความร้อนแบบติดตั้ง (320×240 pixel)

SKU
FLIR-A315-25
฿423,800.00
Pre-Order Item
สินค้าหมด

กล้องถ่ายภาพความร้อนแบบติดตั้งสำหรับการตรวจสอบ ควมคุมด้วยระบบคอมพิวเตอร์
รองรับการตวรจจับค่าอุณหภูมิที่ -20 to 350°C ความละเอียดภาพ 320×240 (76,800 pixel)
ในชุดมาพร้อม Lens 25° มีมุมมองกว้าง 25°(H) x 18.8°(V) FoV ระบบโฟกัสแบบมอเตอร์อัติโนมัติ
มีฟังก์ชั่นการวิเคราะห์ค่าอุณหภูมิและการแจ้งเตือน, ตรวจจับค่าความแตกต่างของอุณหภูมิที่ 50mK
STREAMING ความถี่สูง สตรีมภาพเต็มเฟรม 16 bit ที่ 60 Hz
ยี่ห้อ FLIR, USA

FLIR A315-25 กล้องถ่ายภาพความร้อนแบบติดตั้ง สำหรับงานตรวจสอบติดตามการเปลี่ยนแปลงของอุณหภูมิ 320×240 (76,800 pixel)

"IR TEMPERATURE SENSOR WITH GIGE (MOTORIZED FOCUS) with 25 degree Lens"

FLIR A315-25 กล้องถ่ายภาพความร้อนแบบติดตั้ง (320×240 pixel)

กล้องถ่ายภาพความร้อนแบบติดตั้งให้ภาพอินฟราเรดคุณภาพสูงความละเอียด 76,800 พิกเซล เหมาะสำหรับการตรวจสอบหรือติดตามการเปลี่ยนแปลงของอุณหภูมิ สามารถดูค่าอุณหภูมิจุดใดก็ได้ในฉาก จึงทำให้สามารถระบุและตรวจสอบวัตถุได้อย่างแน่นอน ออกแบบมาให้สามารถติดตั้งได้เกือบทุกที่เพื่อตรวจสอบอุปกรณ์ที่สำคัญของคุณ จะช่วยให้เห็นปัญหาก่อนที่จะเกิดความเสียหาย เป็นการป้องกัน หยุดทำงานและเพิ่มความปลอดภัยของผู้ปฏิบัติงาน

EXCELLENT IMAGE QUALITY

  • กล้องถ่ายภาพความร้อนมีภาพความร้อนที่คมชัดความละเอียดที่ 320 x 240 pixels และตรวจจับความแตกต่างของค่าอุณหภูมิน้อยสุดที่ 50mK
  • มาพร้อมเลนส์ในตัว 25° พร้อมระบบโฟกัสแบบมอเตอร์
  • ให้ความแม่นยำมากขึ้นและแสดงรายละเอียดเพิ่มเติมในระยะทางที่ไกลขึ้น

GigE VISION™ STANDARD COMPATIBILITY

  • GigE Vision เป็นมาตรฐานอินเตอร์เฟสกล้อง ที่พัฒนาโดยใช้อินเตอร์เฟสในการสื่อสาร Gigabit Ethernet
  • GigE Vision เป็นมาตรฐานแรกในการถ่ายโอนภาพที่รวดเร็ว โดยใช้สายเคเบิลมาตรฐานต้นทุนต่ำแม้ในระยะทางไกล
  • GigE Vision ฮาร์ดแวร์และซอฟต์แวร์รองรับจากผู้จำหน่ายต่างๆ สามารถทำงานร่วมกันได้อย่างราบรื่นผ่านการเชื่อมต่อ GigE connections

GenICam™ PROTOCOL SUPPORT

  • GenICam คือการจัดหาอินเตอร์เฟสโปรแกรมทั่วไปสำหรับกล้องทุกชนิด
  • GenICam ยังทำให้ซอฟต์แวร์ของ บริษัทอื่นสามารถใช้งานร่วมกับตัวกล้องได้

16-BIT TEMPERATURE LINEAR OUTPUT

  • ช่วยให้คุณทำการวัดอุณหภูมิในโหมดไม่สัมผัส ด้วยซอฟต์แวร์ของบริษัทอื่นได้
  • การเชื่อมต่อ Gigabit Ethernet ในตัวช่วยให้สามารถสตรีมภาพแบบ 16 bit แบบเรียลไทม์ไปยังคอมพิวเตอร์

ENVIRONMENTAL HOUSING (FLIR A315)

  • ตัวกล้องมาพร้อม Housing มาตรฐานกันน้ำ/ฝุ่น IP66
FLIR A615-25 กล้องถ่ายภาพความร้อนแบบติดตั้ง สำหรับงานตรวจสอบติดตามการเปลี่ยนแปลงของอุณหภูมิ 640×480 (307,200 pixel)
FLIR A615-25 กล้องถ่ายภาพความร้อนแบบติดตั้ง สำหรับงานตรวจสอบติดตามการเปลี่ยนแปลงของอุณหภูมิ 640×480 (307,200 pixel)
Base Mounting 2 × M4 thread mounting holes (on three sides)
Focal Length 18 mm (0.7 in.)
Housing material Aluminium
IR Resolution 320 × 240 pixels
MEASUREMENT & ANALYSIS
Accuracy ±2°C (±3.6°F) or ±2% of reading
External Optics & Windows Correction Automatic, based on input of optics/window transmission and temperature
Measurement Corrections Global object parameters
Object Temperature Range -20 to 120°C (-4 to 248°F)
0 to 350°C (32 to 662°F)
Optics Transmission Correction Automatic, based on signals from internal sensors
Reflected apparent temperature correction Automatic, based on input of reflected temperature
Thermal Sensitivity/NETD <0.05°C @ +30°C (86°F) / 50 mK
CONNECTIONS & COMMUNICATIONS
Digital I/O connector type 6-pole jackable screw terminal
Digital I/O isolation voltage 500 VRMS
Digital I/O supply voltage 12/24 VDC, max 200 mA
Digital input purpose Image tag (start, stop, general), Image flow ctrl. (Stream on/off), Input ext. device (programmatically read)
Digital Inputs 2 opto-isolated, 10–30 VDC
Digital Output Purpose Output to ext. device (programmatically set)
Digital Outputs 2 opto-isolated, 10–30 VDC, max 100 mA
Ethernet Control and image
Ethernet Communication TCP/IP socket-based FLIR proprietary and GenICam protocol
Ethernet Connector Type RJ-45
Ethernet Image Streaming 16-bit 320 × 240 pixels at 60 Hz
(Signal linear, Temperature linear, Radiometric GigE Vision and GenICam compatible)
Ethernet Protocols TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP
Ethernet Standard IEEE 802.3
Ethernet Type Gigabit Ethernet
USB N/A
USB - Communication N/A
USB - Connector Type N/A
USB - Image Streaming N/A
USB - Protocols N/A
USB - Standard N/A
IMAGING & OPTICAL
Camera size (L x W x H) -
Camera size excl lens (L x W x H) -
Detector Pitch 25 µm
Detector Time Constant Typical 12 ms
f-number 1.3
Focal Plane Array (FPA) - Spectral range Uncooled microbolometer / 7.5–13 µm
Focus Automatic or manual (built in motor)
Image Frequency 60 Hz
Lens Identification Automatic
Field of view [FOV] & Min Focus Distance 25° × 18.8° | 0.4 m (1.31 ft.)
Spatial resolution (IFOV) 01.36 mrad
POWER
External Power Connector Type 2-pole jackable screw terminal
External Power Operation 12/24 VDC, 24 W absolute max
Voltage Allowed range 10–30 VDC
SKUFLIR-A315-25
Weight1200.000000
ขนาด170 × 70 × 70mm
ผู้ผลิตFLIR
บันทึกข้อมูลไม่
Field of View (FOV)25° × 18.8° | 0.4 m (1.31 ft.)
Detector Resolution320×240 (76,800 pixel)
Resolution No
Measurement Range-20 to 120°C (-4 to 248°F)
0 to 350°C (32 to 662°F)
ฟังก์ชั่นEXCELLENT IMAGE QUALITY
GigE VISION™ STANDARD COMPATIBILITY
GenICam™ PROTOCOL SUPPORT
16-BIT TEMPERATURE LINEAR OUTPUT
Power Supply12/24 VDC, 24 W absolute max.
ระดับการป้องกันIP66
Sensor Output InterfaceTCP/IP socket-based FLIR proprietary and GenICam protocol
Accuracy2°C (±3.6°F) or ±2% of reading
คะแนนของคุณ

IR Resolution คืออะไร | Thermal Camera | IR Resolution Meaning

IR Resolution หรือ Thermal Resolution คือจำนวนพิกเซลของกล้องถ่ายภาพความร้อน โดยกล้องถ่ายภาพความร้อนที่มีความละเอียดสูง(High Resolution) ในแต่ละภาพจะมีจำนวนพิกเซลมากตามไปด้วย ยิ่งรายละเอียดของภาพถ่ายมากเท่าไหร่

Accessory (include)

  • Hard transport case or cardboard box
  • Thermal imaging camera with lens
  • Utility CD-ROM
  • Calibration certificate
  • Ethernet™ cable
  • Mains cable
  • Power cable (pig-tailed)
  • Power supply
  • Printed Getting Started Guide
  • Printed Important Information Guide
  • User documentation CD-ROM
  • Warranty extension card or Registration card
  • 6-pole screw terminal (mounted on camera)
