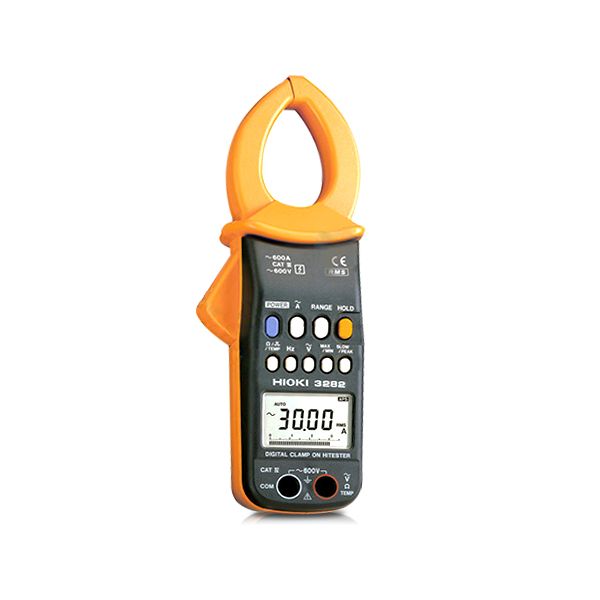

Hioki-3282 แคลมป์มิเตอร์ AC Current 1000A (True RMS)

 -

20.00/ 200.0 A accuracy: ±1.3 % rdg. ±3 dgt.

30.00 to 600A, 3ranges
(40 Hz to 1 kHz, True RMS)

accuracy: ±1.0 % rdg. ±5 dgt.

30.00 to 1000A, 3ranges
(40 Hz to 1 kHz, True RMS)

accuracy: ±1.0 % rdg. ±5 dgt.

10.00 m/ 100.0 m/ 1.000/ 10.00/ 200.0 A, 5ranges (40 Hz to 2 kHz, True RMS)

accuracy: ±1.0 % rdg. ±5 dgt.

Guaranteed accuracy: from 1.00 mA

20.00/ 200.0 A (10 Hz to 2 kHz, True RMS)

accuracy 45-66 Hz: ±1.3 % rdg. ±3 dgt.

 200.0/ 2000 A (10 Hz to 1 kHz, True RMS)

accuracy 45-66 Hz: ±1.3 % rdg. ±3 dgt

-

30.00 to 600 V, 3 ranges
accuracy: ±1.0 % rdg. ±3 dgt.

300.0/ 600 V (40 Hz to 1 kHz, True RMS)
accuracy: ±1.0 % rdg. ±3 dgt.

30.00 to 600 V, 3ranges (10 to 1 kHz, True RMS)
accuracy: 45-66 Hz: ±1.0 % rdg. ±3 dgt

-

DC, or AC 1 V/ f.s.
Level output
Waveform output: DC to 20 kHz bandwidth (±3dB)

30.0 Hz to 1000 Hz accuracy: ±0.3 % rdg. ±1 dgt.

30.0 to 1000 Hz 2 ranges
accuracy: ±0.3 % rdg. ±1 dgt.

1.00 Hz to 1000 Hz accuracy: ±0.3 % rdg. ±1 dgt.

Resistance
Continuity check

1000 Ω/ 10.00 kΩ accuracy: ±1.5% rdg. ±5 dgt.
Continuity: Beep sound at 30 Ω or less

REC output for current: DC 1 V/f.s. (2 V/f.s. at only 200 A range)

response time: less than 200 ms.

MON output for current: AC 1 V/f.s. (2 V/f.s. at only 200 A range)

5 Hz to 15 kHz frequency bandwidth (-3 dB)

■ AC+DC mode
■ Max/ Min/ Average value record function
■ Data hold
■ Peak hold
■ Auto power off
■ Auto zero

■ Test Lead L9207-10 ×1
■ Instruction manual ×1
■ Carrying Case 9399 ×1
■ Hand strap ×1
■ Battery 9V ×1

■ Test Lead L9207-10 ×1
■ Instruction manual ×1
■ Carrying Case 9399 ×1
■ Hand strap ×1
■ Battery 9V ×1
