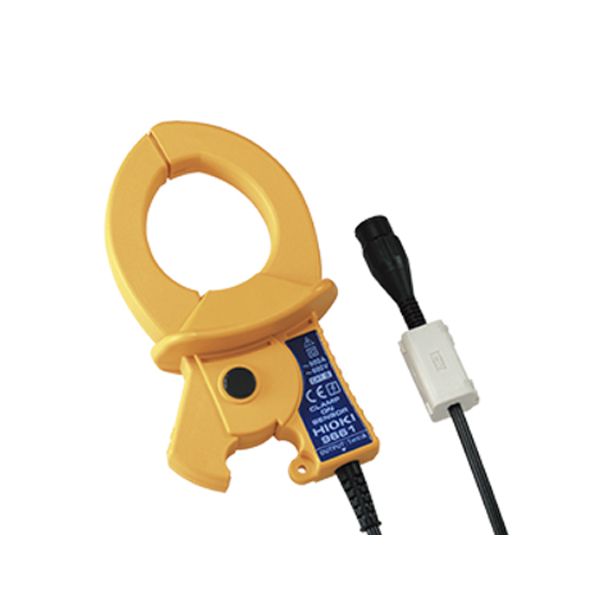

Hioki-9661 Clamp on sensor for Power Analyzer

SKU

HIOKI-9661

มีสินค้า

500A Voltage Output Sensor for Current Load Measurements

ยี่ห้อ HIOKI, Japan

Clamp on sensor for Power Analyzer for PW3198 เซนเซอร์สำหรับเครื่องบันทึกและวิเคราะห์ Power Analyzer สำหรับรุ่น HIOKI-PW3198, HIOKI-PW3198-90

Specifications

Rated input current	AC 500 A
Rated output voltage	AC 500 mV f.s. (AC 1 mV/A)
Amplitude accuracy	±0.3 % rdg. ±0.01 % f.s. (45 - 66 Hz, f.s.= rated primary current)
Phase accuracy	±0.5 ° (at 45 Hz - 5 kHz)
Max. allowable input	Continuous 550 A rms (at 45 - 66 Hz)
Frequency characteristic	40 Hz to 5 kHz: ± 1.0% (deviation from accuracy)
Max. rated voltage to earth	AC 600 V rms (insulated wire)
Core diameter	ø46 mm (1.81 inch)
Dimensions and mass	77 mm (3.03 in) W × 151 mm (5.94 in) H × 42 mm (1.65 in) D, 380 g (13.4 oz), cord length 3 m (9.84 ft)
